(6) Install the blade and rotate the Upper Wheel by hand while turning Lower Adjustment Screw in or out until the
blade runs near the shoulder at the back of the Lower Wheel.
(7) Turn saw on and twist Lower Adjustment Screw until blade runs quiet and almost touches shoulder of Lower
Wheel.
(8) Tighten both Locking Nuts.
Replacing Lower Wheel Bushing~
If it should ever become necessary to replace the Lower Wheel Bushing, proceed as follows:
(1) Remove the Lower Wheel by rst removing the stainless steel collar at the front of the wheel shaft, then pull the
Lower Wheel and all the washers and O-rings off of the shaft.
(2) Wipe the shaft clean and, if necessary, clean up the shaft with steel wool. Lubricate the shaft thinly with Vasoline.
(3) Pull the old bushings out of the Lower Wheel with pliers*.
(4) Push the new bushings into the Lower Wheel so that the bushing ears slip into the notches in the wheel hub. Put
the assembly on the oor and step on it to rmly press the bushings into position.
(5) Push new O-rings into the recesses in each bushing.
(6) Place on shaft:
(a) Lower Wheel (be sure that the front O-ring stays in the recess)
(b) collar
Push the above group of parts tightly against the Lower Shaft Assembly. Tighten the set screw.
Replacement Parts~
Genuine Gryphon Diamond Blades and Blade Guides are available through your dealer. Replacement Sponges are
available in most grocery stores. For other parts or warranty service, contact the factory in Sylmar, California.
Gryphon Corporation.
© 1997 Gryphon Corporation
12417 Foothill Blvd. • Sylmar • California • 91342 • (818) 890-7770

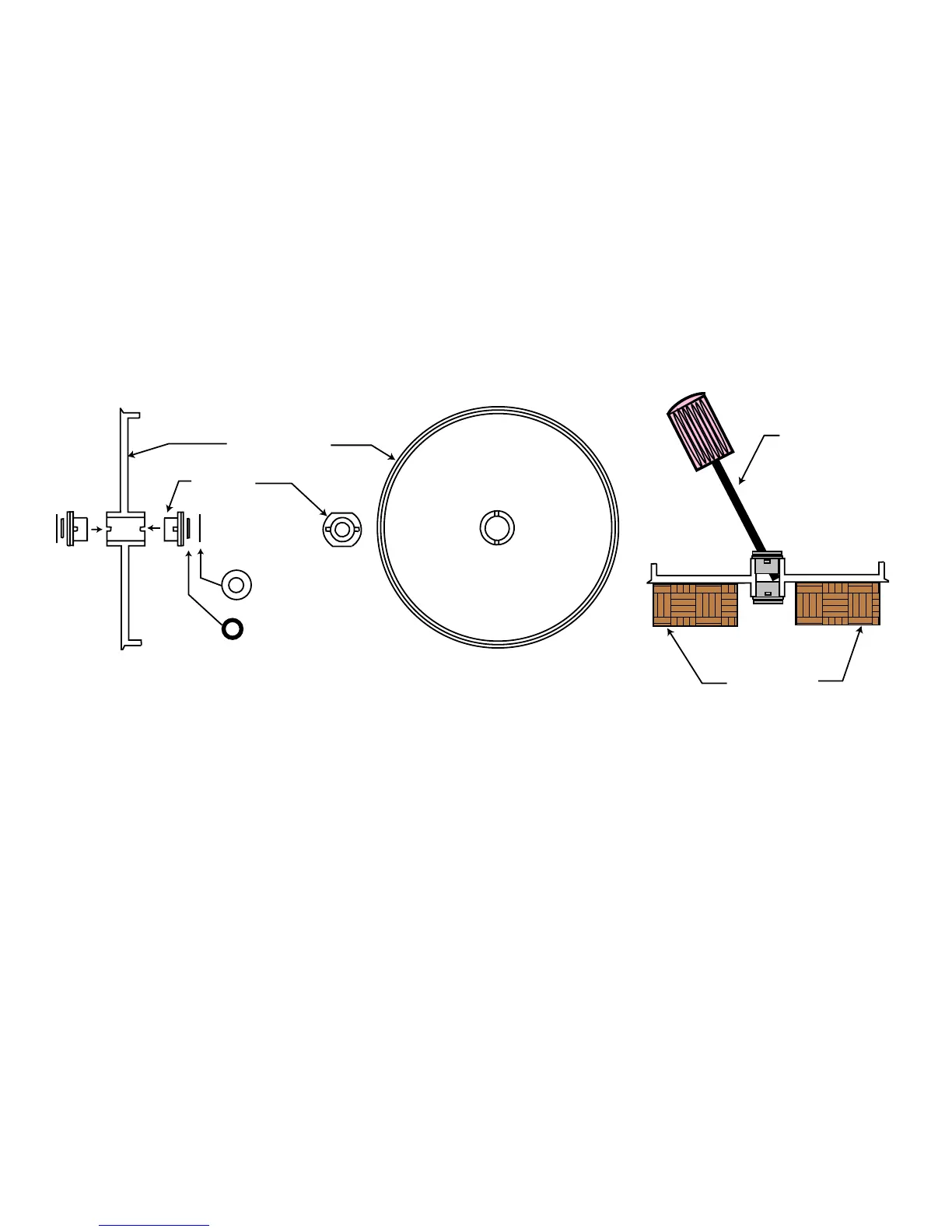

O-ring
Teflon
Washer
Bushing
Lower Wheel
