Instruction GS 1010
GS Engineering B.V.
manufacturer hydraulic sweepers
5 Accessories

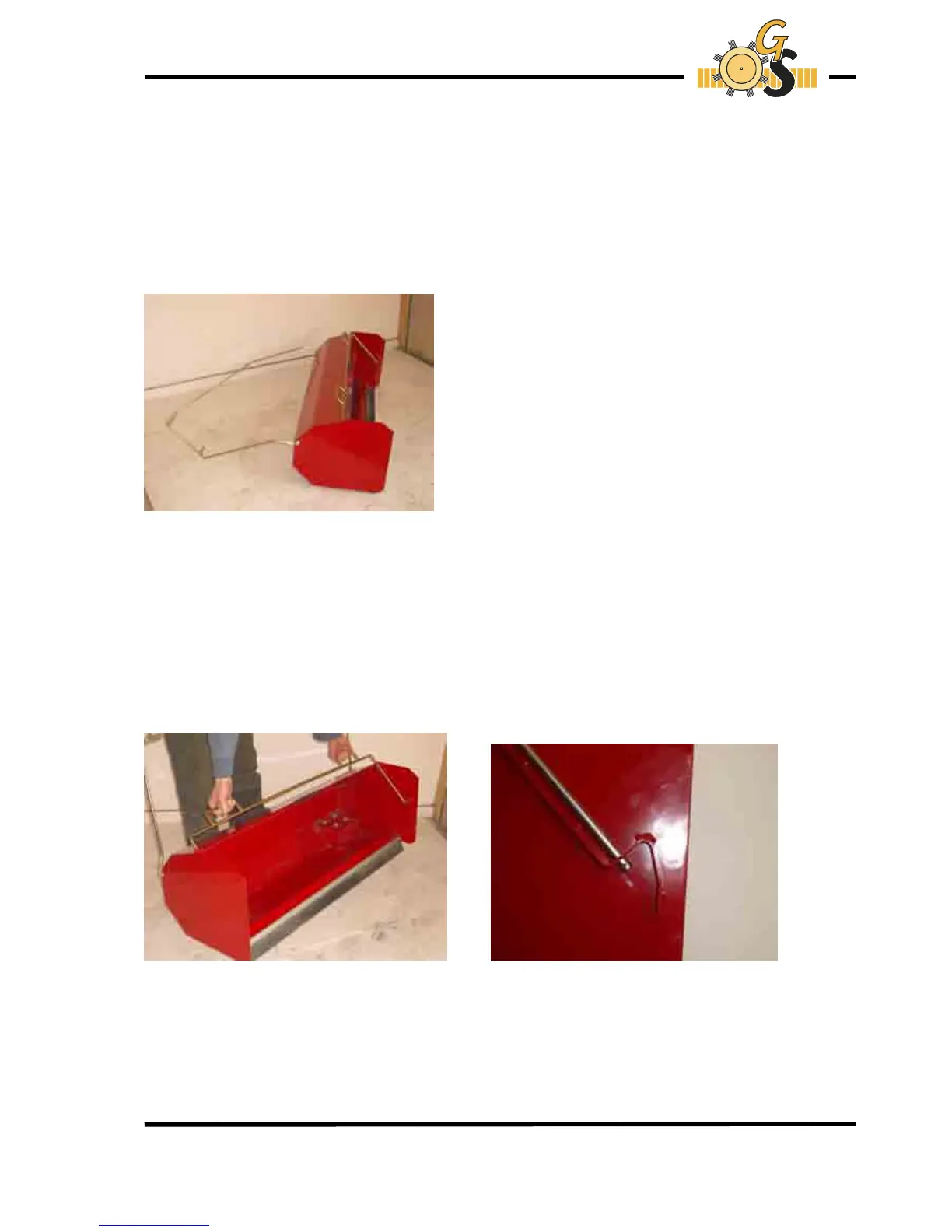

5.1 GS Collector Box
The most commonly used accessory is the GS Collector Box. It is 101 cm wide.
(see Illustration 1)
The GS collector box is not included in the machine; however, you can choose to
order it.
Illustration 1
The machine is equipped with two mounting supports (chrome colour) on both sides
to attach the collector box.
The machine must be switched off when placing the collector box.
Take the following steps to attach the GS collector box to the machine.
1. Take hold of both handles on top of the collector box and pull them out. (see
Illustration 1)
The two bars on the inside will also slide up. (see Illustration 2)
Illustration 1 Illustration 2
