4. Installation
24 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')
3. Open the center gate and push the flighting towards the powerhead end of the U-trough to make

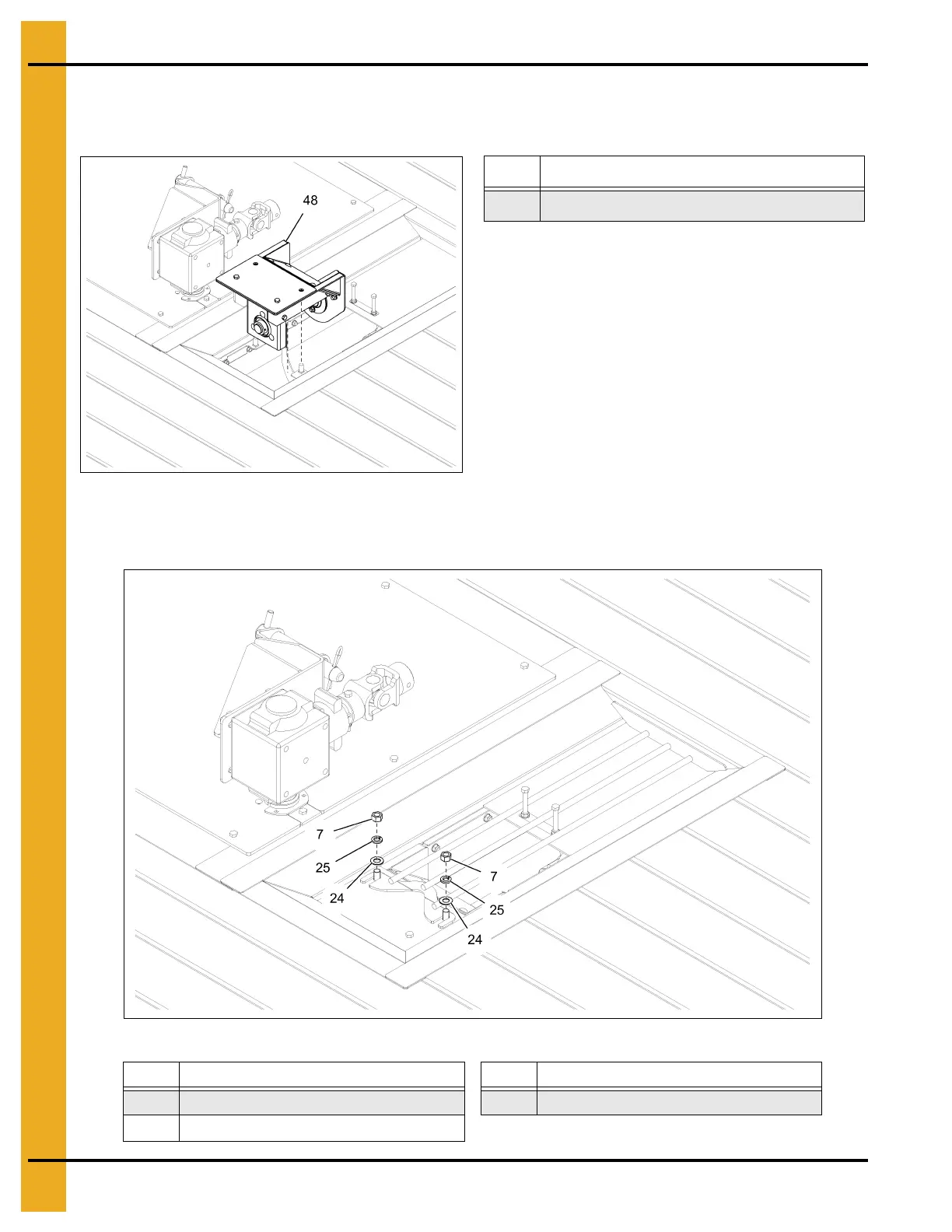

space for steady bearing (48) installation. Drop the UTF Steady Bearing (48) into place in the open
end of the U-trough as shown in Figure 4R.
Figure 4R
4. Place the center floor flange grate over center gate and secure with hardware removed in Step 1
on Page 23.
Figure 4S
Ref # Description
48 UTF Steady Bearing (41UP002)
Ref # Description Ref # Description
7 Nut 25 Lock Washer
24 Flat Washer
