8. Dimensions

52 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')

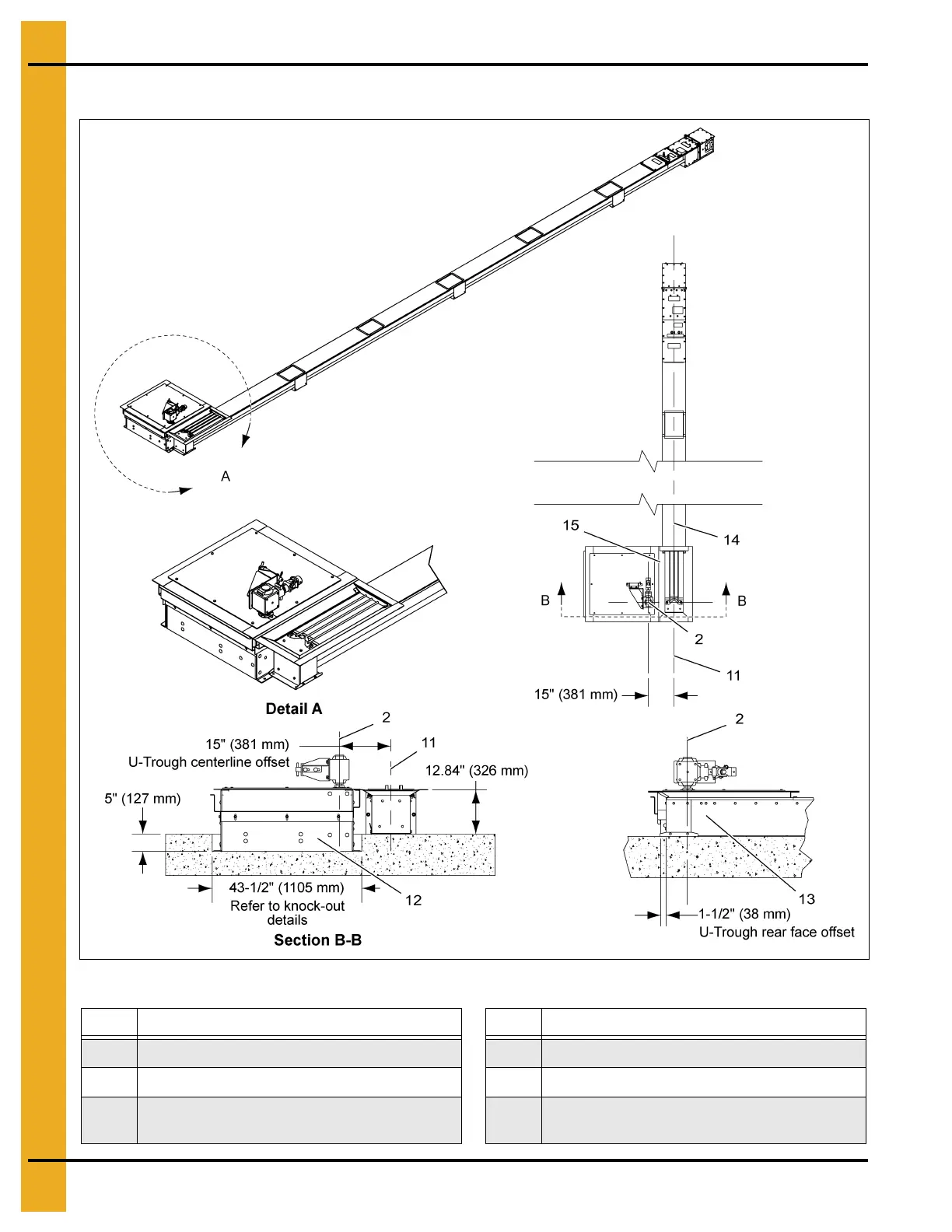

Center Drive and U-Trough Arrangement

Figure 8D

Ref # Description Ref # Description

2 Center of the Bin 13 U-Trough with Drive Behind

11 U-Trough Centerline

14 U-Trough, shown with center floor flange installed

12 Drive installed in 5.0" foundation recess 15

Center floor flange slides under center drive floor

flange. (See Section B-B in Figure 8D.)
