8. Dimensions
56 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')

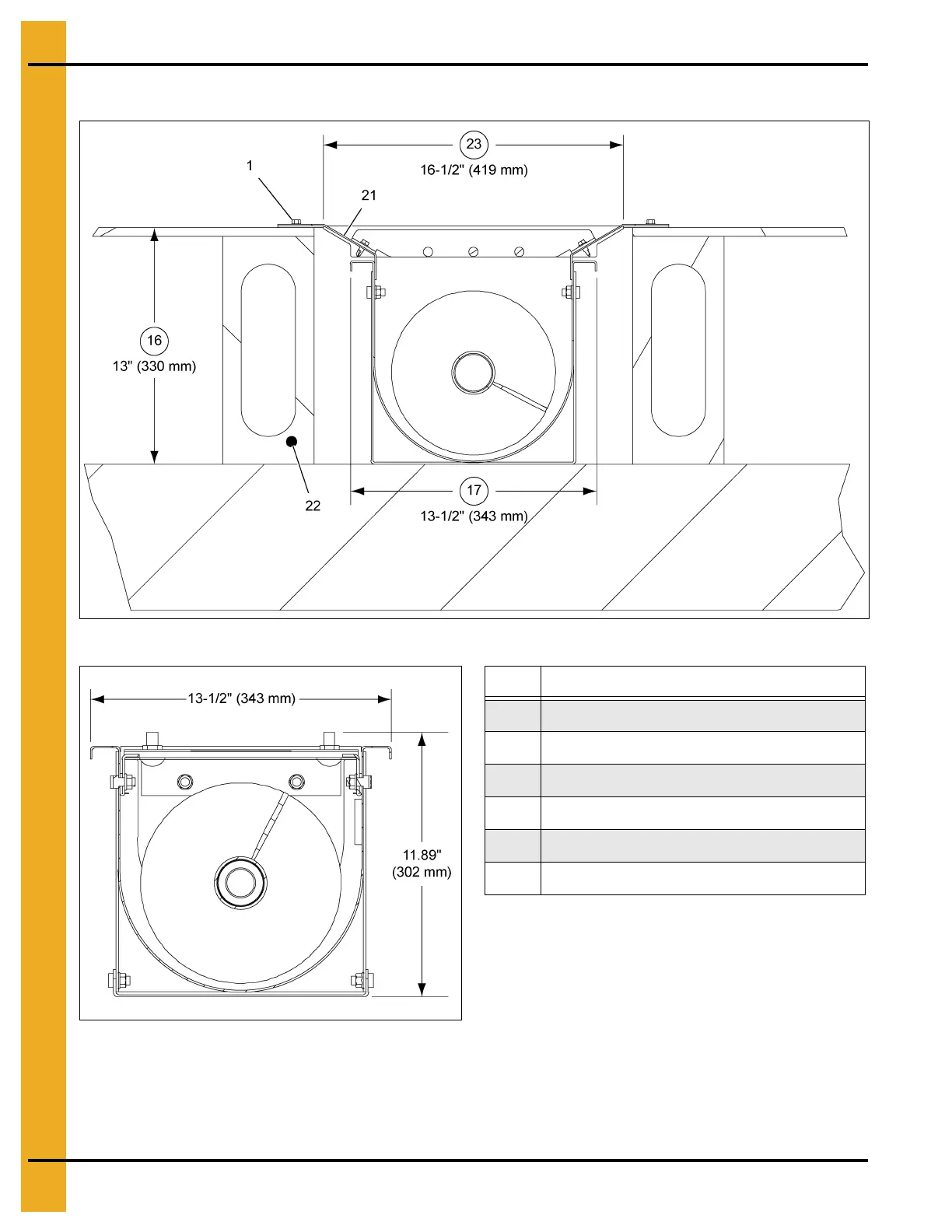

Aeration Floor Cross-Section Through Unloader
Figure 8H Unloader Section View Through Gate
Figure 8I Overall Unloader Dimensions Under Bin
IMPORTANT: It is imperative that the concrete be absolutely level where the unloader is to be positioned.
Failure to do so may cause distortion of the U-trough when the unit is anchored down.
This distortion is likely to cause excessive operational noise from incorrect U-trough
flight clearance.
Ref # Description
1 Self-Tapping Screw
16 Typical Aeration Floor Height
17 Maximum Unloader Width
21 Floor Flange Surface
22 Aeration Floor Support
23 Floor Flange Width
