8. Dimensions
PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 55
Aeration Floor Installation
Gate and drive openings must be added to the aeration floor. Refer to the table on Page 50 to determine
the location of the intermediate gate openings according to the bin size. Then, cut the openings with
dimensions as shown to provide clearance for the floor flanges and center drive.

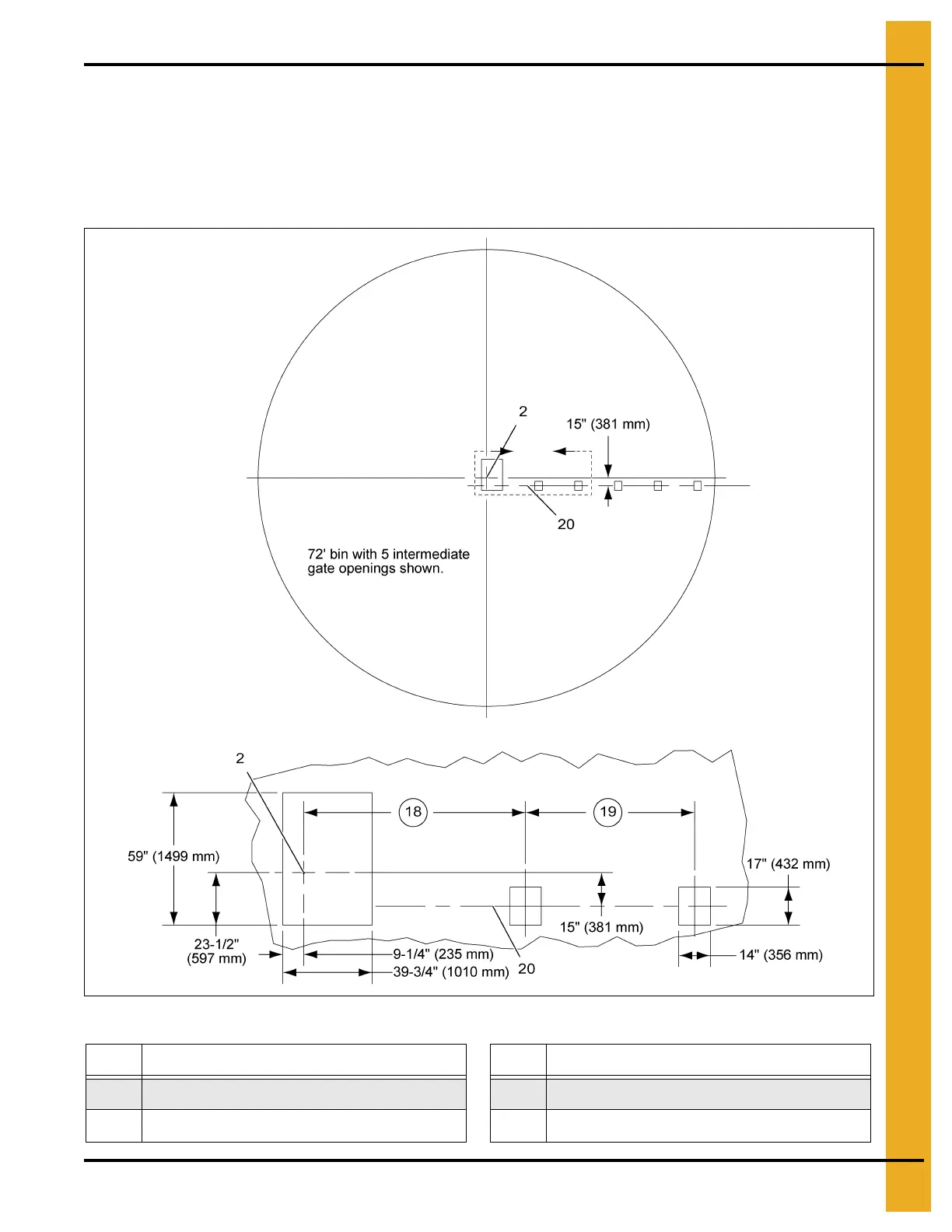

Minimum openings as shown in Figure 8G.
Figure 8G
Ref # Description Ref # Description
2 Center of the Bin 19 Refer to Dimension “G” on Page 50
18 Refer to Dimension “F” on Page 50
20 Unloader Centerline
To Next Page
