without ceiling. In this case, the detector and reflector/s should be
mounted on the walls which are opposite, having about 7m from the
floor and over 0.5m from the top. Refer to Fig. 6.

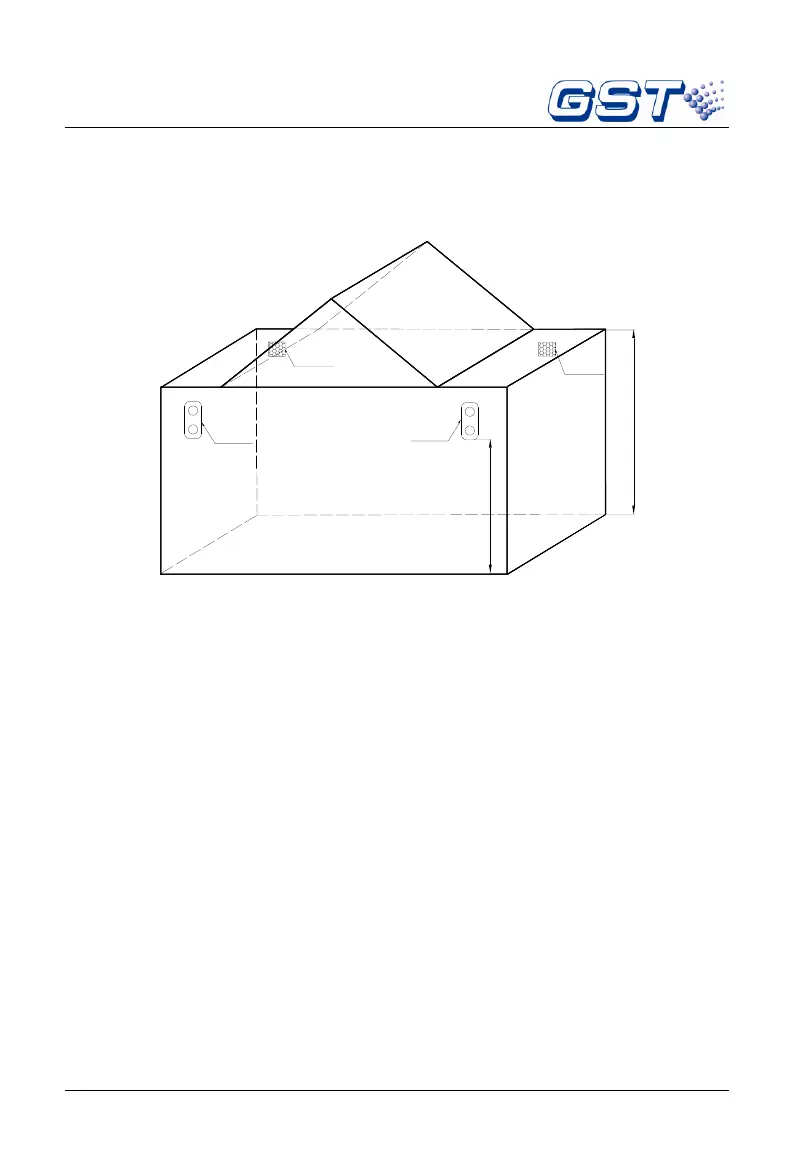

Fig.6
d) As the space height with gable structure is about 8m, the
detector and reflector/s should be mounted on the walls which are
opposite, having about 1.5m from the gabled girder. Refer to Fig. 7.
