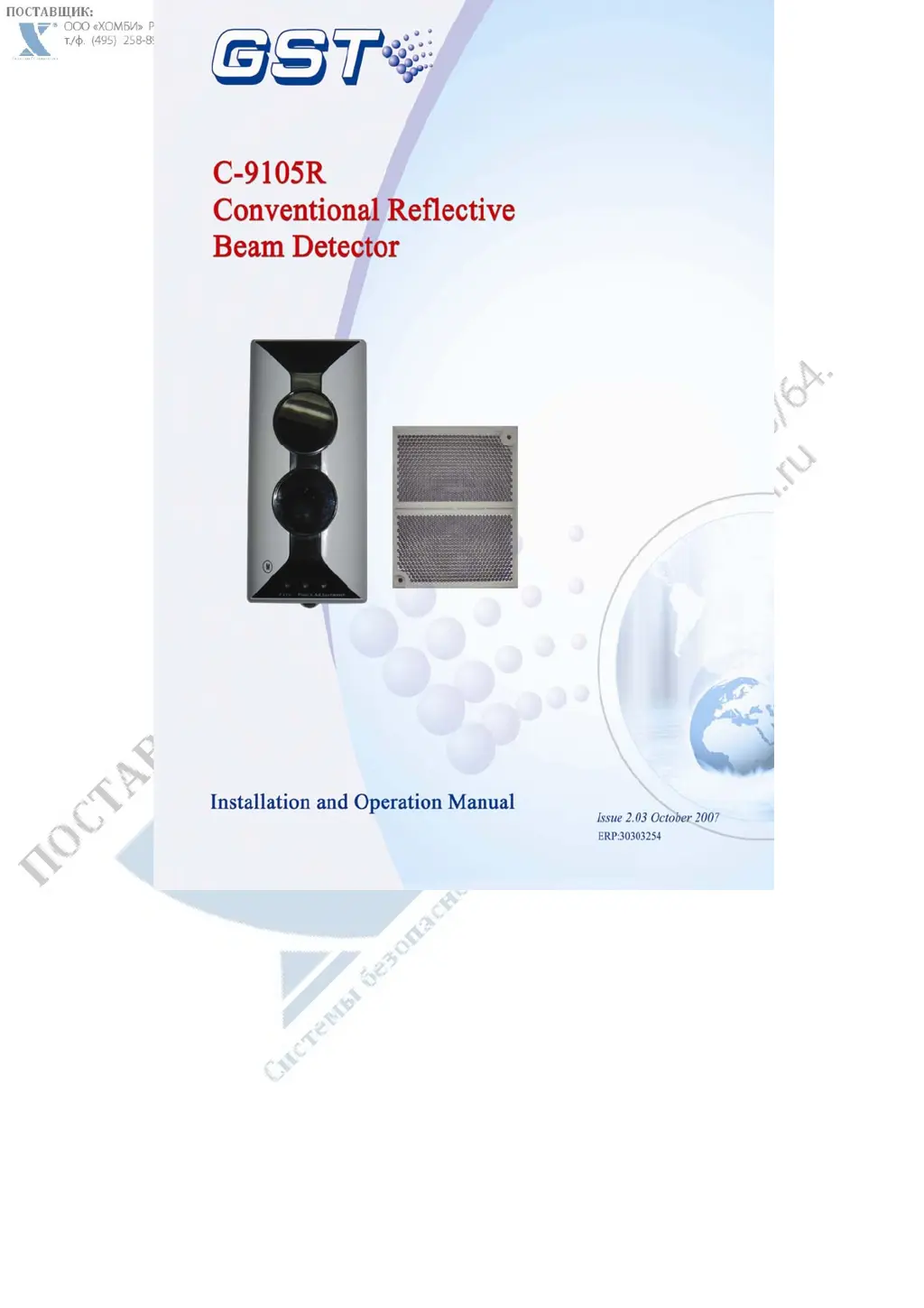

GST C-9105R User Manual (English)

Questions and Answers:

G
Gary SuttonAug 3, 2025
Why fire signal cannot be cleared on GST C-9105R Security Sensors?
- S
  Sean AllenAug 3, 2025
  If the fire signal on your GST Security Sensors cannot be cleared, it might be due to several reasons. There could be obstructions on the optical pathway between the detector and the reflector, or the angle of the optical pathway may have changed and needs realignment. Alternatively, the emitting diode, its circuit, the photodiode, the amplifying circuit, the relay, or the control circuit could be damaged. If the problem is due to obstructions or angle changes, commission the device again. If it's due to damaged components, replace the component with the problem.
D
Daniel PriceAug 7, 2025
What to do if the fault indicator constantly illuminates after powering on GST C-9105R?
- S
  Samantha HernandezAug 8, 2025
  If the fault indicator constantly illuminates after powering on your GST Security Sensors, set the device type 53 or 54 again according to Section VIII Operation.
S
Sarah AcevedoAug 12, 2025
Why GST C-9105R report fire alarm after operation and detector fault after restart?
- M
  madisonbakerAug 13, 2025
  The detector might have deviated due to external vibration. Commission the device once more to resolve this.
C
Chelsea BrooksAug 17, 2025
What to do if GST C-9105R give a fault signal after normal operation?
- A
  adrienne08Aug 17, 2025
  If your GST Security Sensors give a fault signal after a period of normal operation, it could be due to the detector not working normally. Commission the device once more.

GST C-9105R Specifications

General

Brand	GST
Model	C-9105R
Category	Security Sensors
Language	English

Summary

Overview of C-9105R Beam Detector

Key Features and Capabilities

Lists key capabilities like wide operating voltage, microprocessor intelligence, and auto-calibration.

Technical Specifications

Power Voltage and Current Requirements

Details operational voltage range and power consumption in different modes (commission, standby, alarm).

Fire Alarm and Fault Output Interfaces

Describes contact outputs for alarm and fault conditions, including capacity and state.

Adjustment Range and Sensitivity Levels

Specifies the detector's angle of adjusting range and available sensitivity settings.

Detector State Indication via LEDs

Explains the meaning of LED indicators during commission and operation states.

Structure and Operation Principle

Detector External Appearance

Illustrates the external view of the detector, identifying key components like windows and LEDs.

Internal Detector Device Layout

Shows the internal layout, including mounting direction, rotary rack, and cable entry.

Infrared Beam Detection Principle

Explains how the detector works using infrared beam reflection and smoke obscuration.

Mounting and Wiring Guidelines

Ambient Conditions for Installation

Outlines environmental requirements and unsuitable locations for detector mounting.

Mounting Height and Position Recommendations

Provides guidance on optimal height and placement of detectors and reflectors based on space.

Detector Mounting Methods

Details various methods for physically attaching the detector to surfaces like embedding or surface-mount.

Reflector Mounting Procedure

Explains the process of positioning and securing the reflector opposite the detector.

Wiring Connections for Detector

Outlines the procedure for connecting power and signal wires to the detector terminals.

Commissioning Procedures

Step-by-Step Commissioning Process

Outlines the procedure for preparing and performing the detector's initial setup.

Fire Alarm Function Test

Details the method for testing the detector's fire alarm response using an IR filter.

Fault Test Procedure

Describes the procedure to test the detector's fault indication using an IR light filter.

Handling Failed Detectors

Provides guidance on handling detectors that fail during testing, including repair or return.

Important Cautions and Warnings

General Safety and Power-Up Precautions

Lists important safety warnings before powering up and during adjustment.

Mounting Base Stability Requirements

Emphasizes the need for a solid mounting base to prevent vibration-induced issues.

Detector Operation and Configuration

Reading Detector Information

Explains how to retrieve sensitivity level and device type using a handheld programmer.

Setting Detector Sensitivity Level

Details the process of configuring the detector's sensitivity using a programmer.

Setting Detector Device Type

Describes how to set the detector's device type using the handheld programmer.

Automatic Light Compensation Function

Explains the feature that compensates for dust on optical surfaces.

Troubleshooting Common Issues

Indicator and Power Issues

Addresses problems with working indicators not lighting up or fault indicators staying on.

Fire Signal Clearing Problems

Covers scenarios where the fire signal cannot be cleared after operation or restart.

Maintenance and Care Guidelines

Handling Detector Fault Signals

Explains how to address fault signals, checking fixation, dust, and excursion.

Cleaning Optical Surfaces Safely

Provides instructions on cleaning the detector and reflector surfaces safely.

Personnel Training and Testing Schedule

Stresses the importance of trained personnel and regular alarm function tests.

Included Accessories

List of Provided Detector Accessories

Lists all items provided with the detector, such as bolts, bracket, and filters.

Appendix 1: Important Warnings

Smoke Detector Operational Limitations

Details the inherent limitations of smoke detectors and factors affecting performance.

Maintenance and Lifespan Considerations

Discusses the need for continuous maintenance and the finite lifespan of the detector.

Appendix 2: Product Warranty

Warranty Terms and Conditions

Outlines the company's warranty terms, duration, and conditions for coverage.
