C-9105R
Conventional Reflective Beam Detector
Installation and Operation Manual The Intelligent Solution
7
¾ There is strong magnetic field.
2 Mounting Height and Position
The mounting height of the detector and reflector should be most
accessible by smoke into beam zone. The following
recommendations are for reference.

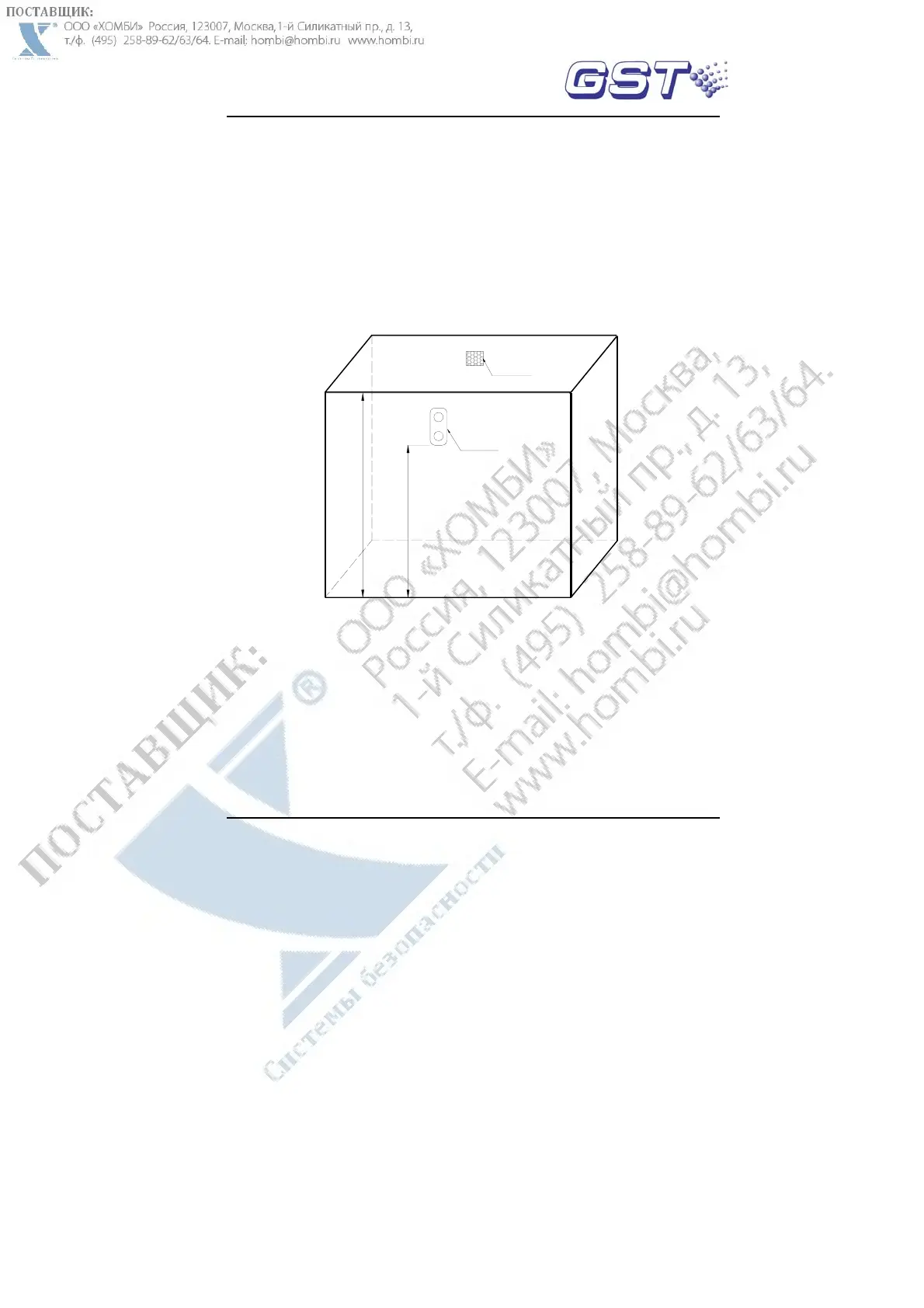

a) When space height is not over 5m, the detector and
reflector should be mounted on the two facing walls 0.5m
from the ceiling, as shown in Fig. 4.
Reflector
Detector
5m
4.5m
Fig. 4
b) When space height is between 5m and 8m, the detector
and reflector should be mounted on the two facing walls
0.5m to 1m from the ceiling, refer to Fig. 5.
