C-9105R
Conventional Reflective Beam Detector
Installation and Operation Manual The Intelligent Solution

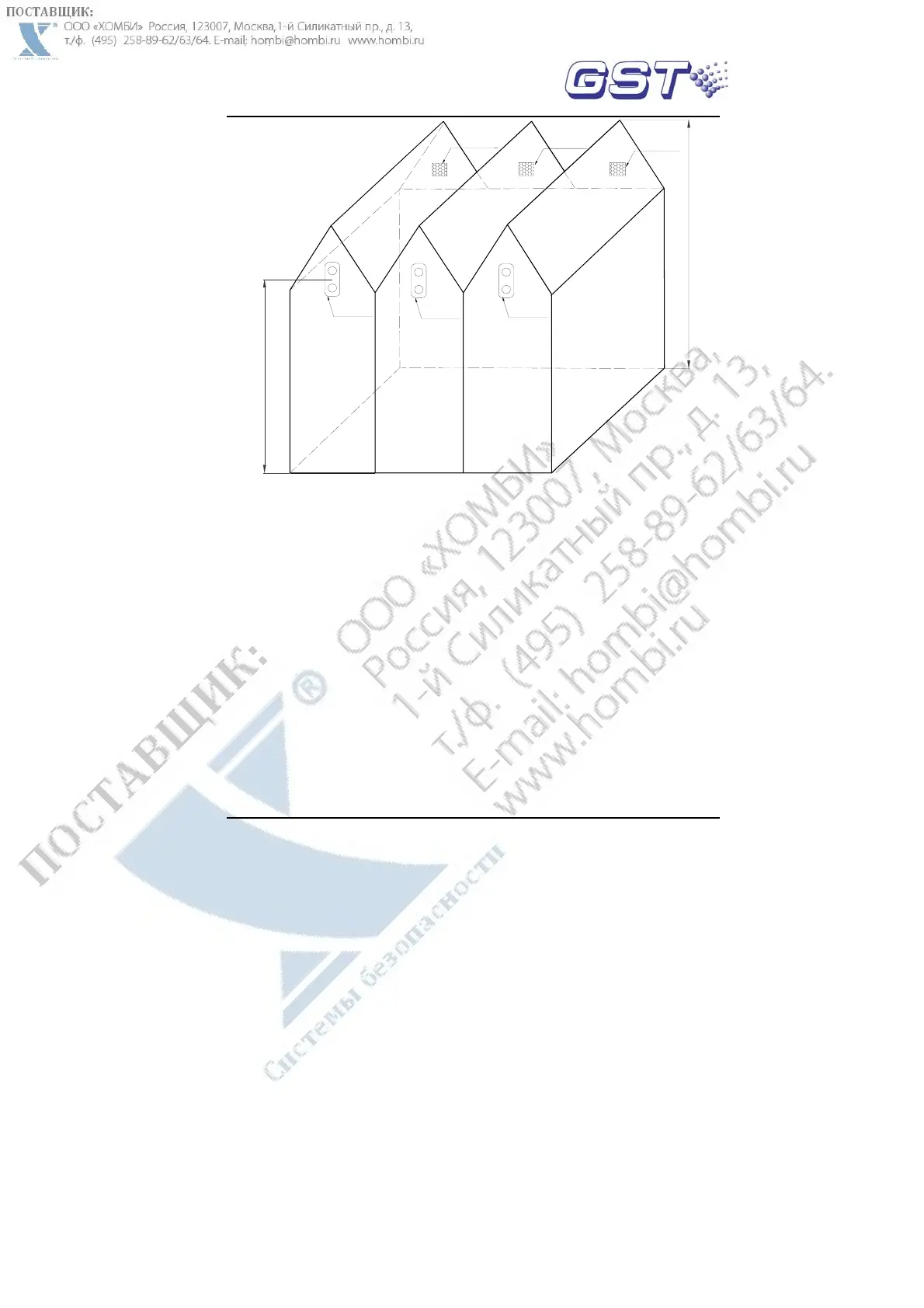

10
Detector
Detector
Reflector
Reflector
6.5m
8m
Reflector
Detecor
Fig. 7
e) If the surroundings are glass or transparent plastic, please
place the detector on the south wall in a building. If the
detector cannot be mounted northward, then place the
detector on the west wall. For applications where sunlight
can reach the detector after reflected, please consider
mounting a sunshade over the detector’s optical pathway or
contact our field engineer for a solution.
3 Mounting
1) Setting Length of Optical Pathway
Before installation, you need to set the length of optical pathway
first by setting device type of the detector. The detector can work
