at two levels of length. When mounting distance between the
detector and the reflector is not less than 40m (but no more
than100m), the detector type should be set at “54” (factory
default). When the mounting distance between the detector and
the reflector is less than 40m (but more than 8m), the detector
type should be set at “53”. Refer to Section VIII Operation for
detailed setting methods.
2) Mounting the Detector

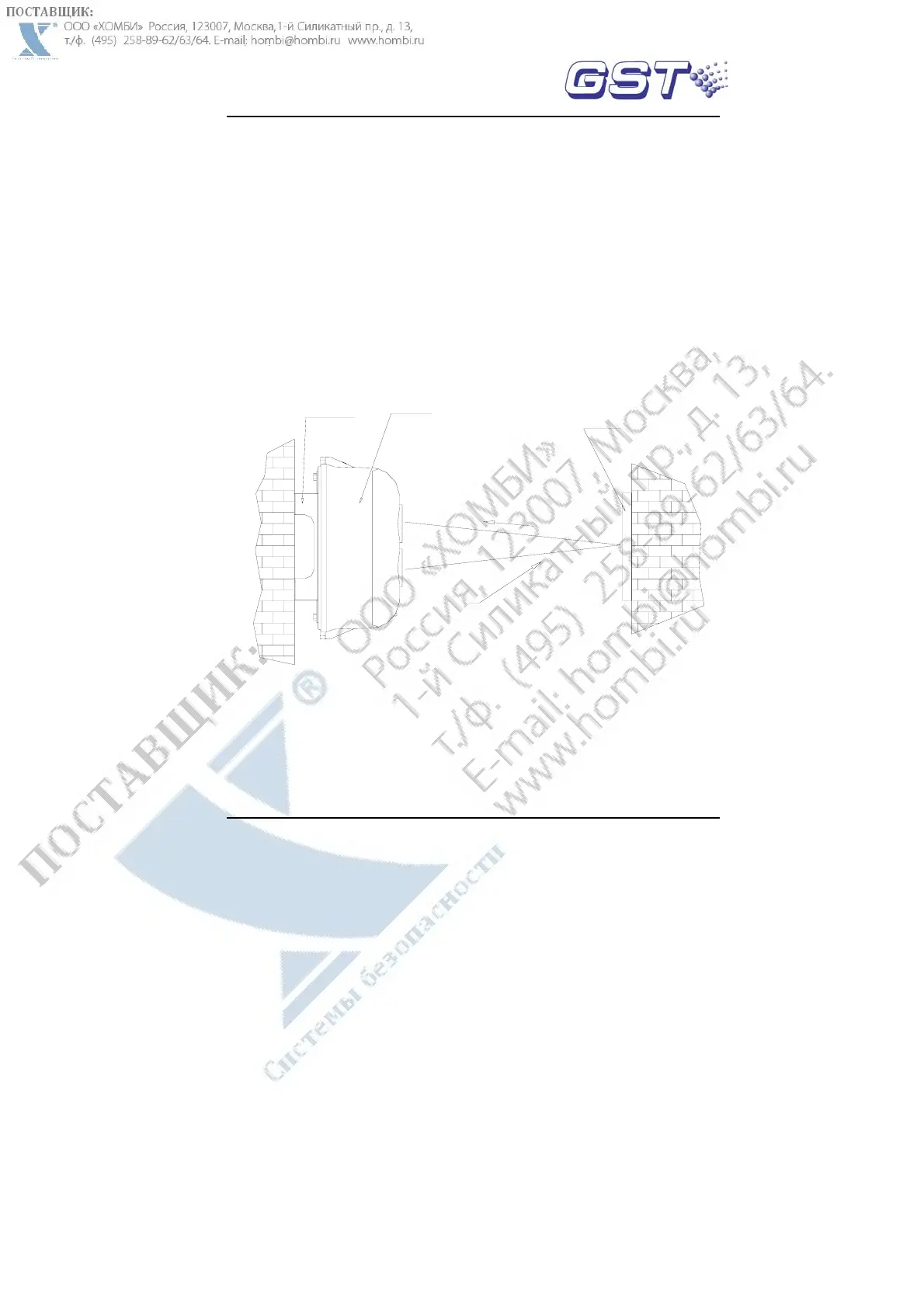

Align the detector and the reflector horizontally on the two facing
walls in monitoring area shown as Fig. 8.
Mounting
Bracket
Detector
Reflector
Fig. 8
The detector can be surface-mounted in two ways: with conduit
embedded or surface-mounted.
(1) Embedding conduit
