IV Structure and Operation Principle

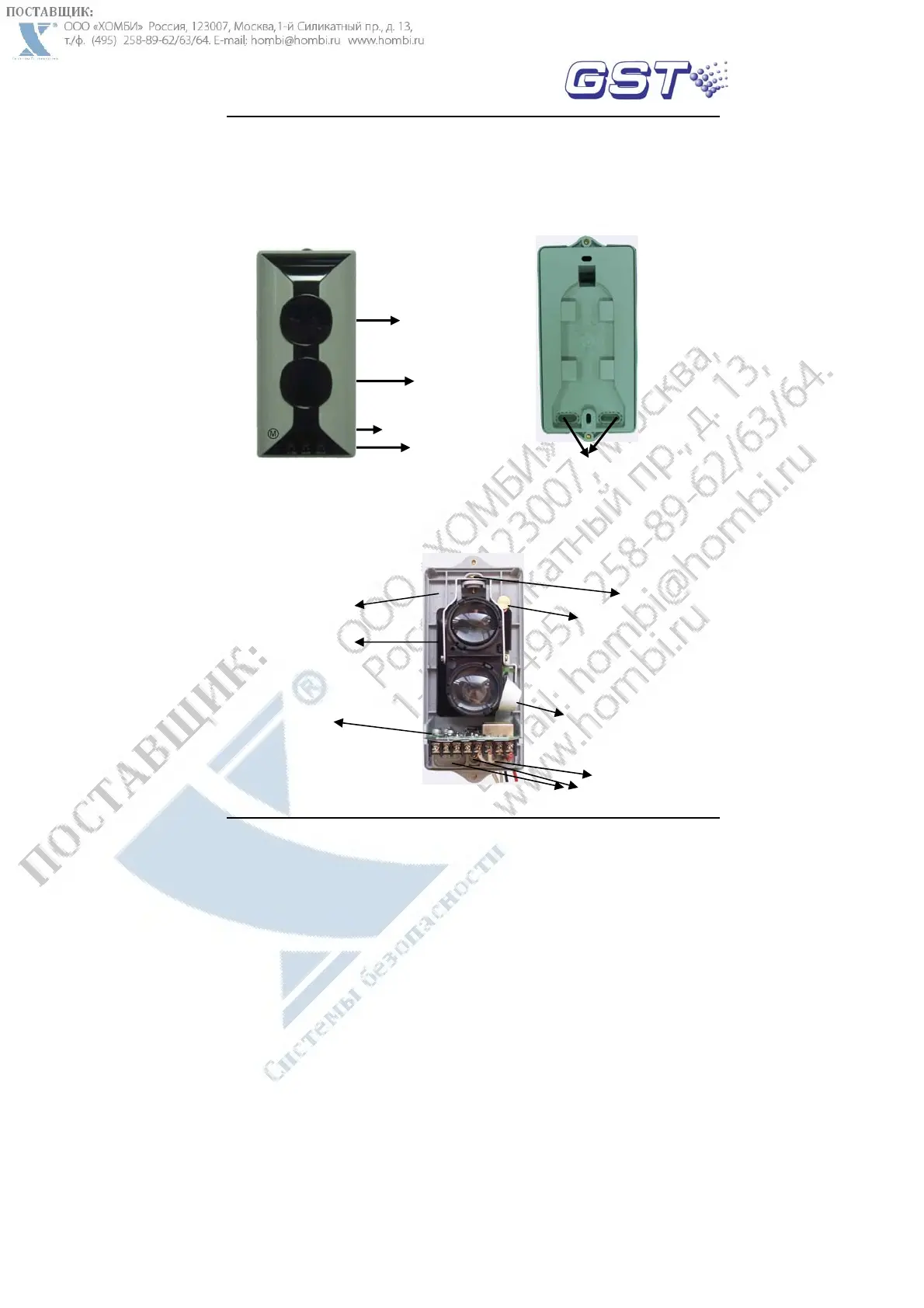

(1) Appearance of the detector is shown in Fig. 1.
Fig. 1
(2) Internal devices of the detector and positions to be glued are
shown in Fig. 2.
Fig. 2
To Be Glued
To Be Glued Mounting Direction
Adjusting Wheel
Rotary Rack
Flexible Cable
Cable Entry
Knock-off
H
Commission Zone
Reed Switch
Receiving
Window
Emitting
Window
LEDs
