DC-9105E Conventional Reflective Beam Detector
Installation and Operation Manual
4
Fig.1

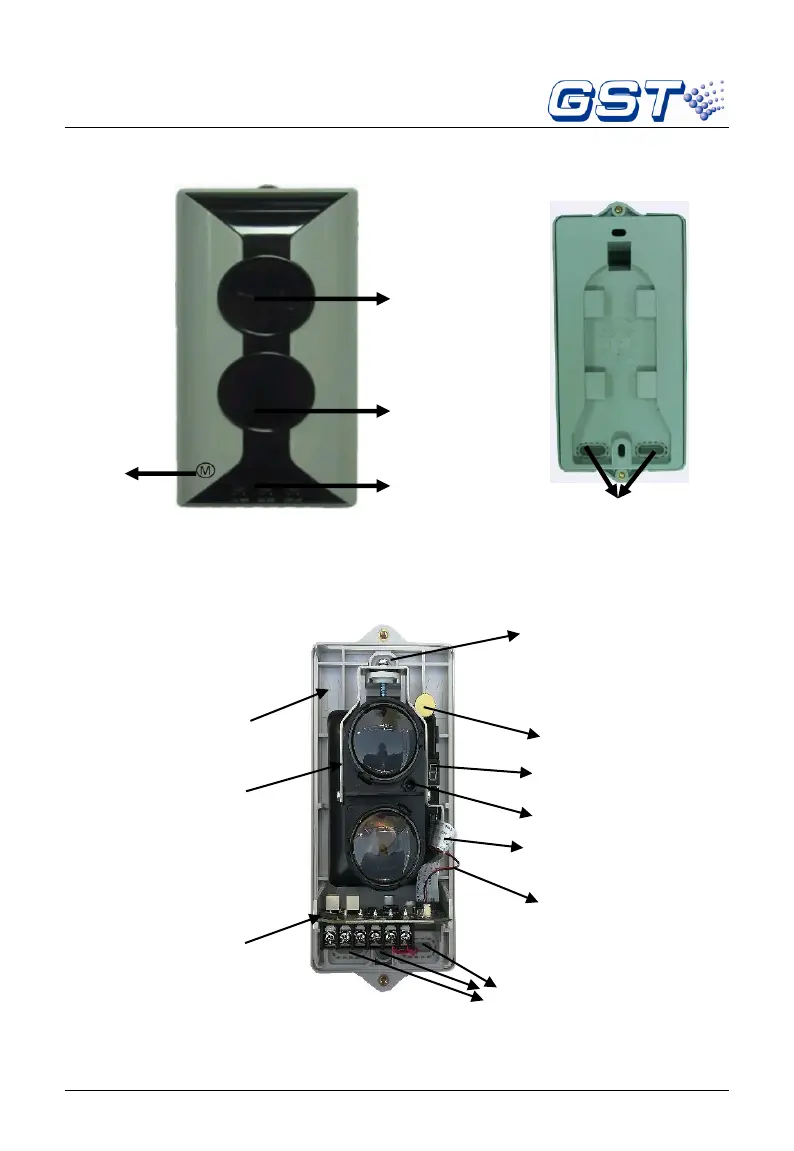

2) Components inside the detector and positions with glue are shown
in Fig. 2.
Fig. 2.
Cable
Entry
Commission
Zone
LEDs
Receiving Len
Emitting Len
Adjusting Wheel
Mounting Direction
Rotary Rack
Reed Switch
To Be Glued
To Be Glued
Power Cord
Flexible Cable
Digital Tube
Visible Red Light
