Assembly

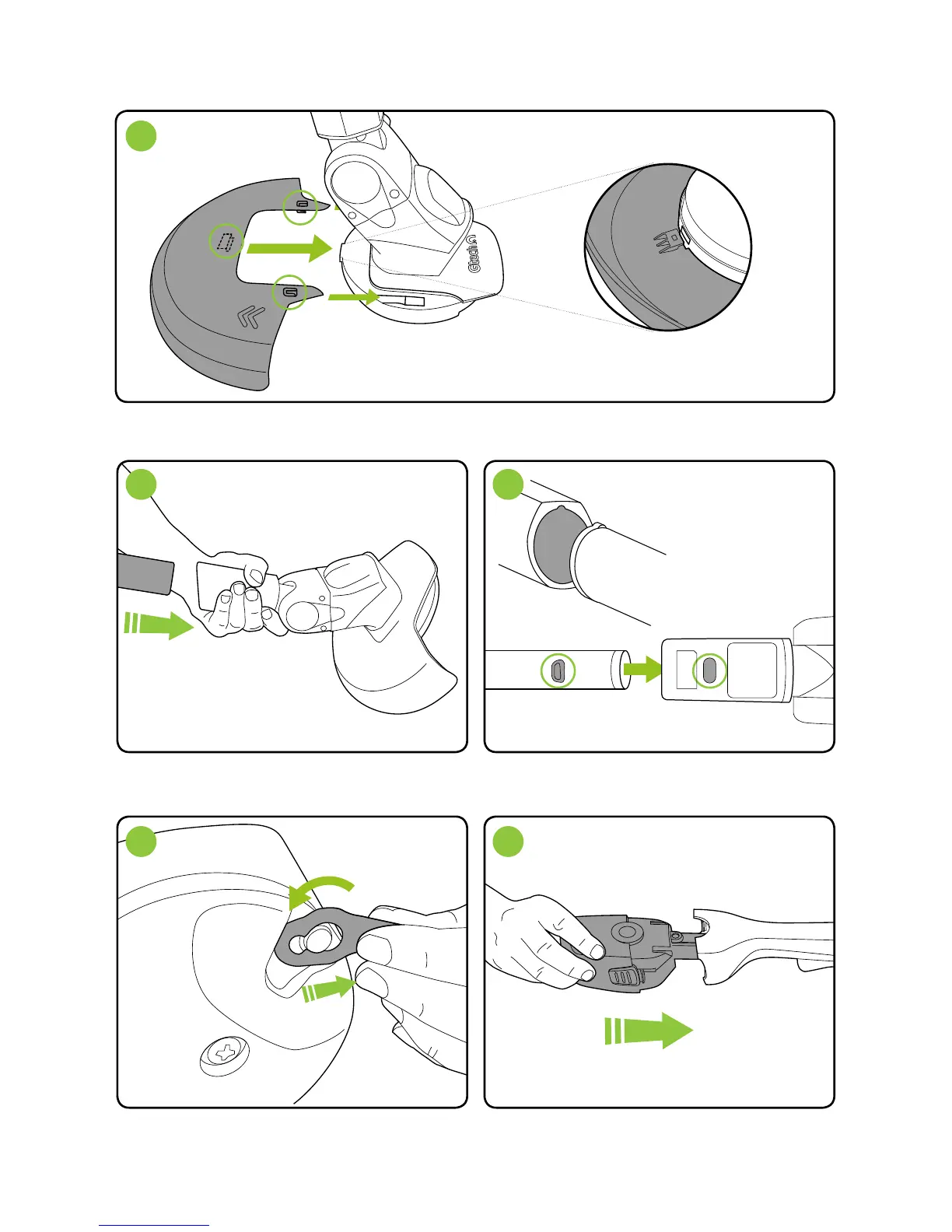

Attach the shroud rst. Align all three clips on the shroud to the holes on the trimmer
head and simultaneously push them into place. Once on, the shroud cannot be removed.
Insert the body pole into the grass trimmer
head, ensuring it is the right way up.
When the pole is fully inserted, the button (1)
will pop up into the aperture (2)
Insert the battery which will click into place.Hook a blade over the pin and pull to
securely lock into place.
The shapes need to match
or the handle will not t.
1
2
7
1
2
4
3
5
View underneath
There is a third clip underneath
the shroud,in the centre.
