4
Making DC Connections
Check polarity of the battery posts. The POSITIVE (POS., P, +) battery post usually
has a larger diameter than the NEGATIVE (NEG., N, -) post. Connect Red charger
output wire to POSITIVE post, Black charger wire to NEGATIVE. See below diagrams
for more details.
Battery Size Recommendations
The recommended maximum battery size per 3 amp bank is 36AH.
The recommended maximum battery size per 5 amp bank is 60AH.
The recommended maximum battery size per 6 amp bank is 72AH.
2607A Connections
Model
Output
Volts
Output
Amps
Banks
DC Cable
Size
Size (inches)
L x W x H
Input Volts
Input
Amps Max
2607A 12/24 3/3 2 4’/4’ 3.5 x 6.4 x 2.25
115VAC
50/60Hz
2 Amp

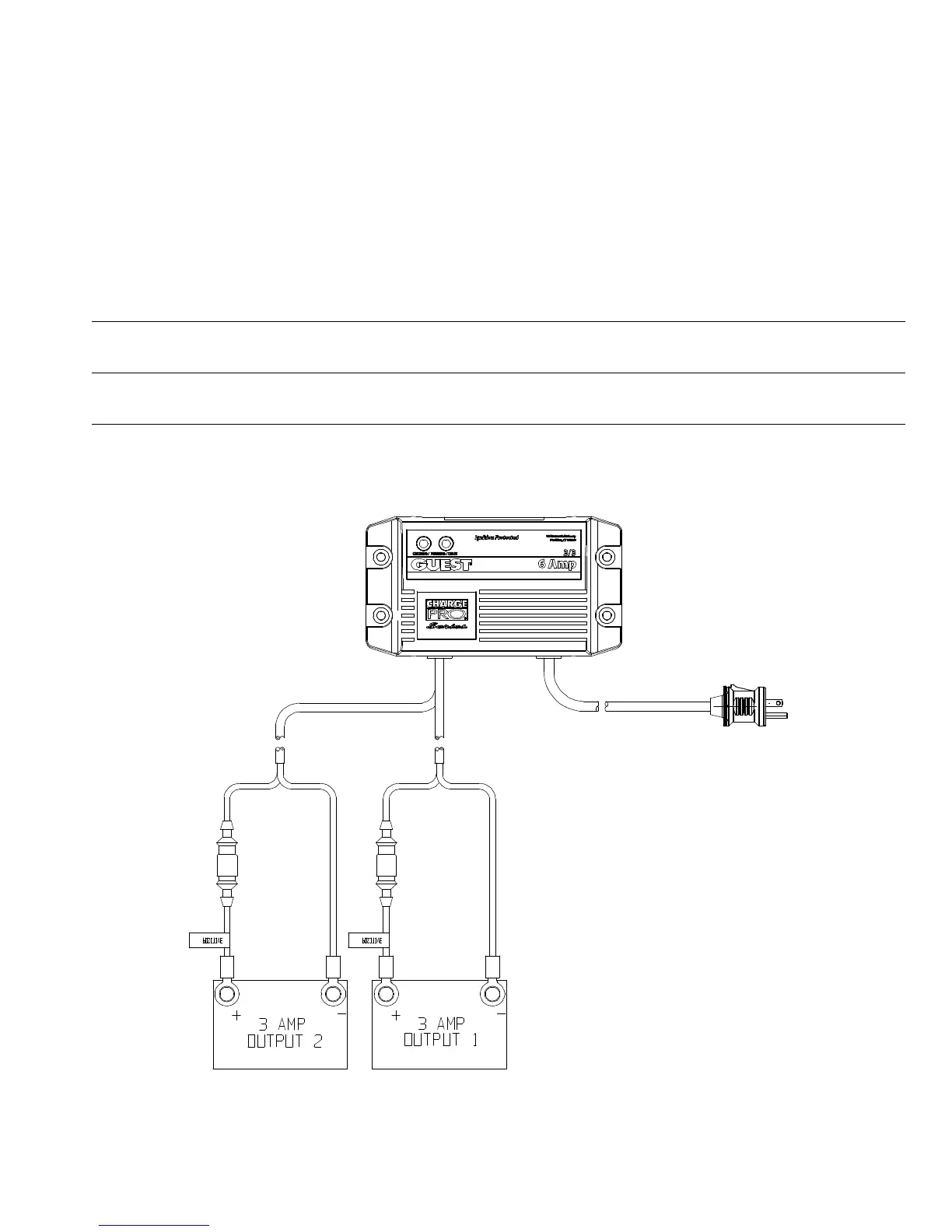

Diagram 1. 2607A (3/3 Amps) used with 2 independent 12V Batteries
