7. Monitor Controls

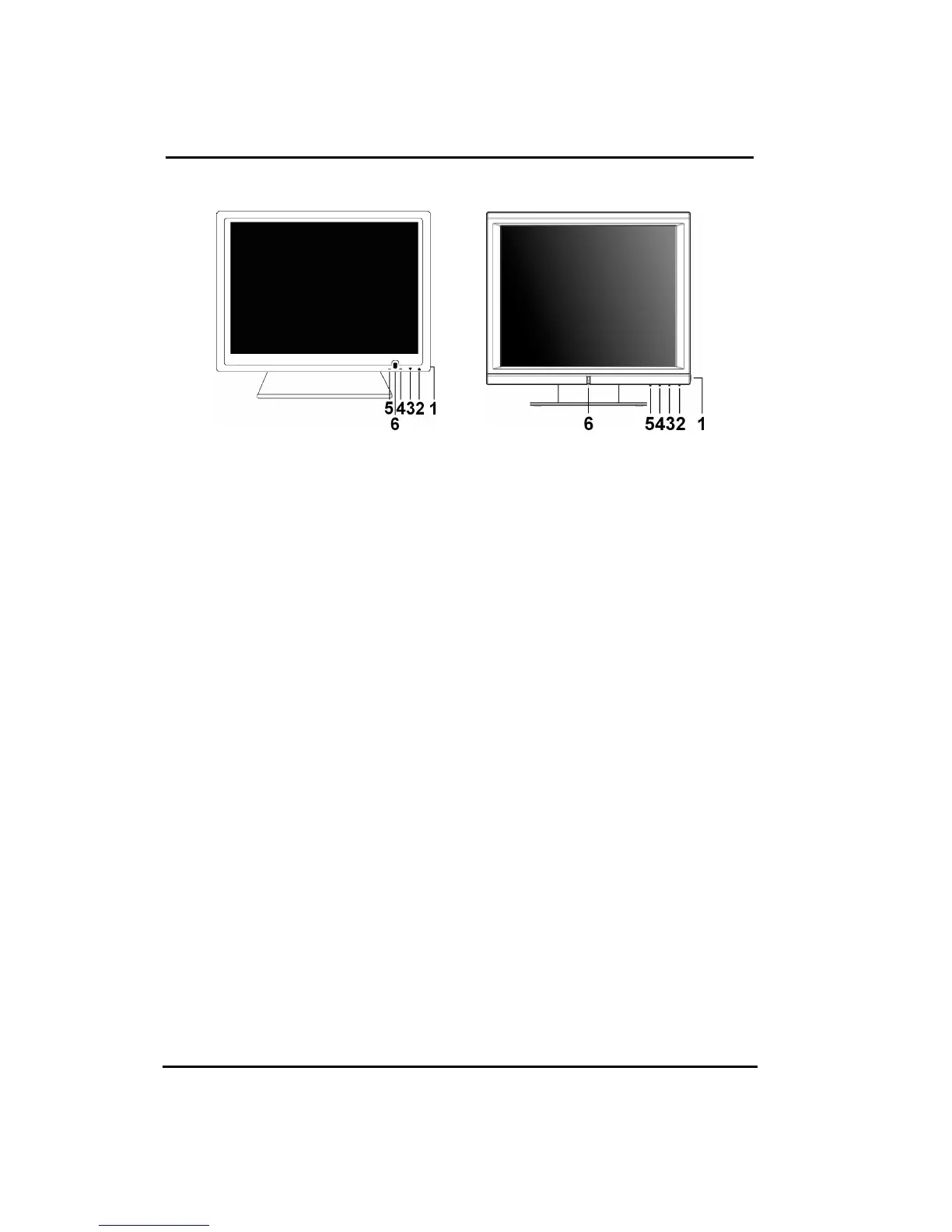

7-1. Key Function
△BX / BH Serial △VX / VH Serial
1. Power Switch Pressing this button turns the display system power on or off.
2. Menu/Select “▲” Pressing this button opens the OSD menu on the screen, and is used
to select (“Up” direction) the OSD control options on the screen.
3. Select “▼” This button is used to select (“Down” direction) the OSD control options on
the screen.
4. “＋
＋＋
＋” This button is used to increase the value of the selected OSD control option.
5. “0
00
0” This button is used to decrease the valve of the selected OSD control option.
6. Power LED on or off.
7-2. Quick Adjustment Function
When the OSD Menu is not active, the following functions are available for the quick
adjustment.
 Pressing “▲” button once pops up the OSD Function Main Menu .
 Pressing “▼” button once pops up the small Brightness icon. Use “＋
＋＋
＋” or “0
00
0” button to
adjust the Brightness level.
 Pressing “＋
＋＋
＋” button once pops up the small Volume icon. Use “＋
＋＋
＋” or “0
00
0” button to
adjust the Volume level.
 Pressing “0
00
0” button once pops up the small Input Select icon. Press “0
00
0” button again
to switch to the digital interface. (Only for the model with digital input)
 Pressing “＋
＋＋
＋” button once and then press both “＋
＋＋
＋” and “0
00
0” buttons at one time, the
audio will be mute .Pressing “＋
＋＋
＋” button again, the audio come back .
Note:
Key lock function : Press “▼” button and then press Power switch together to freeze all
function keys. Press “▼” button and then press Power switch together
again to unlock the keys.
