ELECTRICAL SAFETY TESTER
USER MANUAL
27
Stop The operation will stop upon the failure
occurred at any step of the group tests.
Max off Holding maximum (resistance or current)
measurement off
Measure Max
Max on Holding maximum (resistance or current)
measurement on.
Clear Group
data
Clears all the group and step data
Sure? Prompt to make sure of the decision to clear
all data.
All group clear
Wait……. Erasing data.
Short on
Ramp short detection on.
Ramp Short
Detect
Short off
Ramp short detection off.
RS-232 Baud
Rate
1200, 2400, 4800, 9600.
Interface
GPIB Address 00~31

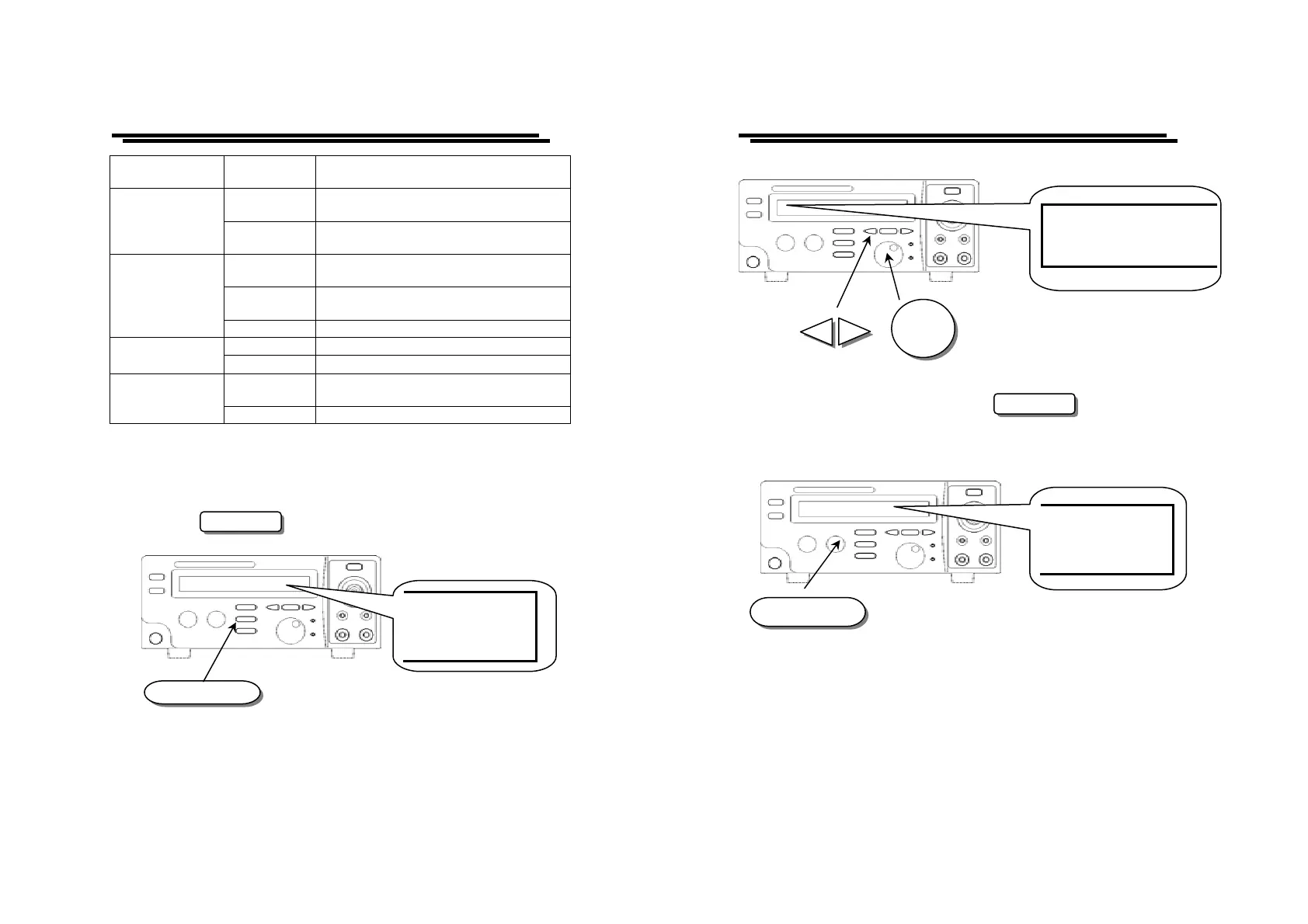

z To Edit/Save the System Utility
1. Follow the above procedure “To View the System Utility” to select
a parameter.
2. Press the EDIT/SAVE key to enter status EDIT.
3. Use knob to adjust parameter. Use arrow keys to change knob’s
resolution.
EDIT/SAVE
E
D
I
T
ELECTRICAL SAFETY TESTER
USER MANUAL
28
4. After setting this parameter, press EDIT/SAVE key to save the
parameter. The status will become SAVE. After the parameter is
saved, the status will return to EDIT.
5. Repeat the procedure “To View the System Utility” to select another
parameter.
T
E
S
T
M
O
D
E
F
R
O
M
S
T
E
P
EDIT/SAVE
S
A
V
E
To Next Page
