GW Instek GPT-9904 User Manual

GPT-9000/9000A Series User Manual
70

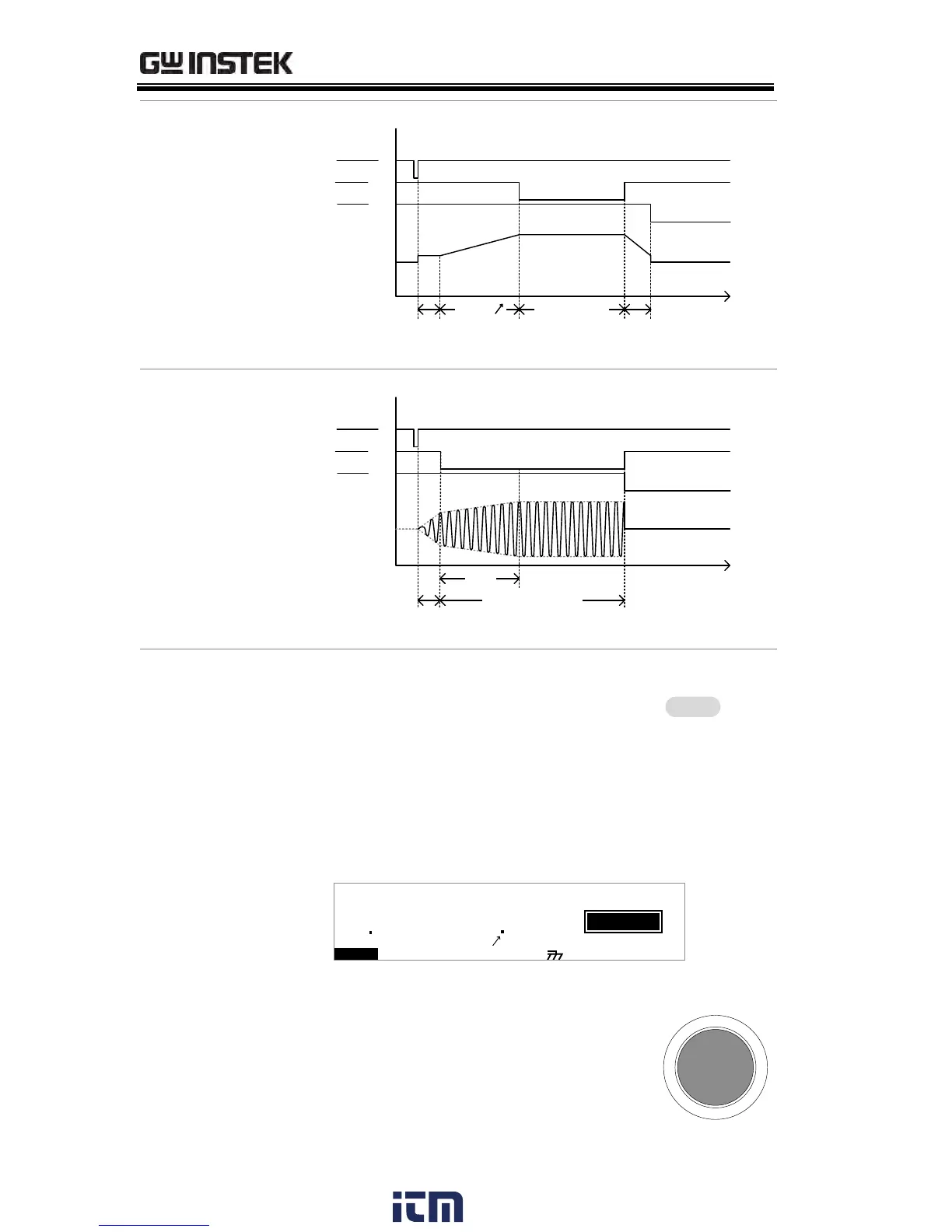

IR PASS Timing
Discharge time
Output V
time
Initial time
START
TEST
PASS
RAMP TEST TIME
(Approximately 150ms)
GB PASS Timing
Output I
time
START
TEST
PASS
0.5s
Initial time
Total Test Time
(Approximately 150ms)
FAIL Judgment
1. When the test is judged as FAIL,
FAIL will be displayed, the buzzer
will sound and the FAIL indicator
will be lit red.
As soon as a test is judged FAIL,
power is cut from the terminals.
FAIL
I R G B A CW D CW
F R E Q = 0 H z 6
0 100
k V
IAF
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
2M A UN 0 0_2M A N U = * * * - 0 0
L
m A
01 37
2. The FAIL judgment will be held on
the display until the STOP button
is pressed. Pressing the STOP
button twice will return the tester
to the READY status.
STOP
