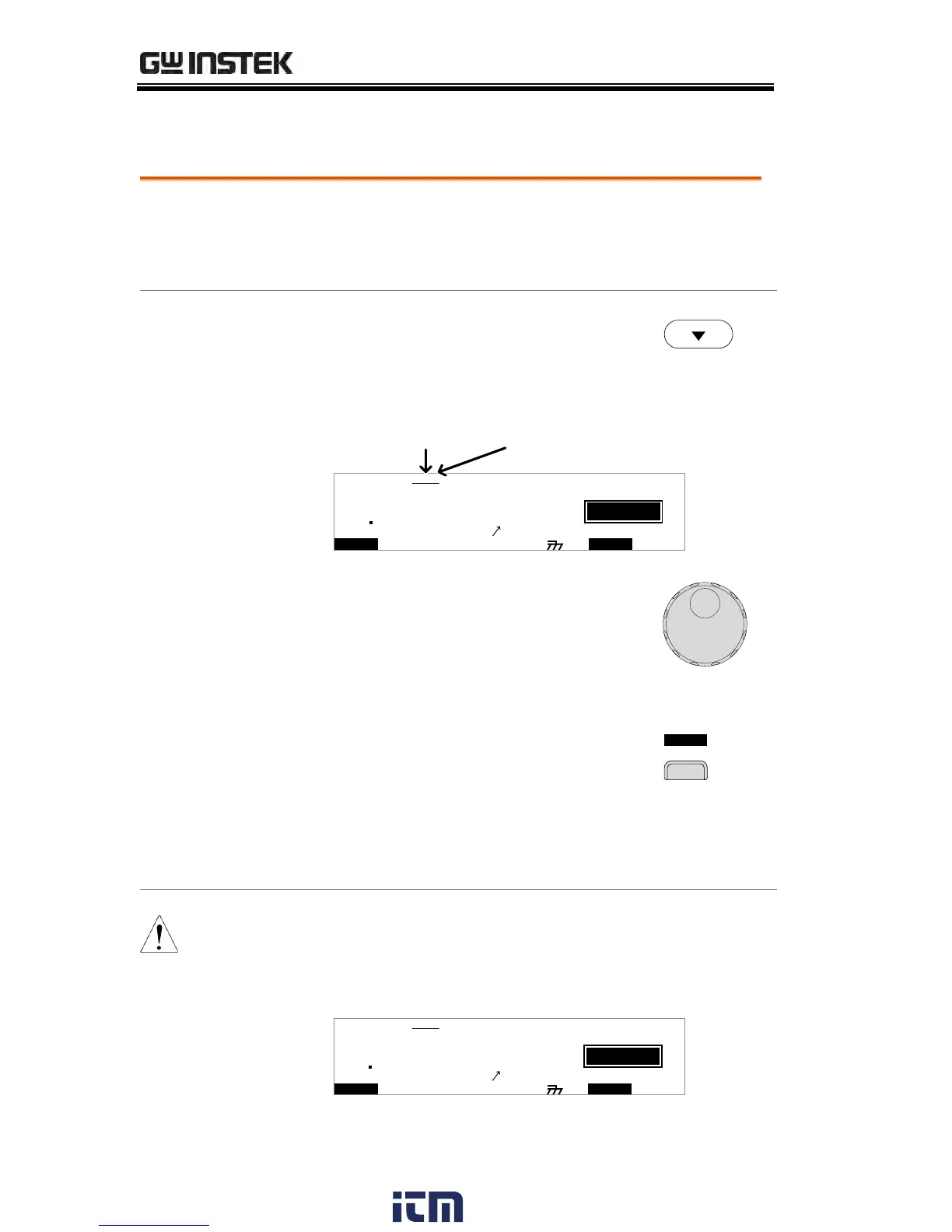

GW Instek GPT-9904 User Manual

GPT-9000/9000A Series User Manual
84
Adding a Step to the Automatic Test
Background
Up to 16 MANU tests (steps) can be added to
an automatic (AUTO) test. Each step is added
in a sequential order.
Steps
1. Press the DOWN arrow keys to
bring the cursor to the MANU
number.
I R G B
cursor
MANU number
m A
A CW D CW A D D
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
1A U T O = 0 0 1 - 0 0
2. Use the scroll wheel to choose a
MANU number to add to the
automatic test.
MANU number
001~100
3. Press the ADD soft-key to add the
selected manual test to the
automatic test as another step.
A D D
4. Repeat steps 2 and 3 for any other tests that you
wish to add to the automatic test.
Note
After 16 steps have been added to an AUTO test,
FULL will be shown on the display when you
attempt to add another step to the AUTO test.
I R G B
m A
A CW D CW A D D
E
F R E Q = 0 H z 6
0 100
k V
LUF
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
L
1A U T O = 0 0 1 - 0 0
