GW Instek GPT-9904 User Manual

OPERATION
85
Note
The test order can be edited in the Page View
menu after the AUTO test is saved. See page 87 for
details.

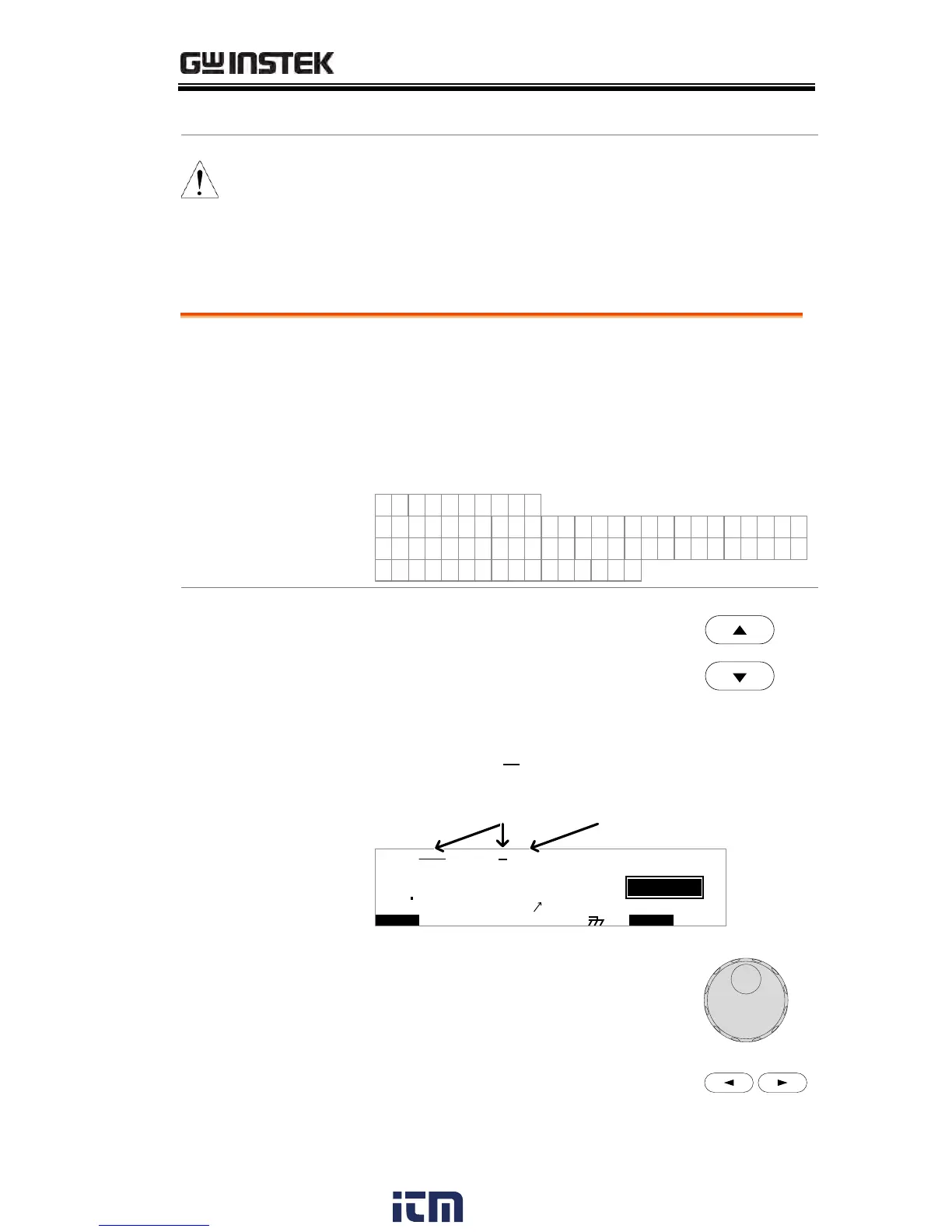

Creating an AUTO Test File Name
Background
Each automatic test can have a user-defined test
file name (Default: AUTO_NAME) up to 10
characters long. See the character list below for
the allowed characters.
Character List
0 1 2 3 4 5 6 7 8 9
WX Y ZM VO P RQ T USNLA B C D E F G H I J K
w x y zm vo p rq t usnla b c d e f g h i j k
+ - * / _ = : Ω ? ( ) < > [ ]
Steps
1. Use the UP/DOWN arrow keys to
bring the cursor to the AUTO
number. A small cursor will also
appear under the first character of
the AUTO test file name. This is
initially set as AUTO_NAME
I R G B
m A
A CW D CW A D D
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MA U OT N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
1A U T O = 0 0 1 - 0 0
cursor AUTO test file name
2. Use the scroll wheel to scroll
through the available characters.
3. Press the LEFT/RIGHT arrow keys
to go to the next character.
