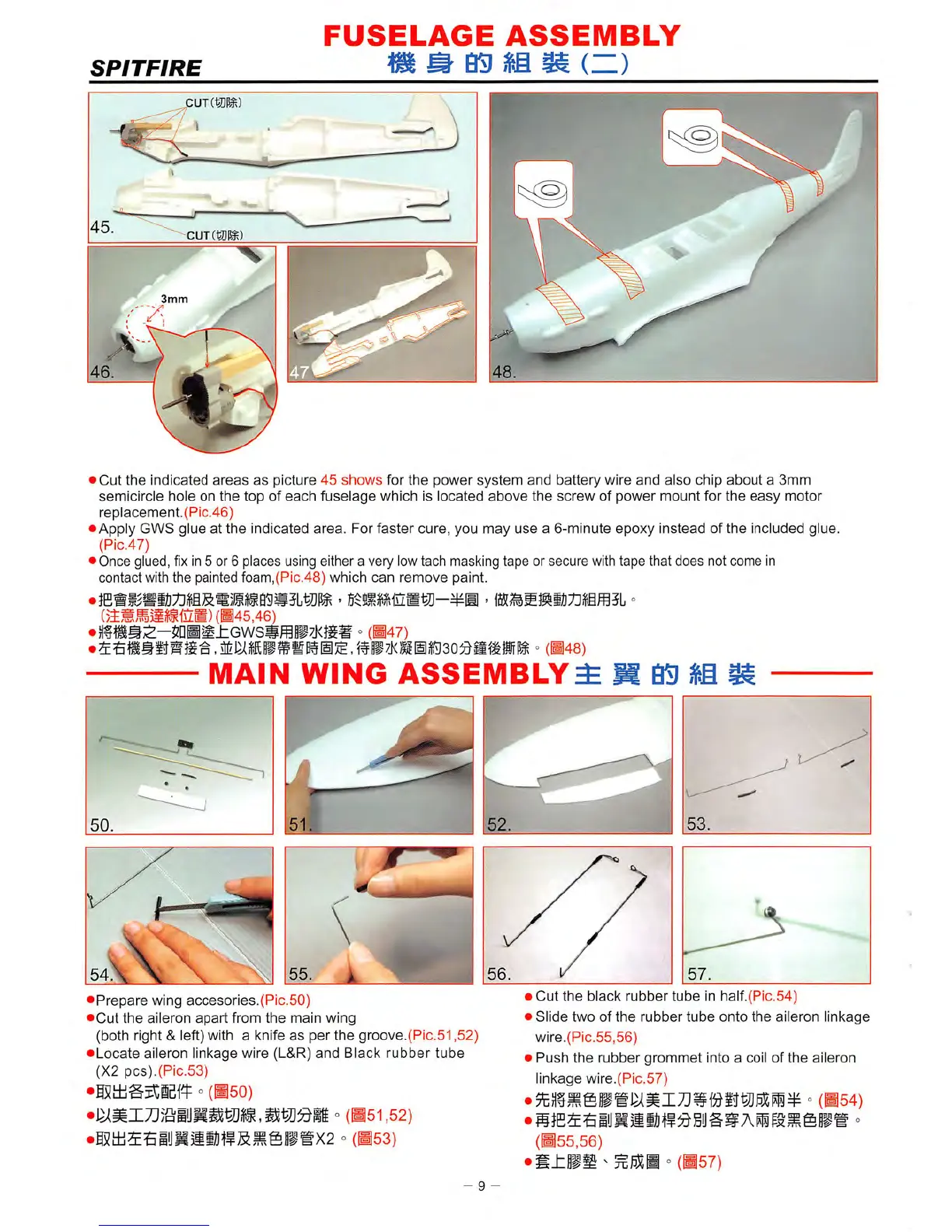

FUSELAGE ASSEMBLY
g eg Si ^ (n)
SPITFIRE
^puTmm)
CUT mm)
3mm
• Cut the indicated areas as picture 45 shows for the power system and battery wire and also chip about a 3mm
semicircle hole on the top of each fuselage which is located above the screw of power mount for the easy motor
replacement.(Plc.46)
• Apply GWS glue at the indicated area. For faster cure, you may use a 6-mlnute epoxy instead of the included glue.
(Pic.47)
• Once glued, fixIn5 or 6 places using either a very low tach masking tape or secure with tape that does not come in
contact with the painted foam,(Pic.48) which can remove paint.
(•45,46)
° (H47)
MAIN WING ASSEMBLY^ M S3 i
• Prepare wing accesories.(Pic.50)
• Cut the aileron apart from the main wing
(both right & left) with a knife as per the groove.(Pic.51,52)
• Locate aileron linkage wire (L&R) and Black rubber tube
(X2 pcs).(Pic.53)
° (H50)
° (•51,52)
•S5[UiSiiJH5lBt?Slg0i®X2 =(BSS)
- 9
• Cut the black rubber tube In half.(Pic.54)
•
Slide two of the rubber tube onto the aileron linkage
wire.(Pic.55,56)
•
Push the rubber grommet into a coil of the aileron
linkage wire.(Plc.57)
° (B54)
(B55,56)
•Mxmm - =(M57)
