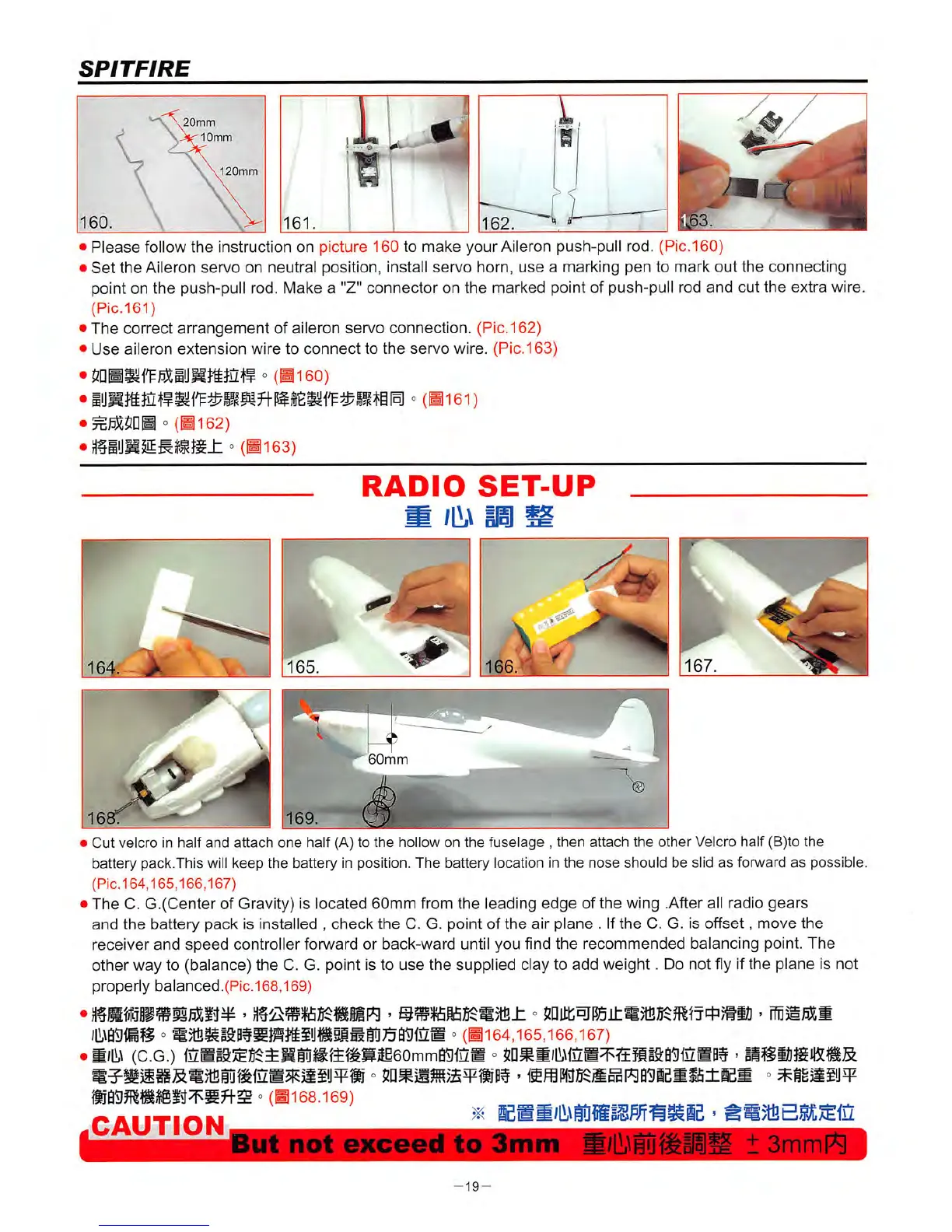

SPITFIRE
20mm
10mm
120mm
r
1
•
Please
follow
the
instruction on picture
160
to
make
your Aileron push-pull rod. (Pic. 160)
•
Set
the
Aileron
servo
on neutral position, install
servo
horn,
use
a marking
pen
to mark
out
the
connecting
point on the push-pull rod. Make a "Z"connector on the marked point of push-pull rod and cut the extra wire.
(Pic.161)
•
The
correct
arrangement
of aileron
servo
connection. (Pic. 162)
•
Use
aileron
extension
wire to
connect
to
the
servo
wire. (Pic. 163)
°
(^160)
• °
(^161)
°
(B162)
°
(B163)
Tifioi
RADIO
f
E'TUP
60mm
ICut velcro in half and attach
one
half (A)to
the
hollow on
the
fuselage , then attach the other Velcro half (B)to the
battery pack.This
will
keep
the
battery in position.
The
battery location In
the
nose
should be slid
as
forward
as
possible.
(Pic.164,165,166,167)
•
The
C. G.(Center of Gravity) is located 60mm from
the
leading
edge
of
the
wing .After all radio
gears
and
the battery pack is installed ,
check
the
C. G. point of the air plane .
If
the
0.
G. is
offset,
move
the
receiver
and
speed
controller forward or back-ward until you find
the
recommended
balancing point.
The
other way to (balance) the C. G. point is to
use
the supplied clay to add weight. Do not
fly
ifthe plane is not
properly
balanced.(Pic.168,169)
° ° (•164,165,166,167)
° (•168.169)
mmm
+
swmw
i
.CAUTION
-19-
