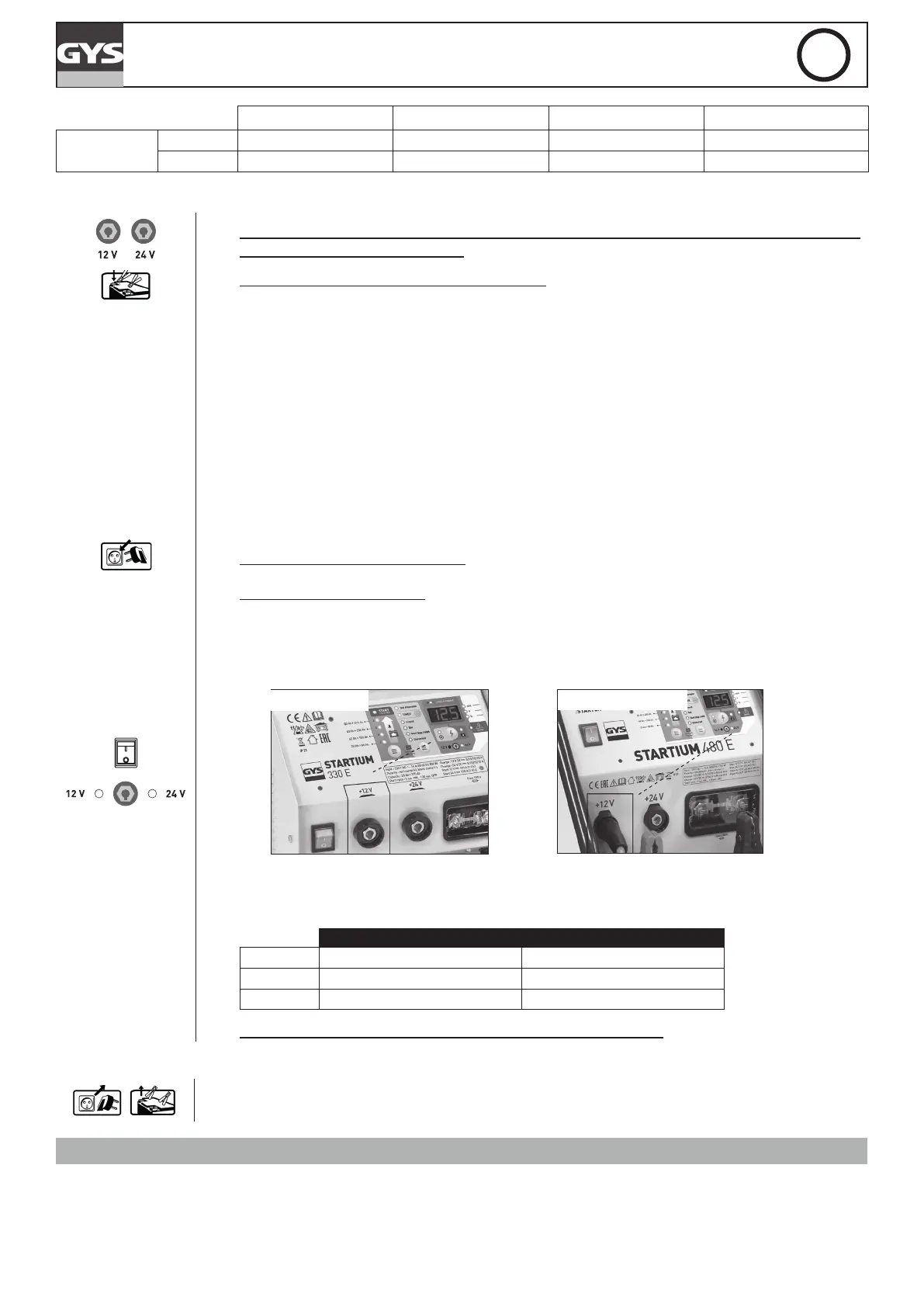

STARTIUM 330E / 480E / 680E / 980E
EN
Translation of the original instructions
STARTIUM 330E STARTIUM 480E STARTIUM 680E STARTIUM 980E
Charging
capacity
12V 20 - 375 Ah 20 - 600 Ah 20 - 675 Ah 20 - 750 Ah
24V 20 - 300 Ah 20 - 450 Ah 20 - 525 Ah 20 - 525 Ah
Connection
1.
Plug the connector into the «12 V» or «24 V» position of the STARTIUM according to the
battery to be charged or started.
2. Connect the clamps (several possible cases):
a.
The negative terminal is plugged onto the car’s chassis :
- Connect the red clamp to the battery’s positive terminal.
- Connect the black clamp to the vehicle’s chassis, make sure it is a safe distance from
the battery and the fuel/exhaust pipe.
b.
The positive terminal plugged onto the car chassis, in this event :
- Connect the black clamp to the battery’s negative terminal.
- Connect the red clamp to the vehicle’s chassis, make sure it is a safe distance from
the battery and the fuel/exhaust pipe.
c.
Battery disconnected from the vehicle :
Connect the red clamp to the battery’s positive terminal and the black clamp to the
battery’s negative terminal.
3. Connect the device to the mains.
4.
Press the ON / OFF button.
A LED, (8) or (10) switches on under the corresponding interface to conrm the selected
voltage input. If the selected voltage does not match the battery voltage, the charge cannot
start.
STARTIUM 330E
STARTIUM 480E-680E-
980E
Once connected, the STARTIUM provides information on the battery’s health status. The
display (2) alternately indicates the actual voltage (4) and the percentage of charge (5).
12V 24V
100% > 12,8 V > 25,6 V
... 11,8 V < tension < 12,8 V 23,6 V < tension < 25,6 V
0% < 11,8 V < 23,6 V
5.
Use the STARTIUM in charger, starter or alternator test mode.
Disconnection
6. After use, carry out the exact reverse operation for the disconnection phase in order.
USE IN CHARGER MODE (cf p.5)
1. Connection (p.15).
2. Select the appropriate parameters: adapt the STARTIUM charge to the battery to be recharged.
