H3C MSR3600 User Manual

1-3
MSR 36-20 AC

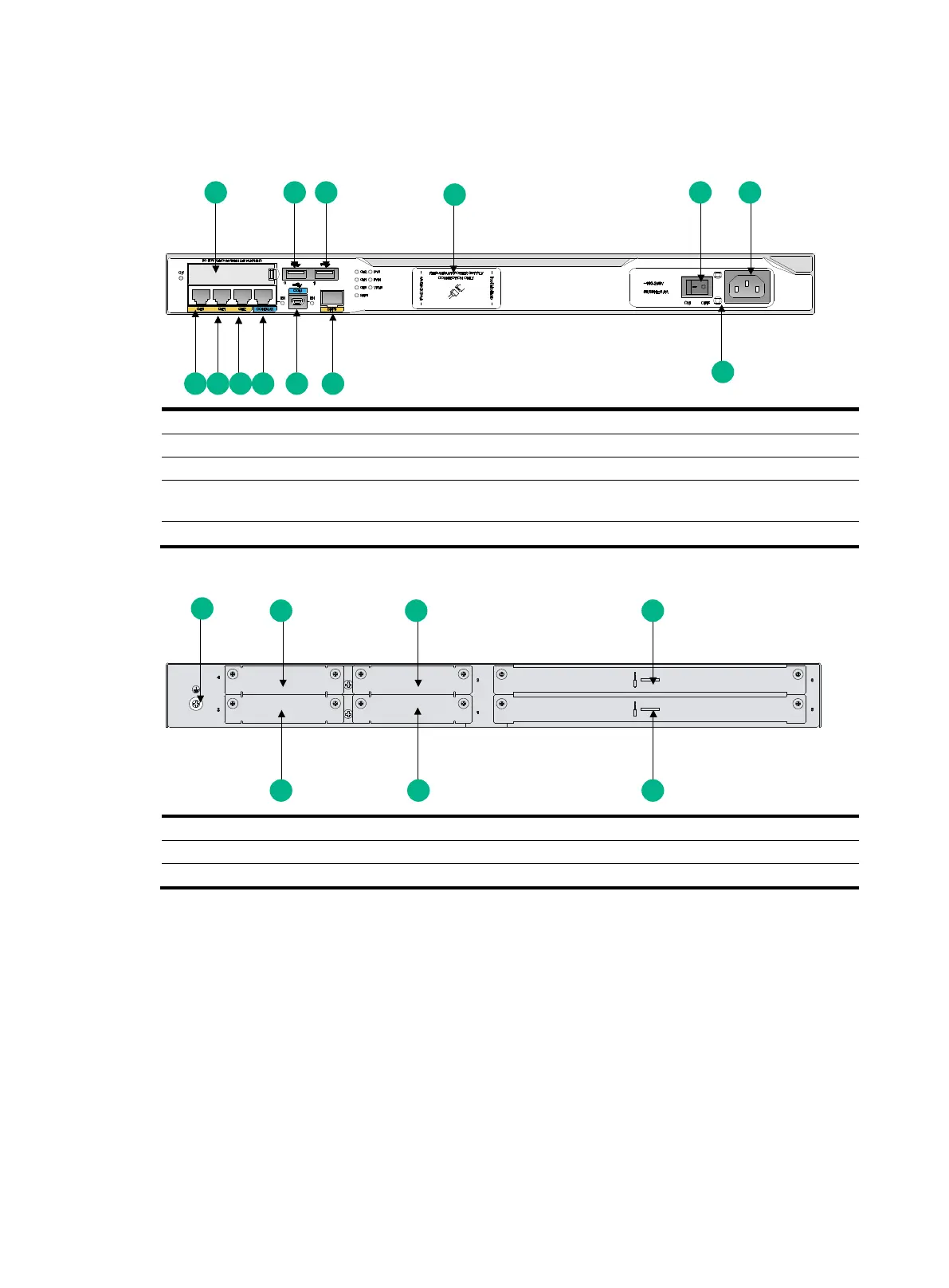

Figure1-5 MSR 36-20 AC front view
(1) CF card cover
(2) USB port 0
(3) USB port 1
(4) RPS receptacle cover
(5) Power switch
(6) AC-input power receptacle
(7) Power cord retaining clip holder
(8) SFP port (SFP0)
(9) USB console port (CON)
(10) Console port/AUX port
(CON/AUX)
(11) Gigabit Ethernet port (GE2) (12) Gigabit Ethernet port (GE1)
(13) Gigabit Ethernet port (GE0)
Figure1-6 MSR 36-20 AC rear view
(1) Grounding terminal
(2) SIC slot (slot 4)
(3) SIC slot (slot 3)
(4) HMIM slot (slot 6)
(5) HMIM slot (slot 5)
(6) SIC slot (slot 1)
(7) SIC slot (slot 2)
1 2
4
53
7
6
9 81012 1113
5
2
1
3 4
7
6
