H3C MSR3600 User Manual

1-2
MSR 36-10 DC

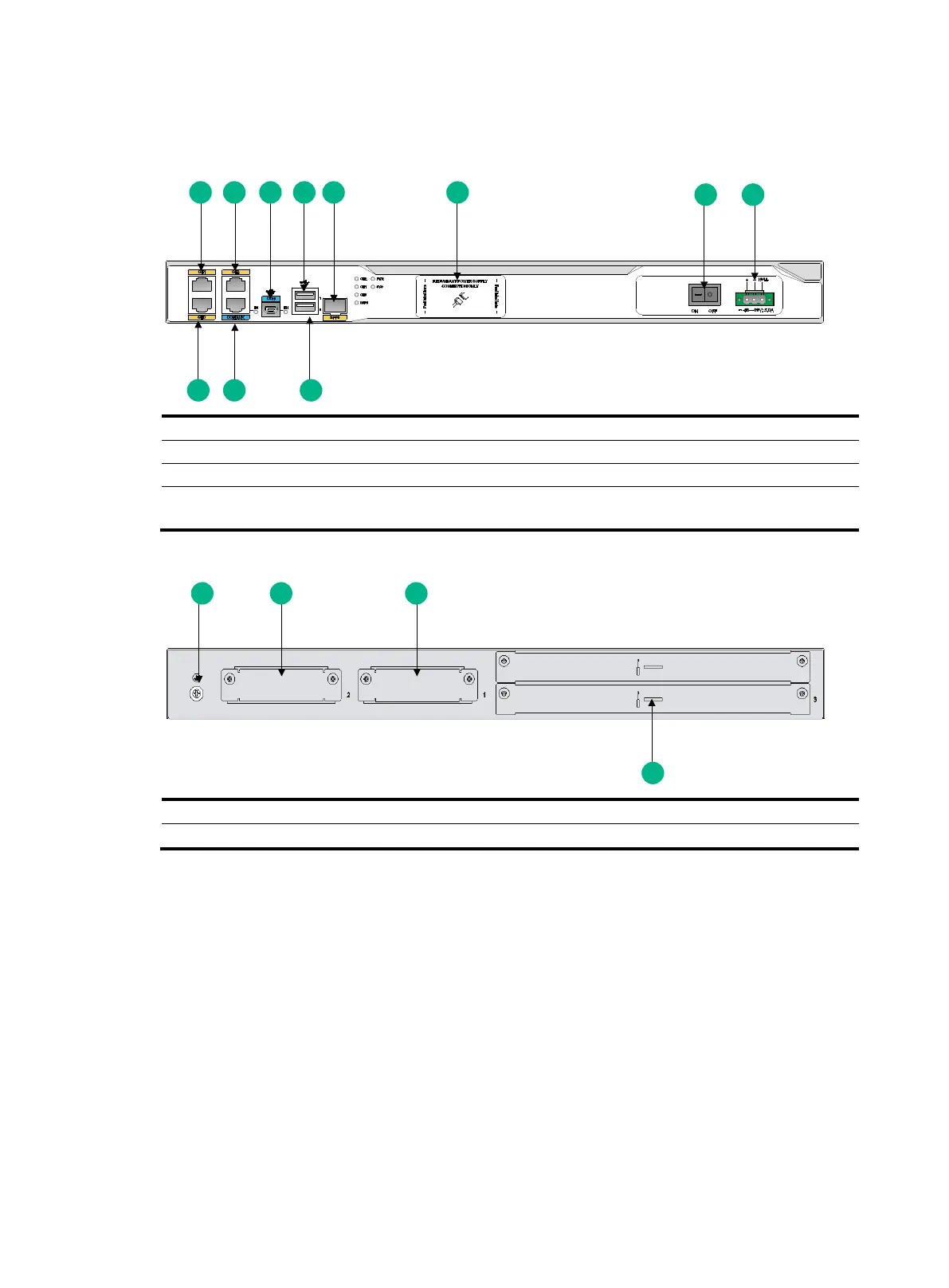

Figure1-3 MSR 36-10 DC front view
(1) Gigabit Ethernet port (GE1)
(2) Gigabit Ethernet port (GE2)
(3) USB console port (CON)
(4) USB port 1
(5) SFP interface (SFP0)
(6) RPS receptacle cover
(7) Power switch
(8) DC-input power receptacle
(9) USB port 0
(10) Console port/AUX port
(CON/AUX)
(11) Gigabit Ethernet port (GE0)
Figure1-4 MSR 36-10 DC rear view
(1) Grounding terminal
(2) SIC slot (slot 2)
(3) SIC slot (slot 1)
(4) HMIM slot (slot 3) (use the lower half of the slot for a 0.5U HMIM)
1
3
5
8
2
9
7
10
4
11
6
1
2
4
3
