H3C PSR1600-54A-B

3-2
Connection
method
Applicable
switch models
Console cable
type
Configuration
terminal-side
connector
Switch-side
connector
S6520X-54HC-HI
The signal pinout for the RJ-45 connector of a serial console cable varies by vendor. To avoid
abnormal configuration terminal display, use a serial console cable provided by H3C. For more
information, see Table3-2. To prepare a serial console cable yourself, make sure the signal pinout for
the RJ-45 connector is the same as that shown inTable3-3.

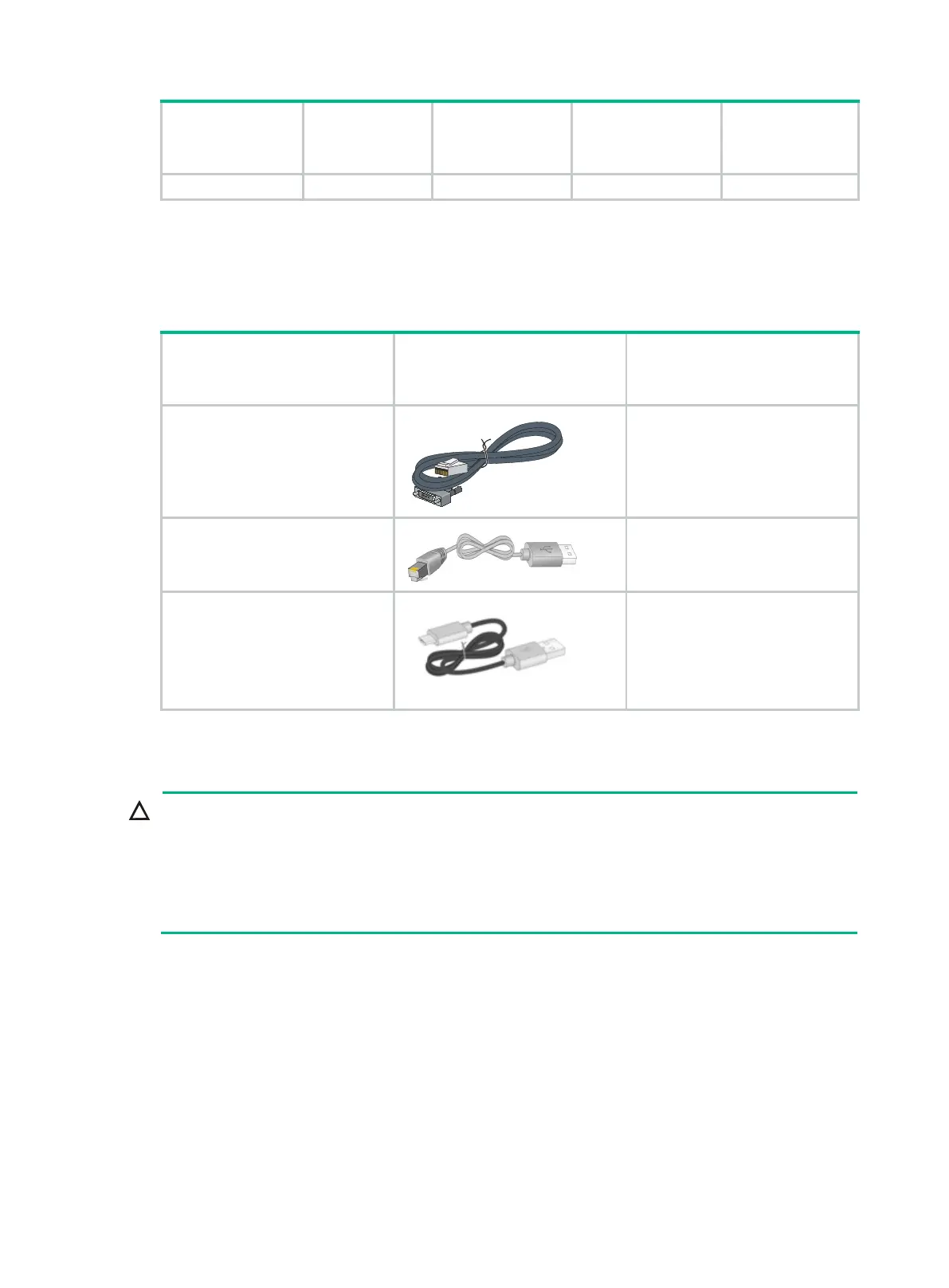

Table3-2 Console cable views
Console cable type Console cable view
Product code for the
recommended H3C console
cable
DB9-to-RJ45 console cable 04042967
USB-to-RJ45 console cable 0404A1EE
Micro USB console cable User supplied,
Connecting a DB9-to-RJ45 console cable
CAUTION:
Follow these
guidelines when you connect a DB9-to-RJ45 console cable:
•
Identify the mark on the serial console port and make sure you are connecting to the correct port.
•
The serial ports on PCs do not support hot swapping. To connect a PC to an operating switch,
first connect the PC end. To disconnect a PC fro
m an operating switch, first disconnect the switch
end.
A DB9-to-RJ45 console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one
end for connecting to the serial console port of the switch, and a DB-9 female connector at the other
end for connecting to the serial port on the console terminal.
