4-3

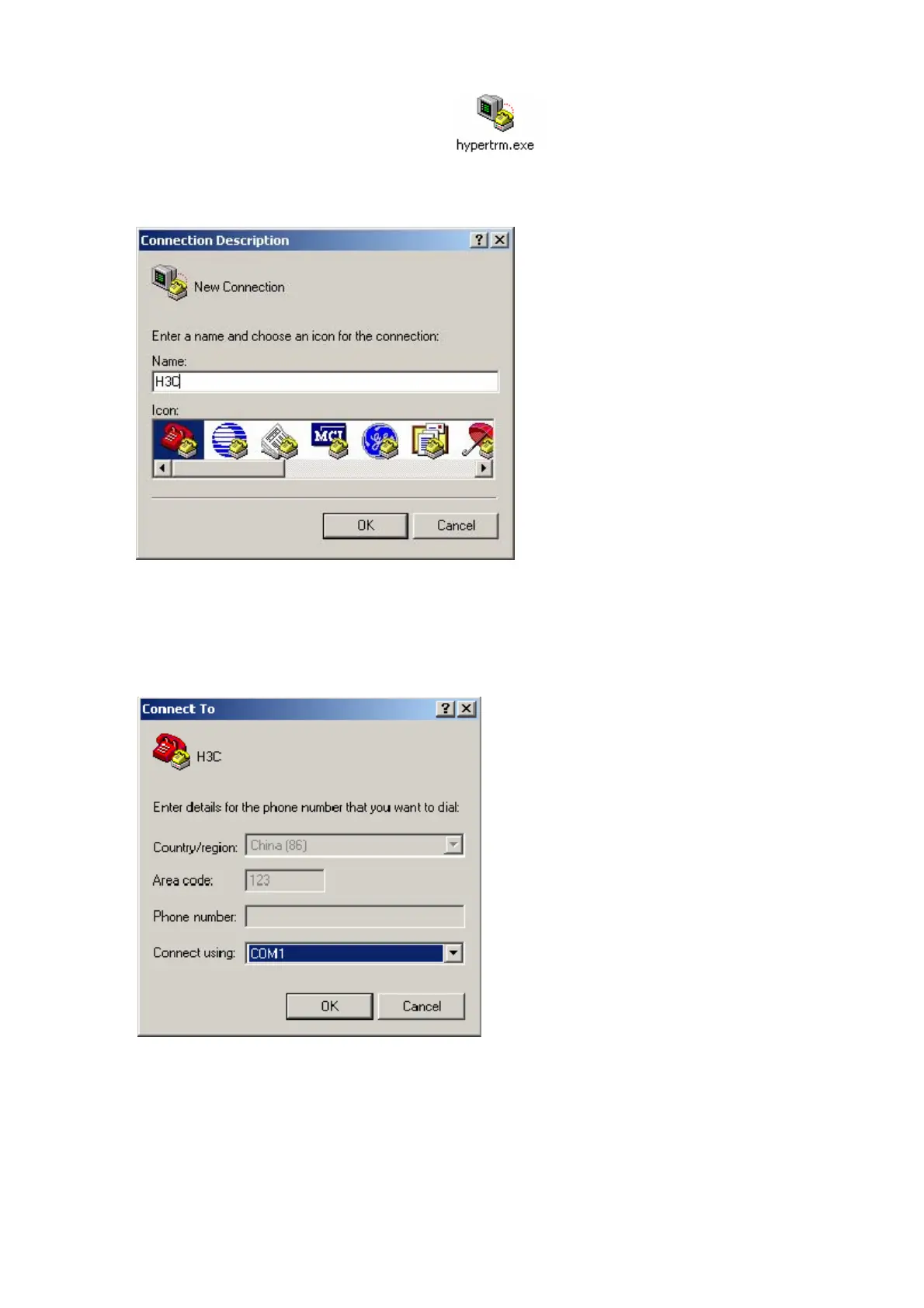

1) Select [Start/Program/Accessories/Communications/HyperTerminal] to enter the
HyperTerminal window, where click the
icon to establish a new connection. The
system displays the Connection Description interface, as shown in the following figure.
Figure 4-3 Connection description interface of HyperTerminal
2) Type in the name of the new connection in the connection description interface and click <OK>.
The system pops up the following interface. Select the serial port to be used from [Connect using].
Figure 4-4 Setting the serial port used by the HyperTerminal connection
3) Click <OK> after selecting a serial port and the system pops up the following interface. In the
interface, set the bits per second to 9600, data bits to 8, parity check to none, stop bits to 1, and
flow control to none.
