H3C S5120V2-SI

48

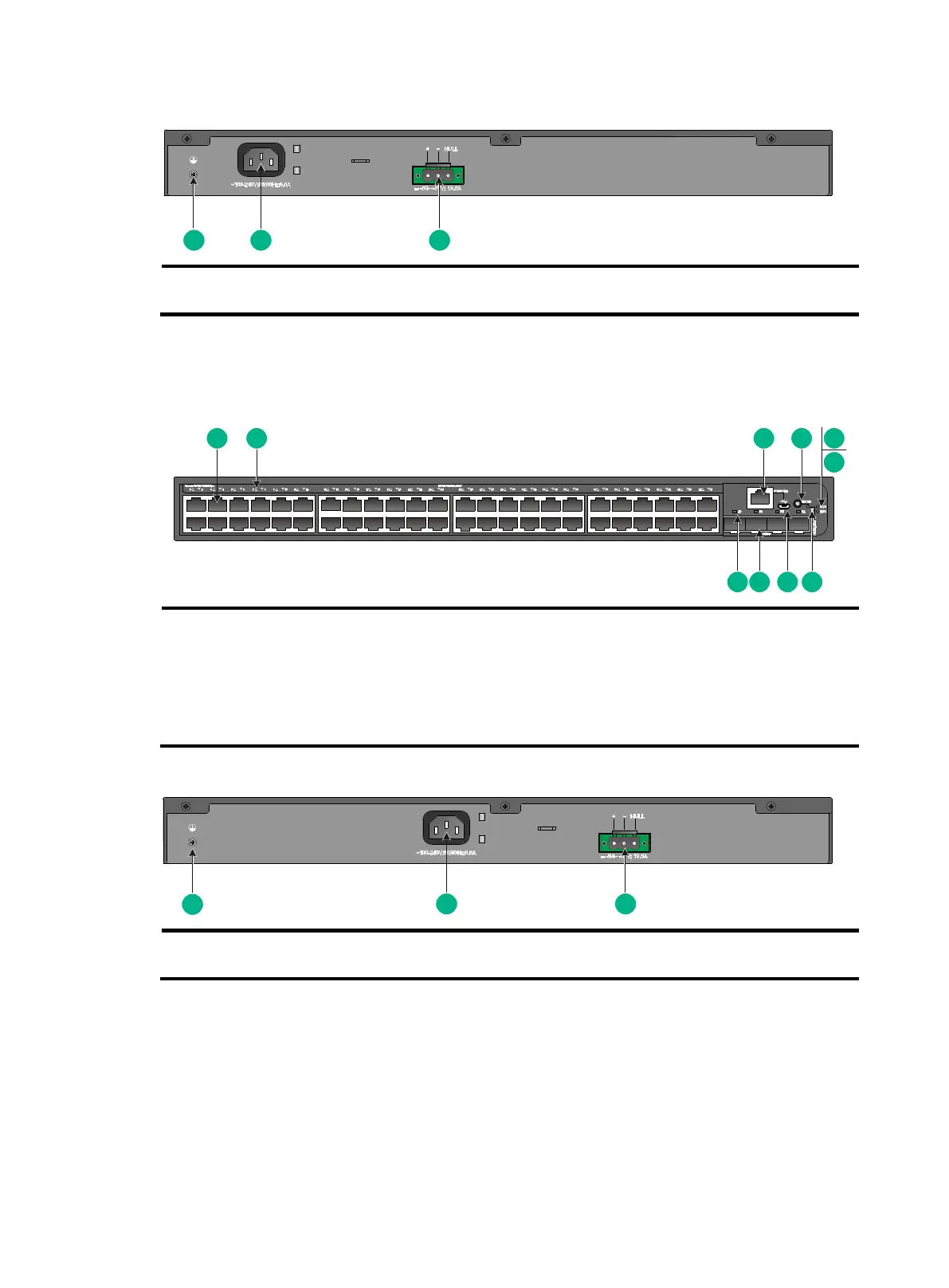

Figure 61 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5130S-52S-PWR-LI
Figure 62 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE)
(4) Mode button
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) Micro USB console port
(9) SFP+ port
(10) SFP+ port LED
Figure 63 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
1
2
3
1 3 4
6
2
5
7810 9
1
2 3
