H3C S5120V2-SI

65
S3100V3-10TP-PWR-SI

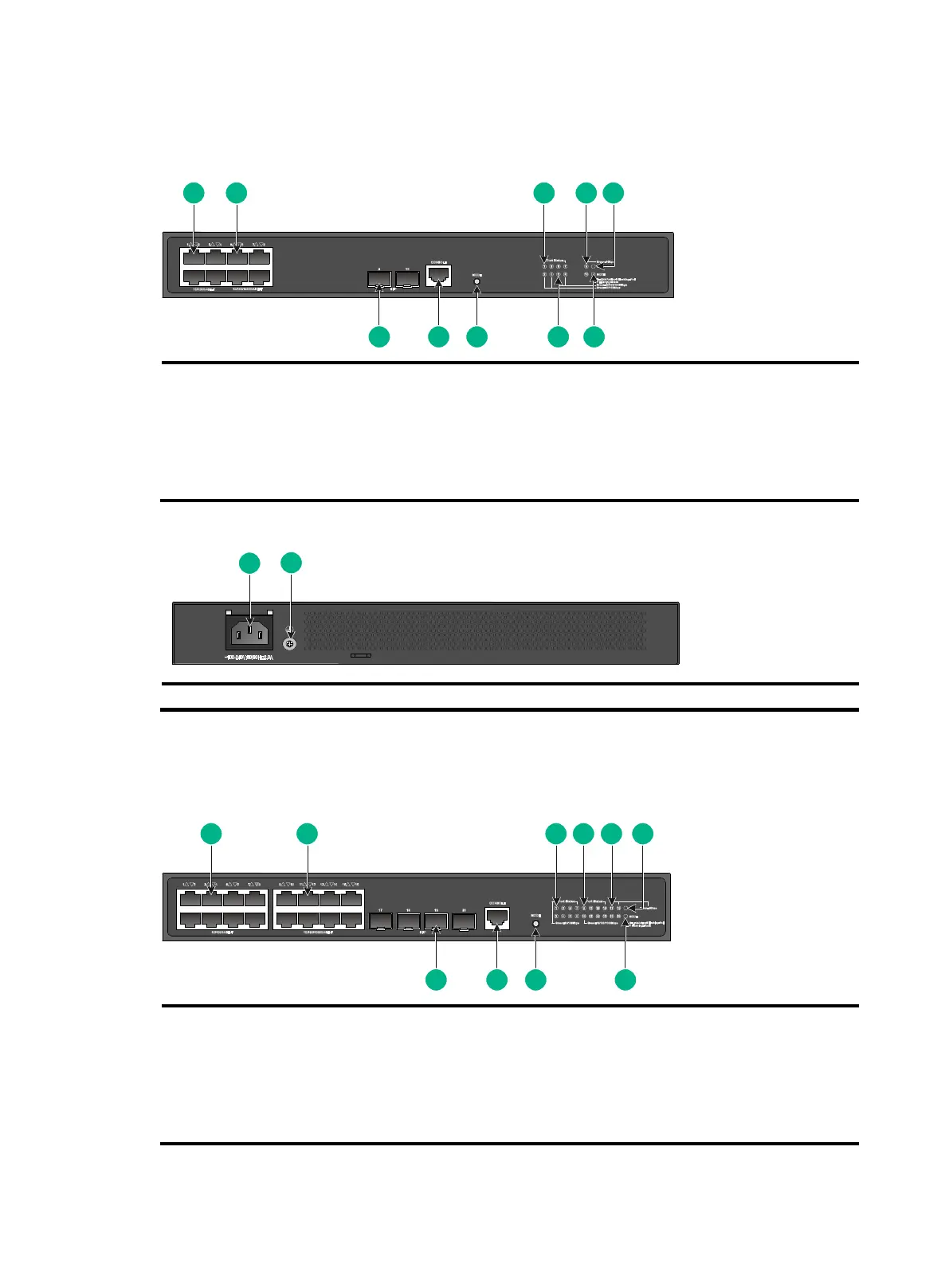

Figure 112 Front panel
(1) 10/100BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port
(3) 10/100BASE-T autosensing Ethernet port LED
(4) SFP port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) 10/100/1000BASE-T autosensing Ethernet port LED
(8) Mode button
(9) Console port (CONSOLE)
(10) SFP port
Figure 113 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
S3100V3-20TP-PWR-SI
Figure 114 Front panel
(1) 10/100BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port
(3) 10/100BASE-T autosensing Ethernet port LED
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) SFP port LED
(6) System status LED (SYS)
(7) Mode LED (MODE)
(8) Mode button
(9) Console port (CONSOLE)
(10) SFP port
1
4
3
68
7
9
5
2
10
1
2
1
3 4
5
2
7
10
9
6
8
