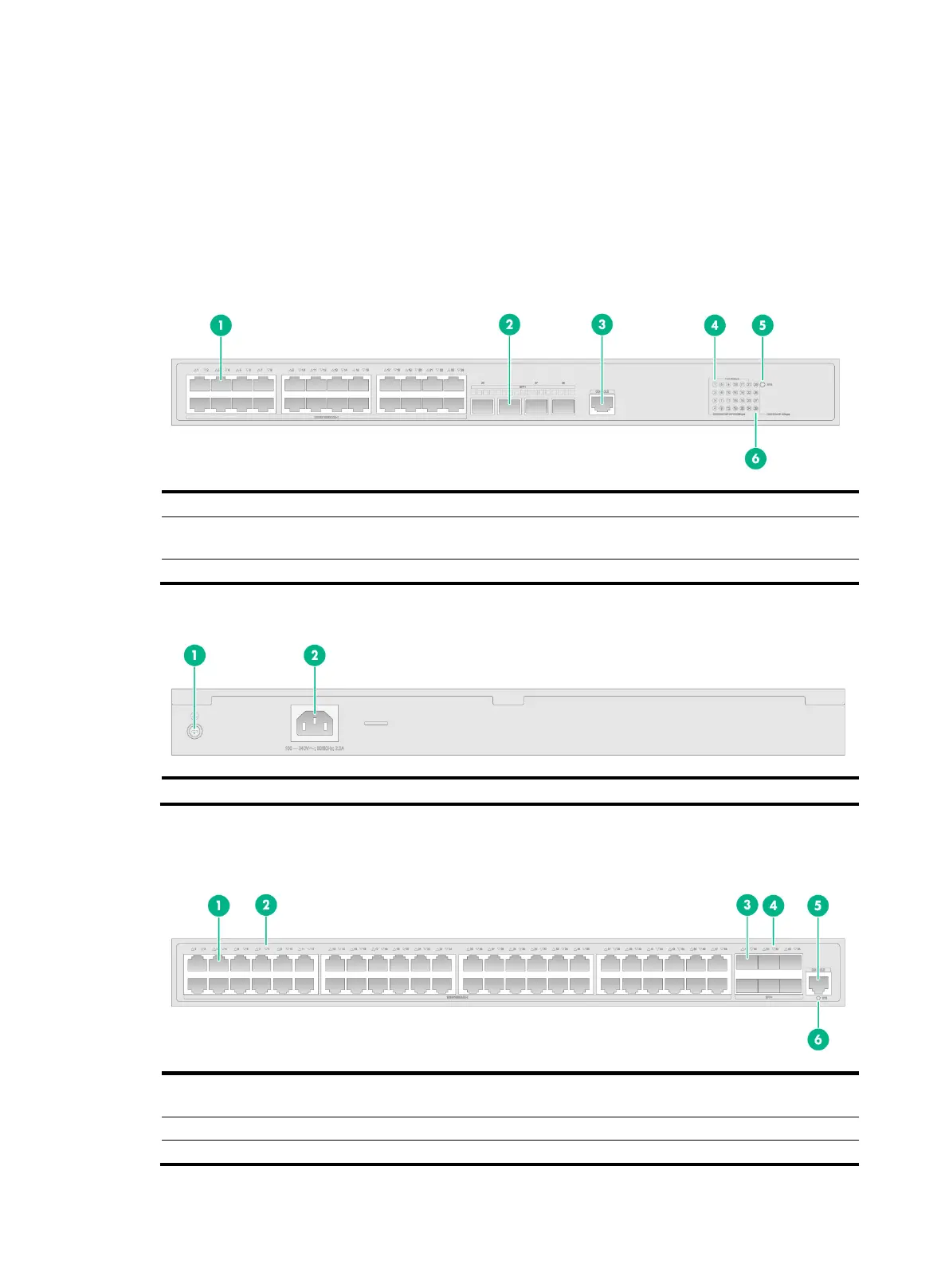

2 Chassis views
S5170-EI switch series
S5170-28S-EI
Figure2-1 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP+ port
(3) Serial console port (CONSOLE)
(4) 10/100/1000BASE-T autosensing Ethernet port
LED
(5) System status LED (SYS)
(6) SFP+ port LED
Figure2-2 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5170-54S-EI
Figure2-3 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port
LED
(4) SFP+ port LED
(6) System status LED (SYS)
