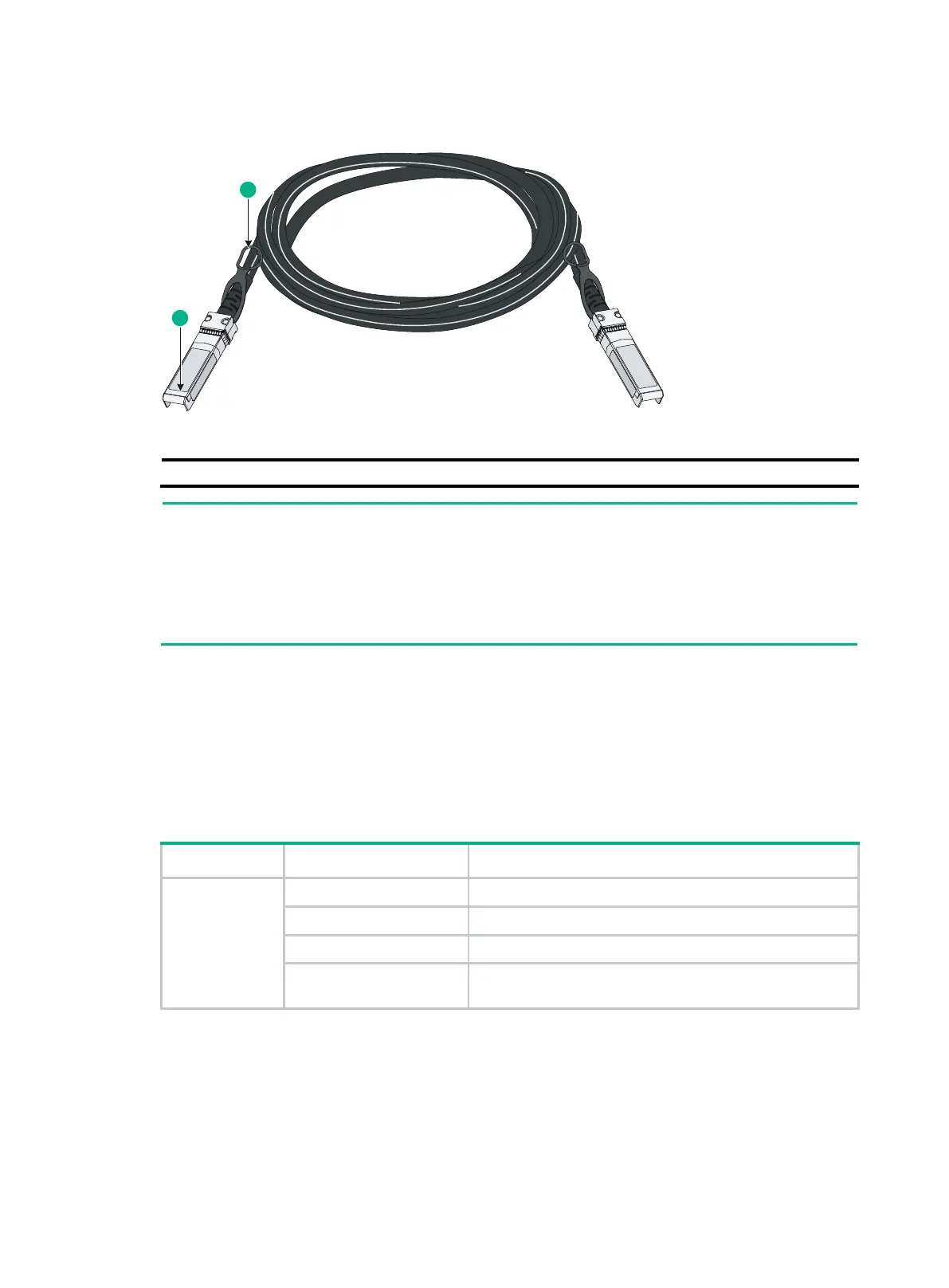

Figure4-1 SFP+ cable
(1) Connector
(2) Pull latch
NOTE:
•
As a best practice, use H3C transceiver modules and network cables for the switch.
•
The H3C transceiver modules and network cables
are subject to change over time. For the most
recent list of H3C transceiver modules and cables, contact H3C Support or marketing staff.
•
For the specifications of H3C transceiver modules and network cables, see H3C Transceiver
Modules User Guide.
LEDs
System status LED
The system status LED shows the operating state of the switch.
Table4-12 System status LED description
LED mark Status Description
SYS
Steady green The switch has started correctly.
Flashing green The switch is performing power-on self test (POST).
Steady red The switch has failed the POST or is faulty.
Off
The switch is powered off or the system has not started
correctly.
AC power status LED
The S5170-36F-EI-DP switch provides two AC power status LEDs on the rear panel to indicate the
AC power status.
1
2
