13

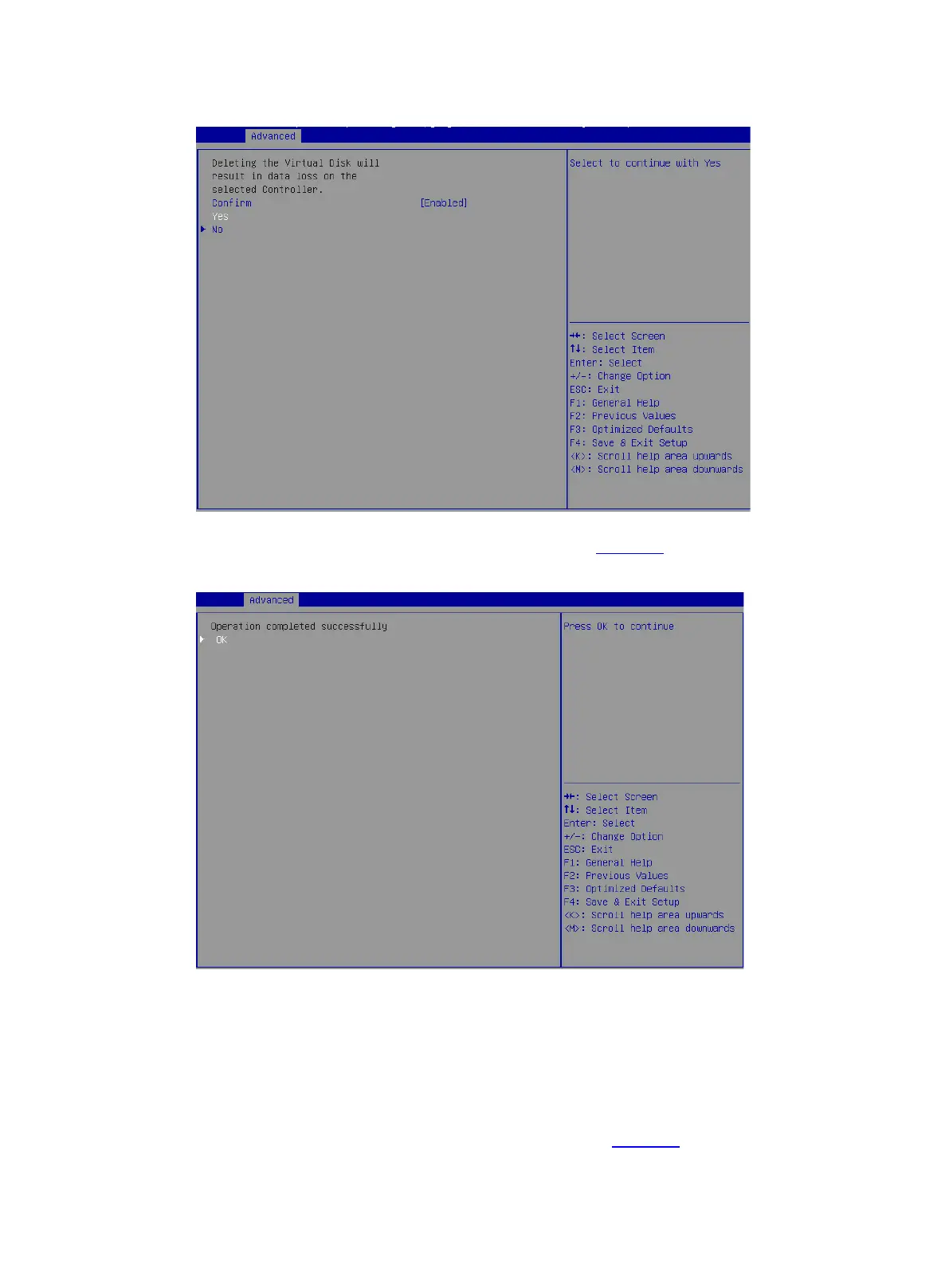

Figure 22 Confirming the deletion
When the operation is complete, the screen as shown in Figure 23 opens.
Figure 23 Completing the operation
Clearing RAID array information on the drive
This task allows you to clear remaining RAID array information on the drive for reconfiguring RAID
array on the drive.
To clear RAID array information on the drive:
1. On the storage controller configuration screen as shown in Figure 24, select Controller
Management and press Enter.
