8

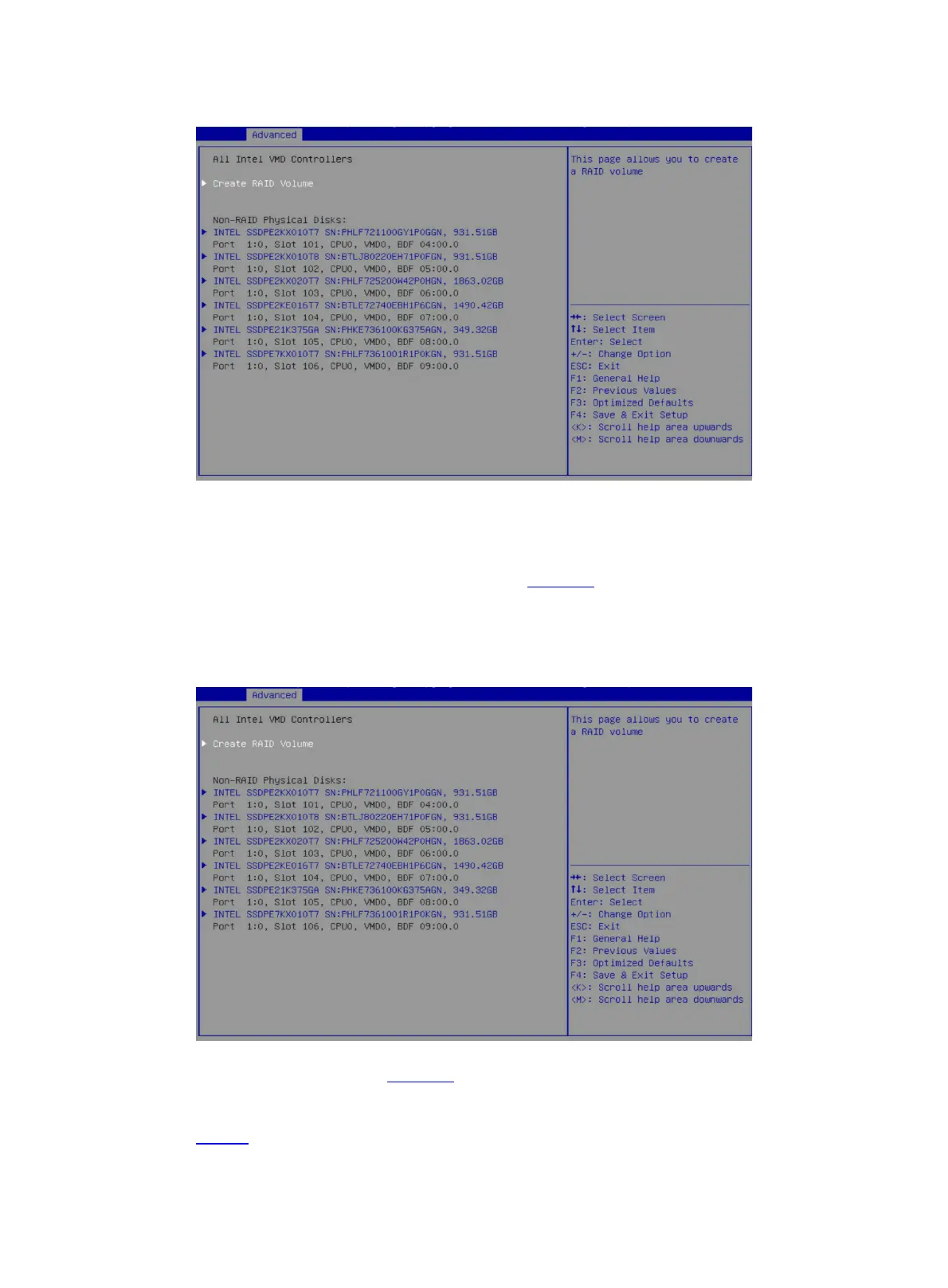

Figure 9 All Intel VMD Controllers screen
Configuring RAID arrays
1. On the RAID configuration screen as shown in Figure 10, select Create RAID Volume, and
press Enter.
The Create RAID Volume option is available only when the NVMe VROC module identifies
that a minimum of two non-RAID NVMe drives are present.
Figure 10 Selecting Create RAID Volume
2. On the screen as shown in Figure 11, set the Name, RAID Level, Select Disks, and Capacity
parameters, select Create Volume, press Enter, select Yes, and then press Enter to create
the RAID volume.
Table 5 describes the configuration parameters for creating a RAID volume.
