10

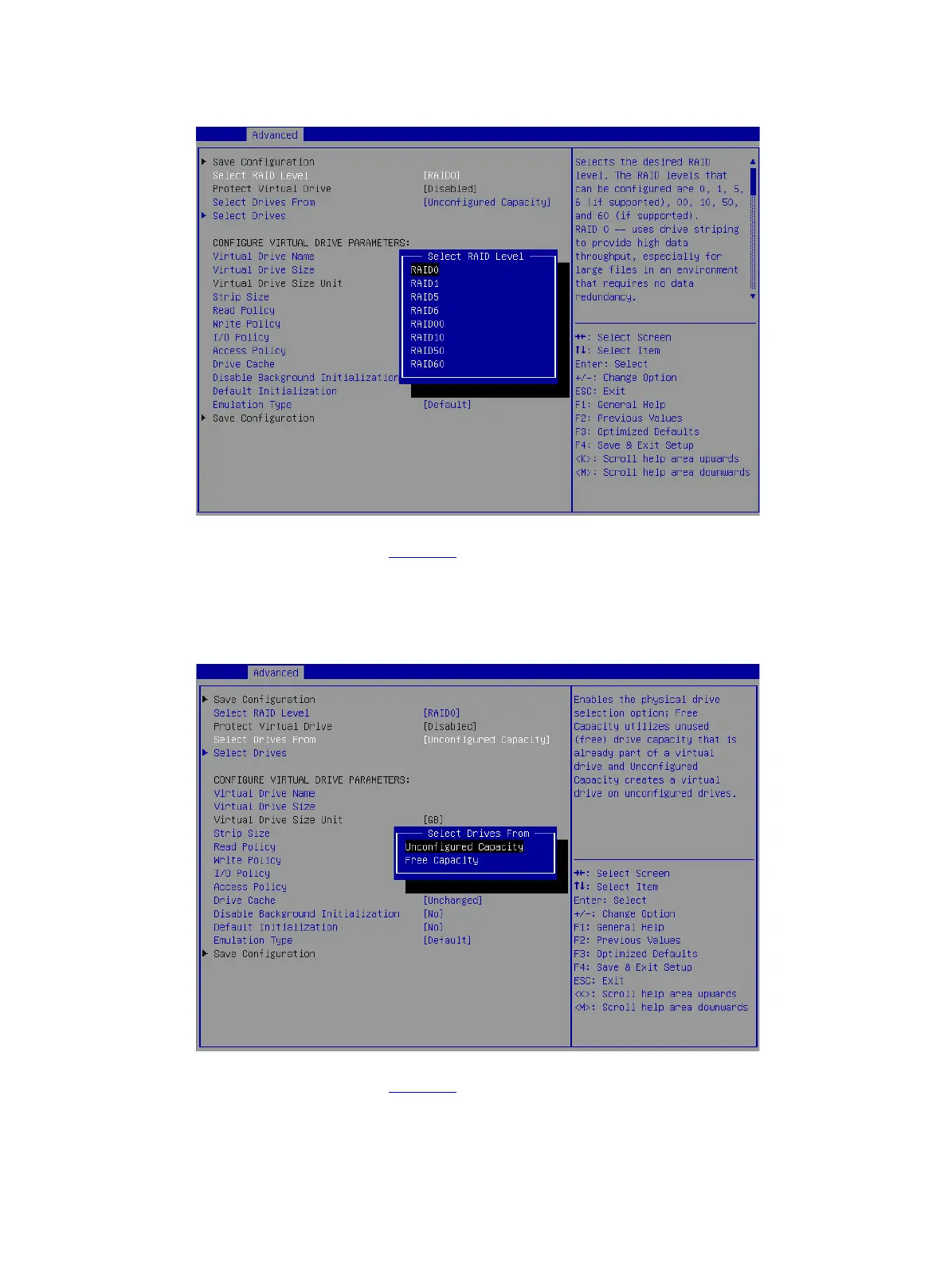

Figure 12 Setting the RAID level
4. On the screen as shown in Figure 13, select Select Drives From to set the drive capacity
source, and then press Enter.
Unconfigured CapacityThe capacity source is the unconfigured drives.
Free CapacityThe capacity source is the remaining drive capacity.
Figure 13 Setting the drive capacity source
5. On the screen as shown in Figure 14, select Select Drives and press Enter.
