11

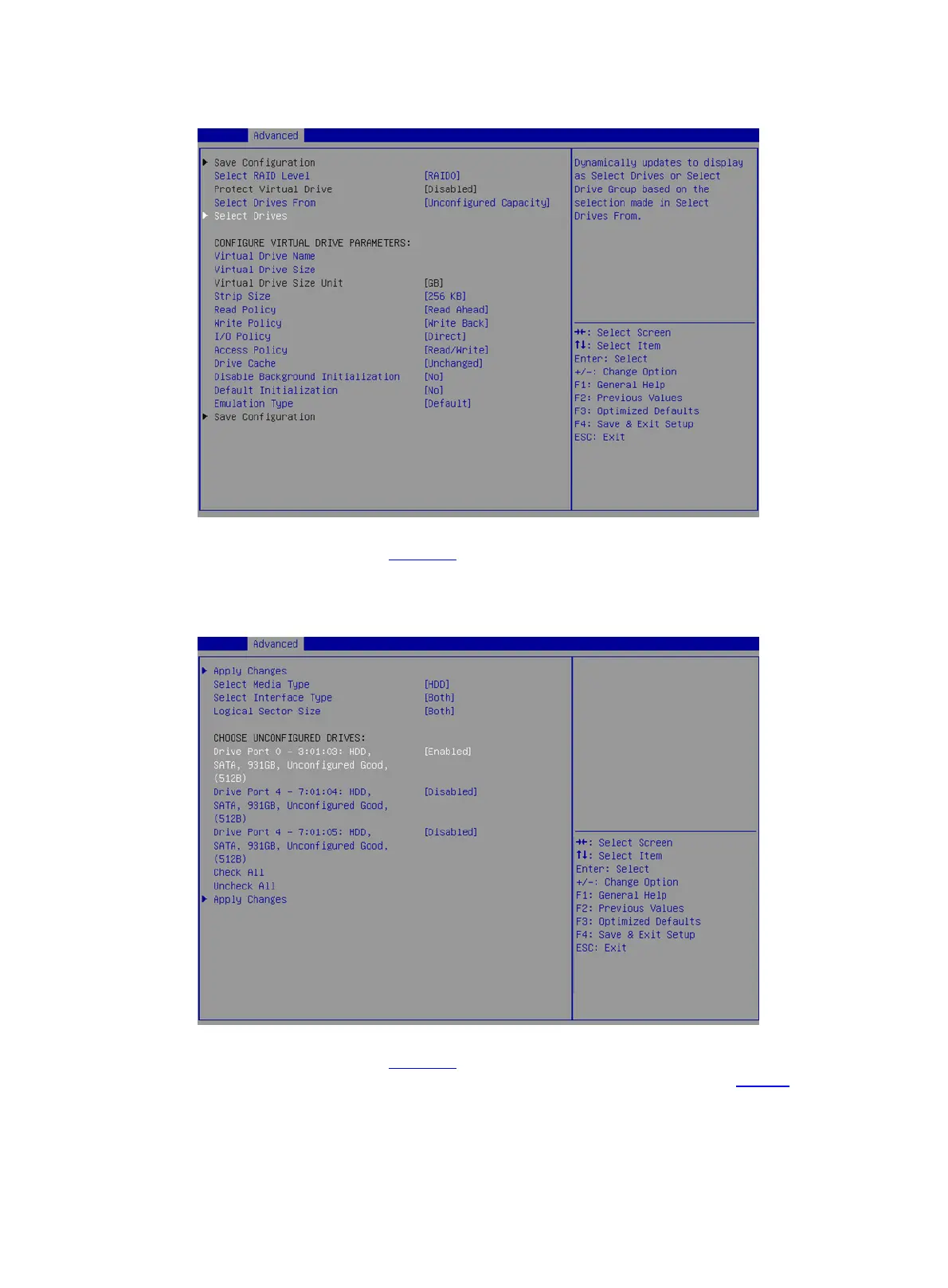

Figure 14 Selecting Select Drives
6. On the screen as shown in Figure 15, select the target drives. ([Enabled] following a drive
means that the drive has been selected.) Then, select Apply Changes and press Enter. A
drive in JBOD or Unconfigured Bad status cannot be selected.
Figure 15 Selecting the target drives
7. On the screen as shown in Figure 16, configure the parameters, select Save Configuration,
and press Enter. For more information about the parameter description, see Table 3.
To Next Page
