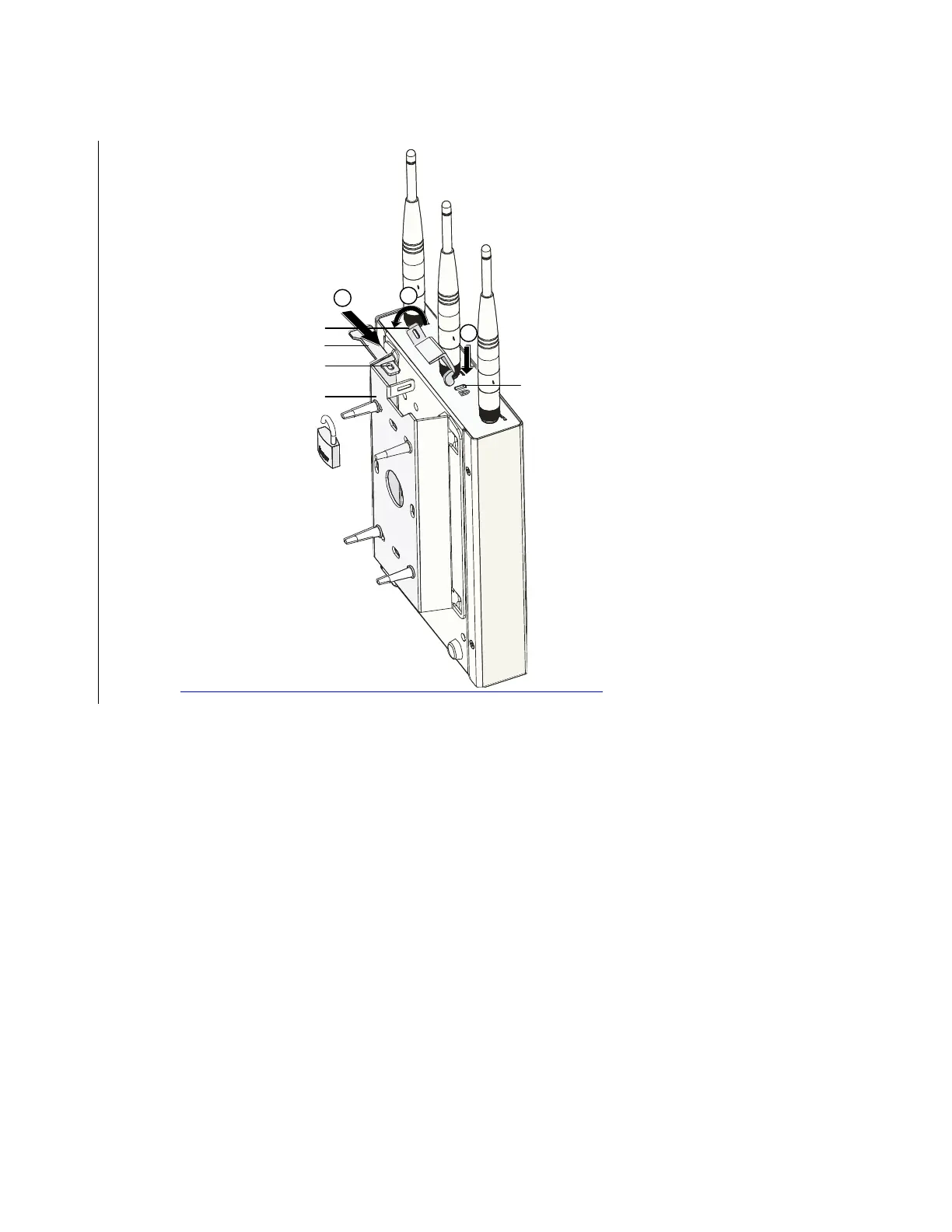

Figure 10
Lock the A
P o
nto t
h
e wa
l
l bra
cket
Locking plate
Latch
Locking hole
Wall-mounting bracket
Security slot
1
2
3
19
21
Table of Contents
Table of Contents
3
Product Overview
5
Introduction
5
Hardware Configuration
6
Leds
6
Interfaces
8
Installation Preparations
11
Unpacking and Inspection
11
Installation Tools
12
Installation Site Examination
12
Temperature and Humidity Requirements
12
Power Supply
12
Grounding and Lightning Protection
14
Installing the
16
Determining the Installation Position
16
Installing the AP on a Wall
16
Installing the Wall-Mounting Bracket on the Wall
16
Installing the AP on the Wall-Mounting Bracket
18
Optional: Locking the AP Onto the Wall-Mounting Bracket
19
Connecting the Power Supply
21
Local Power Supply
21
Power over Ethernet (Poe)
21
Connecting the AP to the Network
22
Support and Other Resources
23
Related Documentation
23
Obtaining Documentation
23
Technical Support
24
Documentation Feedback
24
