Connecting the power supply
Local power supply

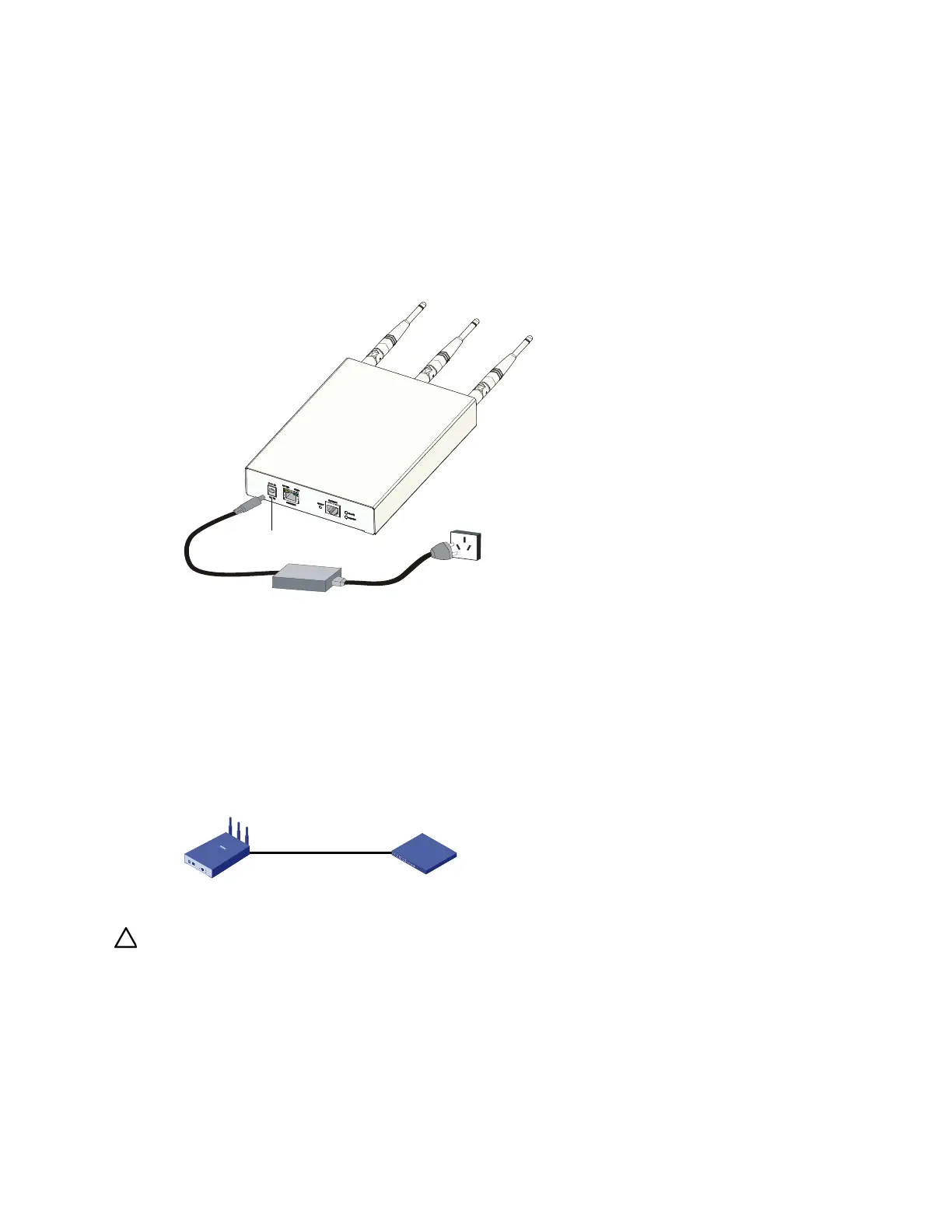

Connect the AP to the power source through the power adapter (see Figure 11
Figure 11 Local power supply connection
Power over Ethernet (PoE)
If the uplink device of the AP is a PoE-capable switch, use an Ethernet cable to connect
the Ethernet interface of the AP to the PoE-capable device (see Figure 12
Figure 12 PoE connection
CAUTION:
 In the PoE mode, you do not need to connect the power interface to a power source. You
only need to connect one end of an Ethernet cable to the Ethernet interface of the AP and
the other end to an Ethernet interface of the PoE-capable device (for example, an Ethernet
switch).
 Identify the interface type printed on the silkscreen of the device to avoid confusing the
console interface for the Ethernet interface and vice versa.
Power adaptor
Power interface
AP POE switch
Ethernet cable
