H3C WA2600 Enhanced Series User Manual

130
Table 59 Field description
Item Descri
p
tion
IP Address Assigned IP address.
Client MAC Address/Client ID Client MAC address or client ID bound to the IP address.
Pool Name Name of the DHCP address pool where the IP address belongs.
Lease Expiration Lease time of the IP address.
DHCP server configuration example
Network requirements
As shown in Figure 130, DHCP clients on subnet 10.1.1.0/24 obtain IP addresses dynamically from the
DHCP server (AP). The IP address of VLAN-interface 1 of the AP is 10.1.1.1/24.
In subnet 10.1.1.0/24, the address lease duration is ten days and twelve hours and the gateway address
is 10.1.1.2.

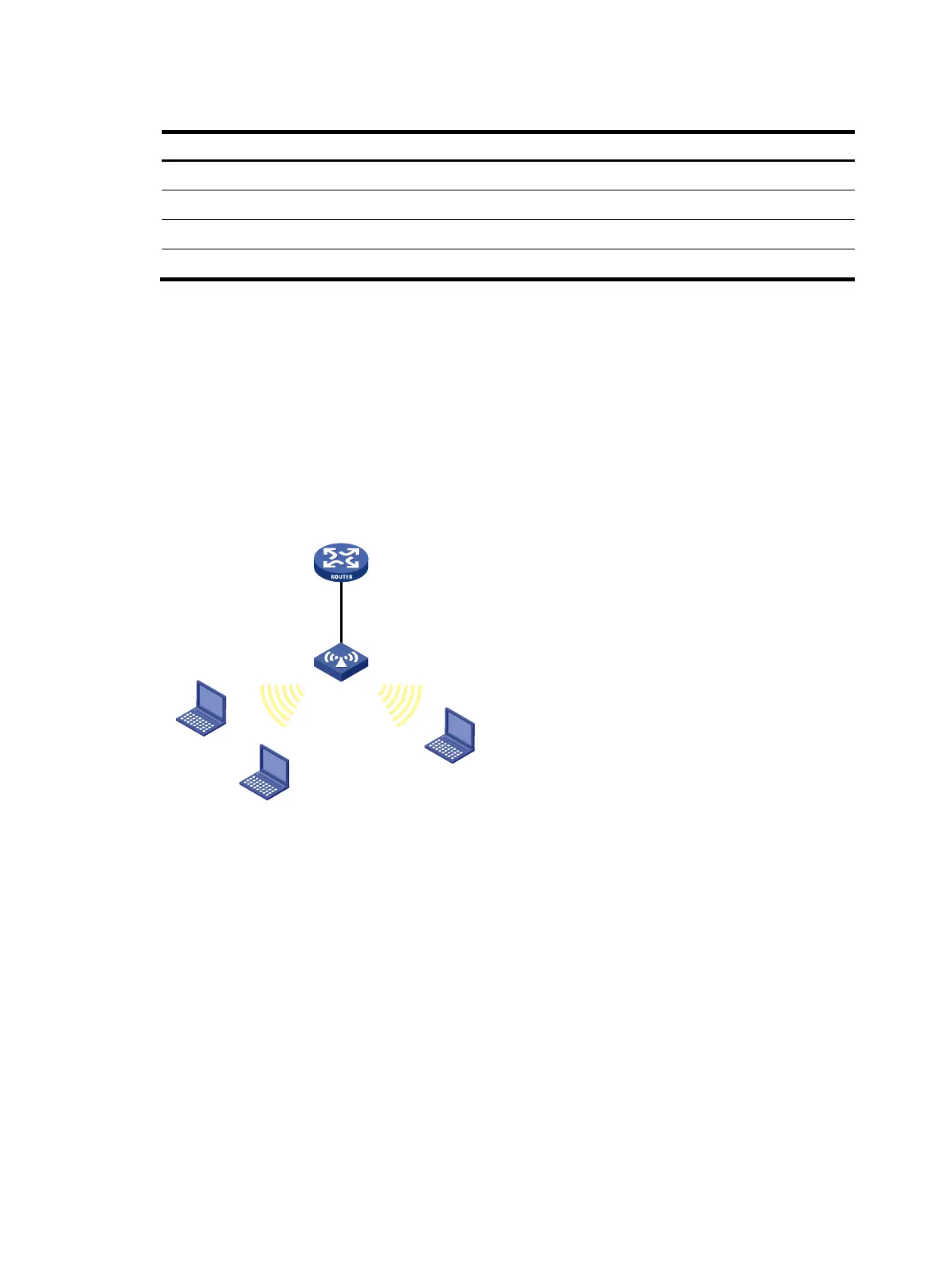

Figure 130 Network diagram (on a fat AP)
Configuration procedure
1. Enable DHCP:
a. Select Network > DHCP from the navigation tree to enter the default DHCP Server page.
b. Select the Enable option in the DHCP Service field, as shown in Figure 131.
DHCP client
AP
DHCP server
Vlan-int1
WLAN-BSS1
10.1.1.1/24
DHCP client
DHCP client
Vlan-int1
WLAN-BSS2
10.1.1.1/24
Vlan-int1
10.1.1.1/24
Eth1/1
10.1.1.2/24
