Enabling SNMP

1. Select Device > SNMP from the navigation tree.

The SNMP configuration page appears.

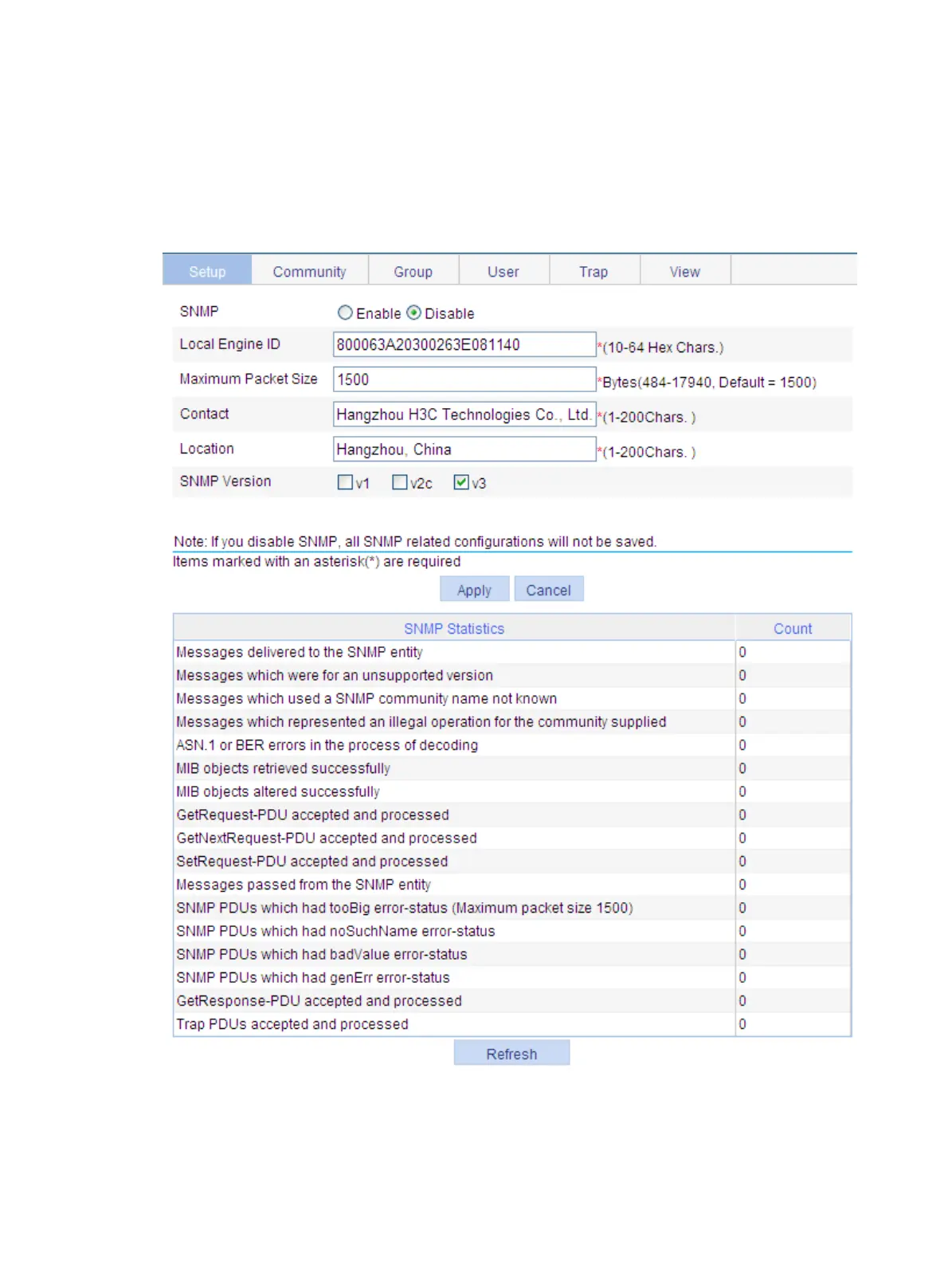

Figure 61 Setup page

2. Configure SNMP settings on the upper part of the page as described in Table 37.

3. Click Apply.
