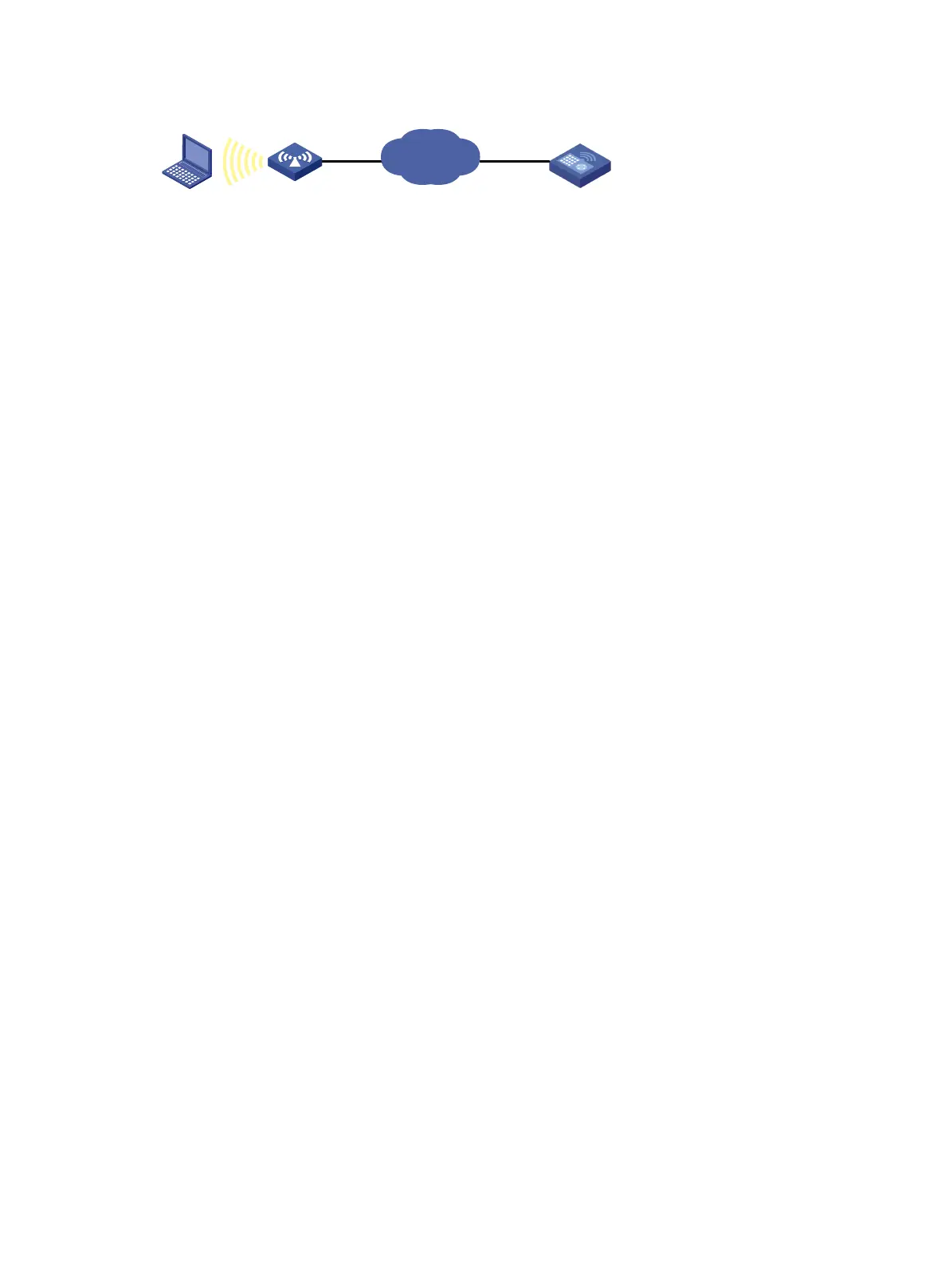

Figure 7 Network diagram
Configuration procedure
# Create advanced ACL 3000, and configure a rule to match packets whose source port number is
not 21.
<AC> system-view
[AC] acl advanced 3000
[AC-acl-ipv4-adv-3000] rule 0 permit tcp source-port neq 21
[AC-acl-ipv4-adv-3000] quit
# Create a traffic class named classifier_1, and use ACL 3000 as the match criterion in the traffic
class.
[AC] traffic classifier classifier_1
[AC-classifier-classifier_1] if-match acl 3000
[AC-classifier-classifier_1] quit
# Create a traffic behavior named behavior_1, and configure the traffic filtering action to drop
packets.
[AC] traffic behavior behavior_1
[AC-behavior-behavior_1] filter deny
[AC-behavior-behavior_1] quit
# Create a QoS policy named policy, and associate traffic class classifier_1 with traffic behavior
behavior_1 in the QoS policy.
[AC] qos policy policy
[AC-qospolicy-policy] classifier classifier_1 behavior behavior_1
[AC-qospolicy-policy] quit
# Apply the QoS policy named policy to the incoming traffic of GigabitEthernet 1/0/1.
[AC] interface gigabitethernet 1/0/1
[AC-GigabitEthernet1/0/1] qos apply policy policy inbound
AC
IP network
APClient
GE 1/0/1
