Haas Mini Mill User Manual

ES0205l 12-00
4

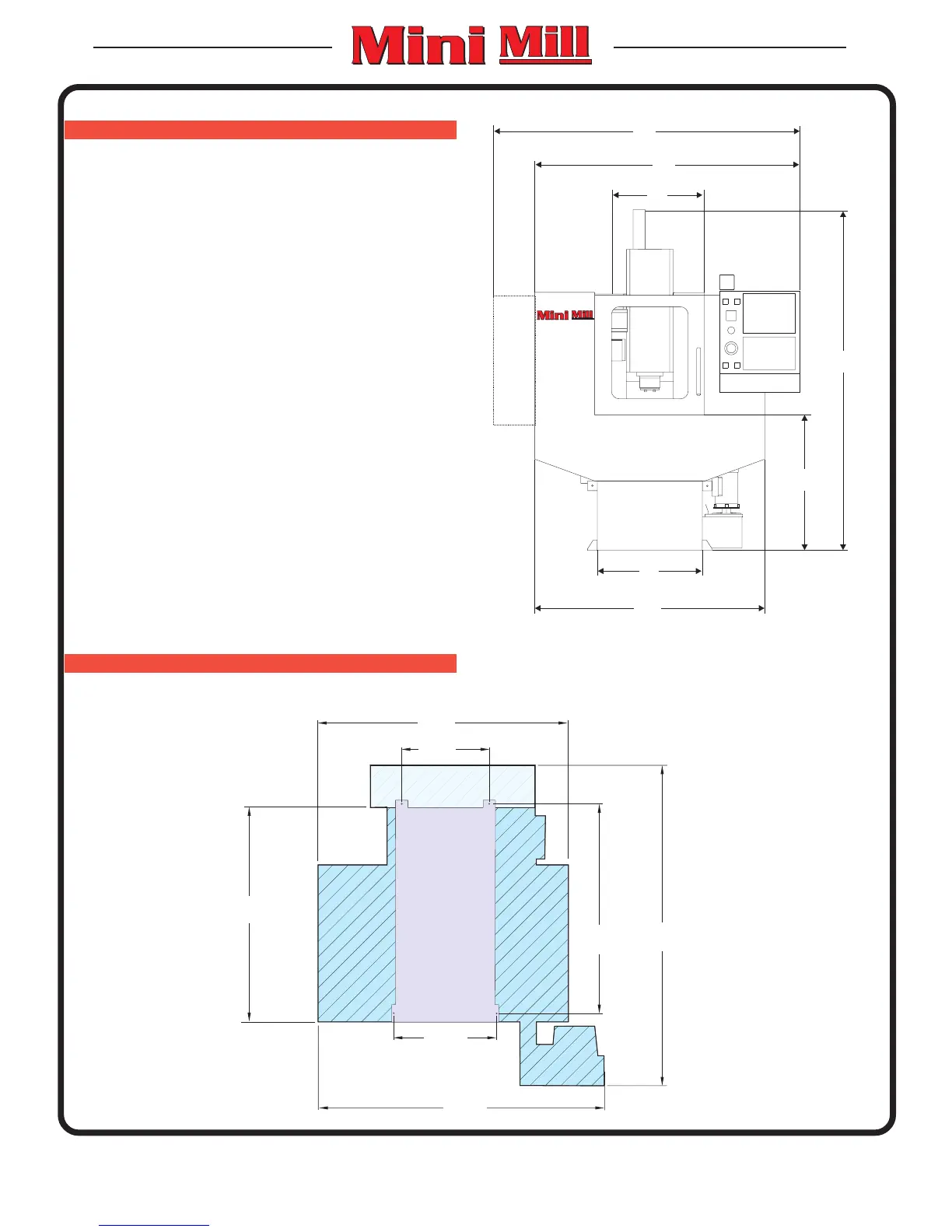

MINI M ILL D IMENSIONS
A - Maximum Width, Door Open 78.00 1981 mm
B - Maximum Width, Door Closed 68.14 1731 mm
C - Door Opening Width 24.00 610 mm
D - Maximum Operating Height 98.00 2489 mm
E - Door Opening Height 34.81 884 mm
F - Base Width 34.00 864 mm
G - Minimum Machine Width 60.00 1524 mm
MINI MILL FOOTPRINT
68.14
(173.08 cm)
60.00
(152.40 cm)
54.00
(137.16 cm)
80.09
(203.43 cm)
23.00
(58.42 cm)
31.00
(78.74 cm)
50.00
(127.00 cm)
B
C
A
F
G
E
D

Haas Mini Mill Specifications

General

Spindle Speed	6, 000 rpm
X Axis Travel	406 mm (16 in)
Y Axis Travel	305 mm (12 in)
Z Axis Travel	254 mm (10 in)
Spindle Power	5.6 kW (7.5 hp)
Tool Capacity	10 tools
Table Size	914 mm x 305 mm (36 in x 12 in)
Spindle Taper	CT40
Rapid Traverse X Axis	15.2 m/min (600 in/min)
Rapid Traverse Y Axis	15.2 m/min (600 in/min)
Rapid Traverse Z Axis	15.2 m/min (600 in/min)
