Haas Mini Mill User Manual

ES0205l 12-00
6
BEAM STYLE LIFTING
MINI MILL
Haas Automation does not provide a lifting kit for the Mini Mill. It is up to the Riggers you select to provide the
means to lift and position your Mini Mill. Refer to the figure below for lifting points; beware of the areas high-
lighted.

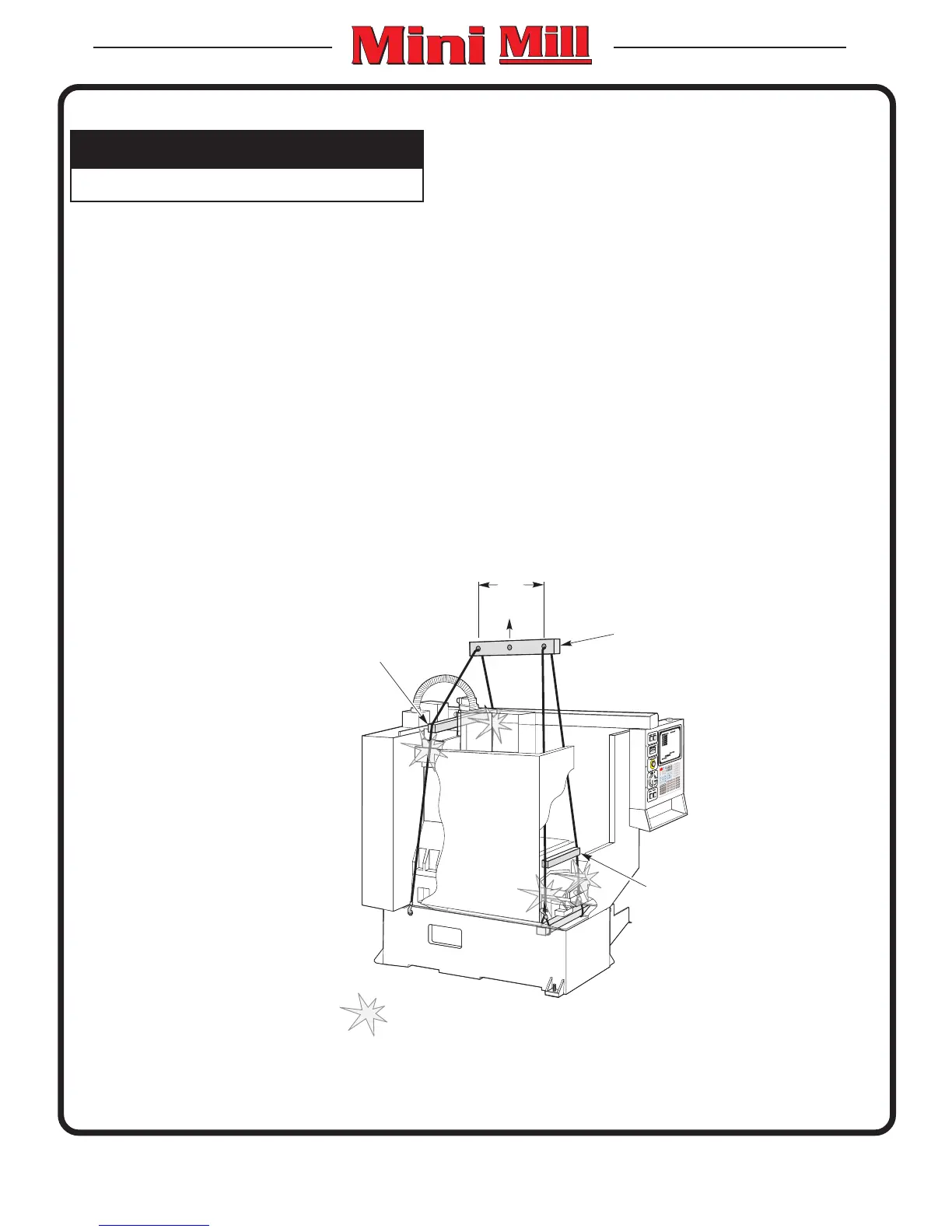

- Attach the lifting chain and hooks to the lifting points as shown in the figure below, ensuring that
the chain does not come in contact with any part of the machine's sheet metal enclosure or
electrical cables.
* Spreader bars and spacer blocks are not provided.
When lifting the machine, slowly pull up on the chains until taut, then lift the machine ensuring the machine
remains balanced.
Before lifting the machine, ensure the machine is prepared for shipping as noted earlier in the VF Operators
Manual, Shipping the VMC section.
Rigging Beam
24” Spreader Bar
20” Spreader Bar
Watch this area
36”
3400 lbs.

Haas Mini Mill Specifications

General

Spindle Speed	6, 000 rpm
X Axis Travel	406 mm (16 in)
Y Axis Travel	305 mm (12 in)
Z Axis Travel	254 mm (10 in)
Spindle Power	5.6 kW (7.5 hp)
Tool Capacity	10 tools
Table Size	914 mm x 305 mm (36 in x 12 in)
Spindle Taper	CT40
Rapid Traverse X Axis	15.2 m/min (600 in/min)
Rapid Traverse Y Axis	15.2 m/min (600 in/min)
Rapid Traverse Z Axis	15.2 m/min (600 in/min)
