Haas VF-3

26
INSTALLATION
June 1999
96-8000

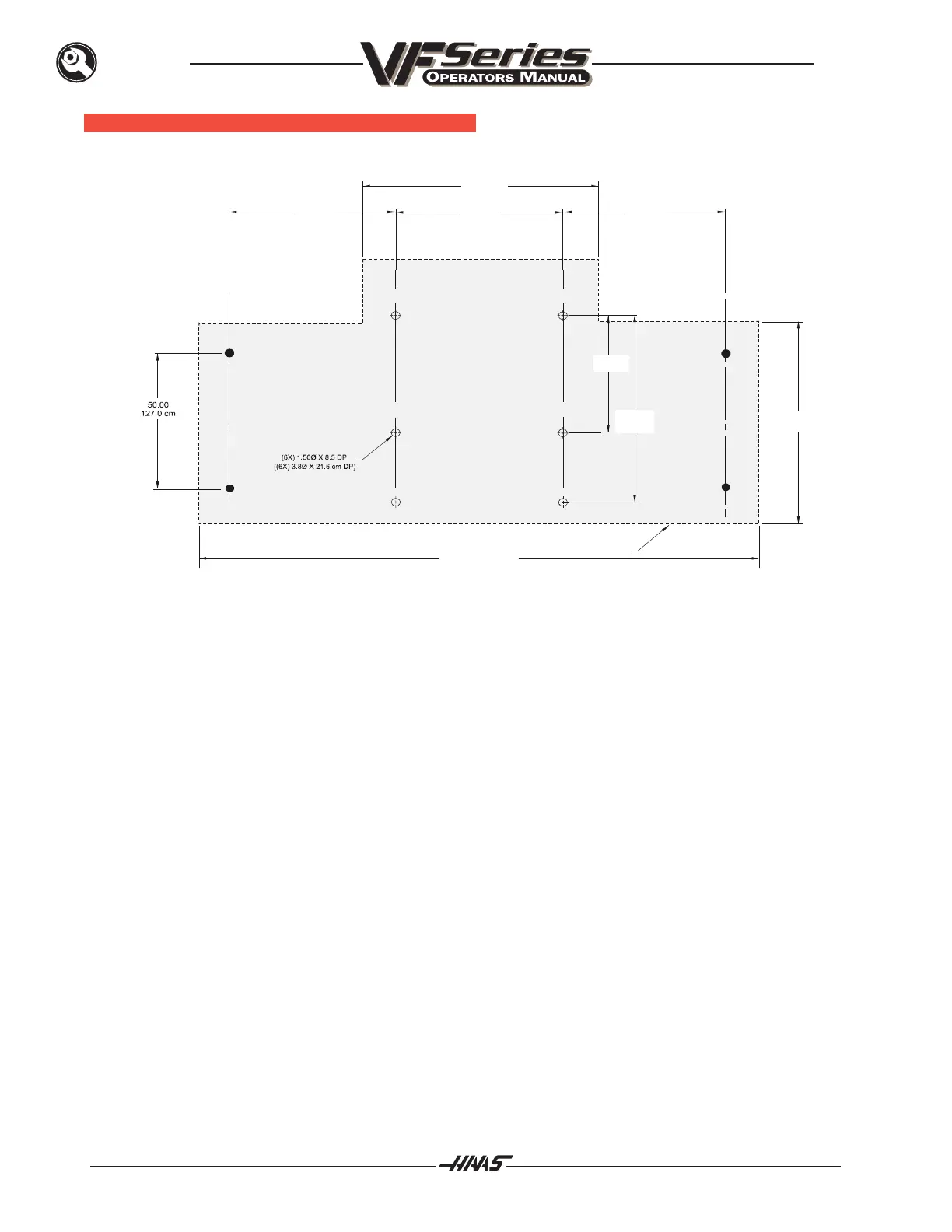

ANCHOR P ATTERN: VF-6/7/10
43.7 5
111.2 cm
60
111.2 cm
MACHINE
FRONT
57.75
146.7 cm
77.50
196.9 cm
Note: Foundation must extend at
least 1ft. from bored holes.
Machines with outriggers must have
the foundation extend at least 1 ft. from
the outri
gg
er levelin
g
pads.
60
111.2 cm
73.00
127.0 cm
201.50
511.8 cm
81.00
205.7 cm
FOUNDATION LINE
