3.10 OPERATORS CONTROL PANEL

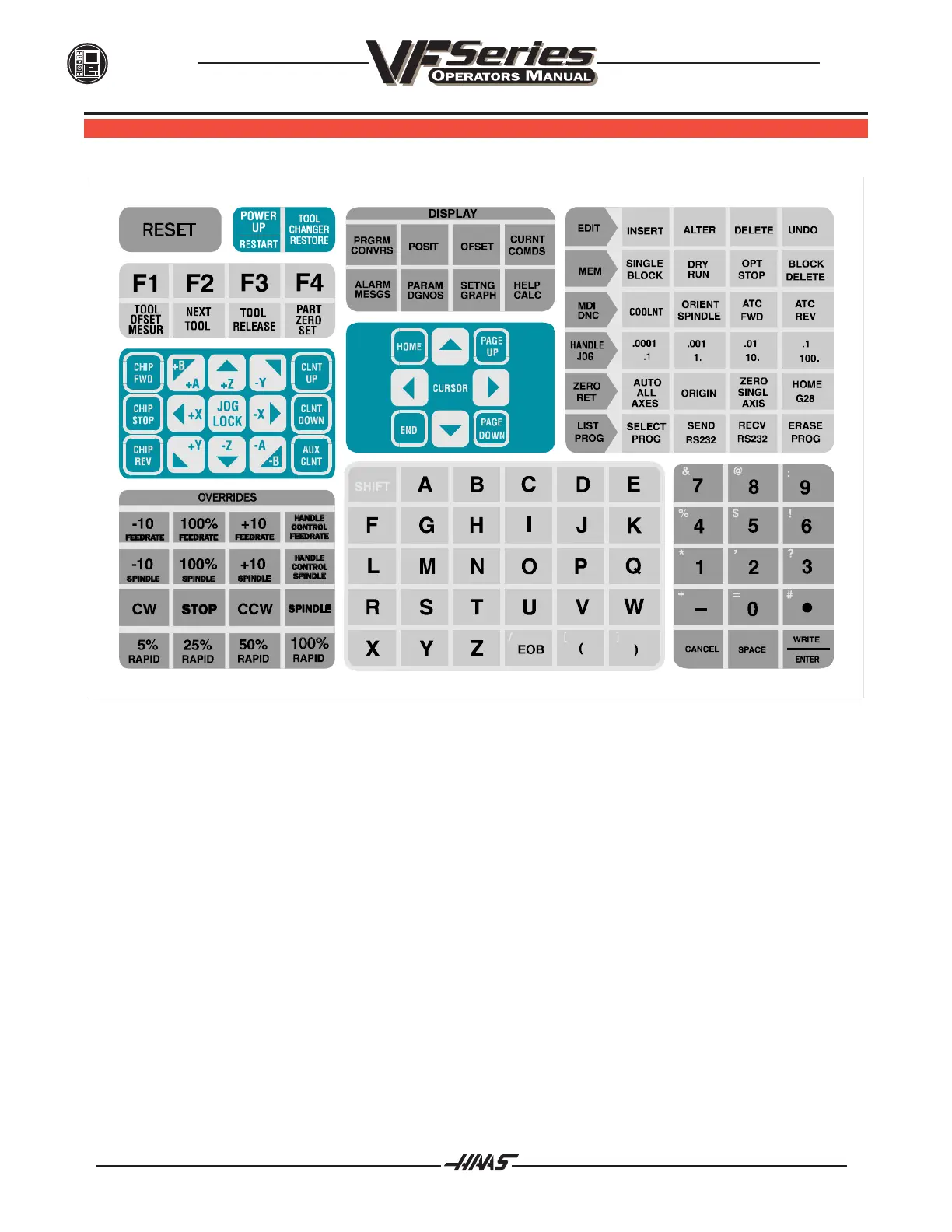

Figure 3-8 Control panel keypad with operating and display keys highlighted.
In operation, it is important to be aware of the operating mode selected for the CNC. There are six operating
modes and one simulation mode in this control. The operating mode is selected with the six buttons labeled:
EDIT To edit a program already in memory
MEM To run a program stored in memory
MDI / DNC To directly run manually entered program or to select DNC mode
HANDLE JOG To use jog keys or jog handle
ZERO RET To establish machine zero
LIST PROG To list, send, or receive programs
