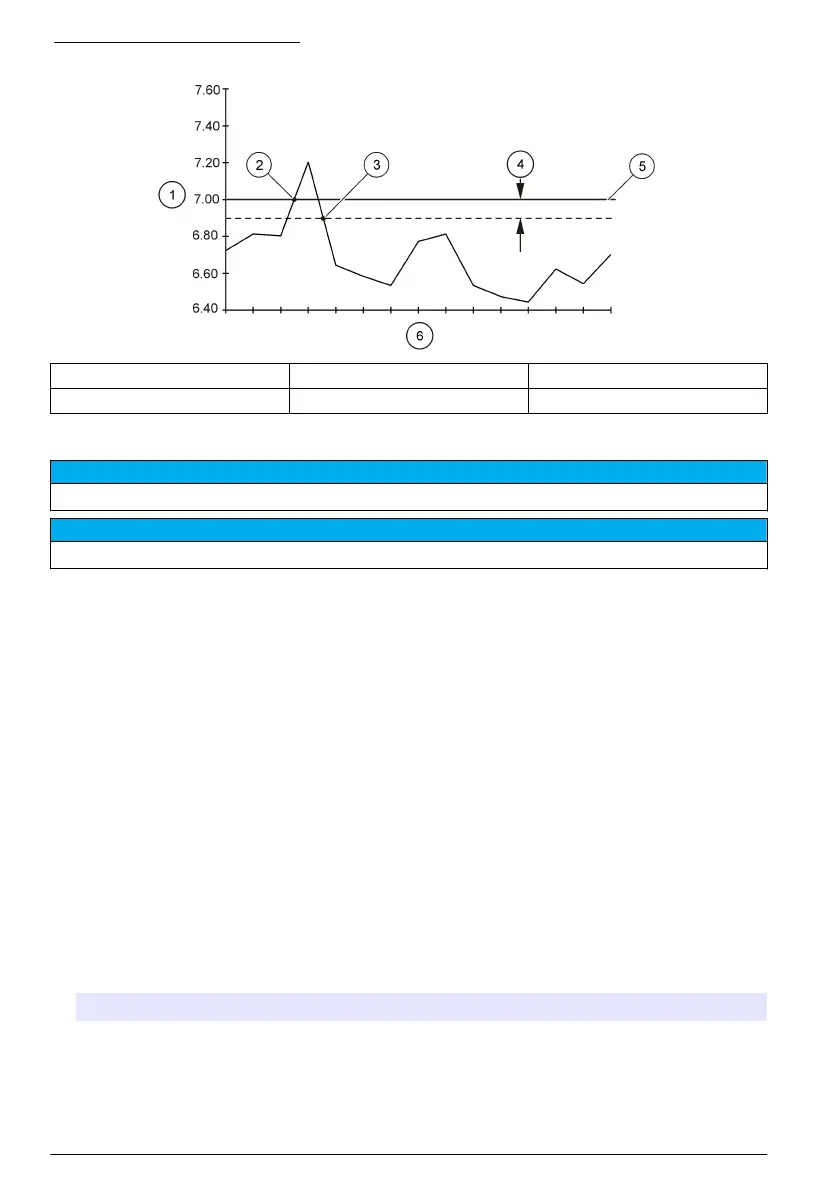

Figure 2 High setpoint example
1 Measurement value 3 Setpoint trigger off 5 Setpoint value
2 Setpoint trigger on 4 Deadband 6 Time
Sampling program configuration
N O T I C E
For flow-based sampling, configure the hardware settings before the sampling program is configured.
N O T I C E
When an alarm is used to control sampling, configure the alarms before the sampling program is configured.
The sampling program identifies:
• When a sample is collected (pacing)
• The volume of each sample
• The sample distribution among the bottles
• When the sampling program starts
• When the sampling program stops
Complete all the tasks that follow to configure the sampling program. Descriptions of the basic
sampling options are given in this document. For the advanced sampling options (e.g., cascade
sampling and synchronized sampling), refer to the expanded user manual on the manufacturer's
website.
Select the type of program
Select the type of sampling program to configure.
1. Push MENU.
2. Go to Programming>Sample Programming.
3. Select the first row.
4. Select an option.
Note: For descriptions of all the options, refer to the expanded user manual on the manufacturer's website.
Option Description
Custom Single One sampling program.
Custom Dual Dual sampling program. The bottles in the sampler are divided between two sampling
programs. The two sampling programs can operate in parallel, in series or independently
(default).
12 English
To Next Page
