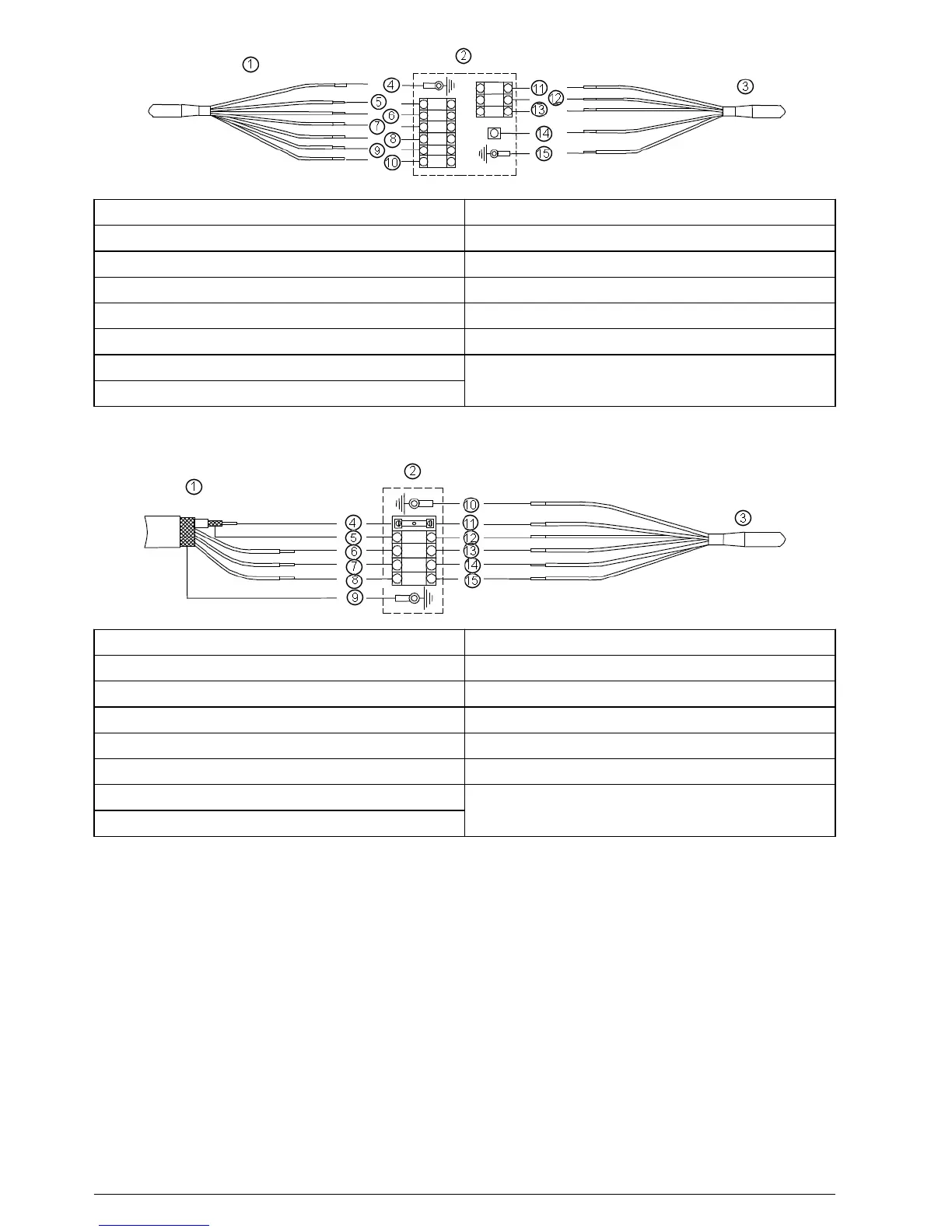

1 Model 2666 cable 9 -V - grey
2 Model 08350=A=8000 pre-amplifier 10 Input (measured pH or ORP) - green
3 Sensor 11 Temp+ (Pt100) - red
4 External shielding - EMC protection 12 Temp- (Pt100) - white
5 Temp+ (Pt100) - white 13 Ref. (reference) - black
6 Temp- (Pt100) - pink 14 Input (measured pH or ORP) - clear
7 Ref. (reference) - yellow 15 External shielding - EMC protection
8 +V - brown
Using the junction box
1 Model 2654 cable 9 External shielding - EMC protection
2 Model 08350=A=8500 junction box 10 External shielding - EMC protection
3 Sensor 11 Input (measured pH or ORP) - clear
4 Input (measured pH or ORP) - core 12 Ref. (reference) - black
5 Ref. (reference) - shielding 13 Temp+ (Pt100) - red
6 Temp+ (Pt100) - white 14 Temp- (Pt100) - white
7 Temp- (Pt100) - violet 15 Liquid earth (liquid contact) - blue
8 Solution ground (liquid contact) - yellow/green
For pH sensors only:
• Temperature measurement
• Impedance measurement (blue wire from the controller):
• Program the control frequency upper and lower limits (refer to the 9500 user manual):
• Glass impedance: 50 Mohm to 500 Mohm
• Reference impedance: 1 to 100 kohm
Calibration
Before calibrating for the first time:
1. Shake the probe gently to remove any air bubbles from underneath the glass bulb.
2. Remove the storage cap and rinse the probe with demineralized water.
6
