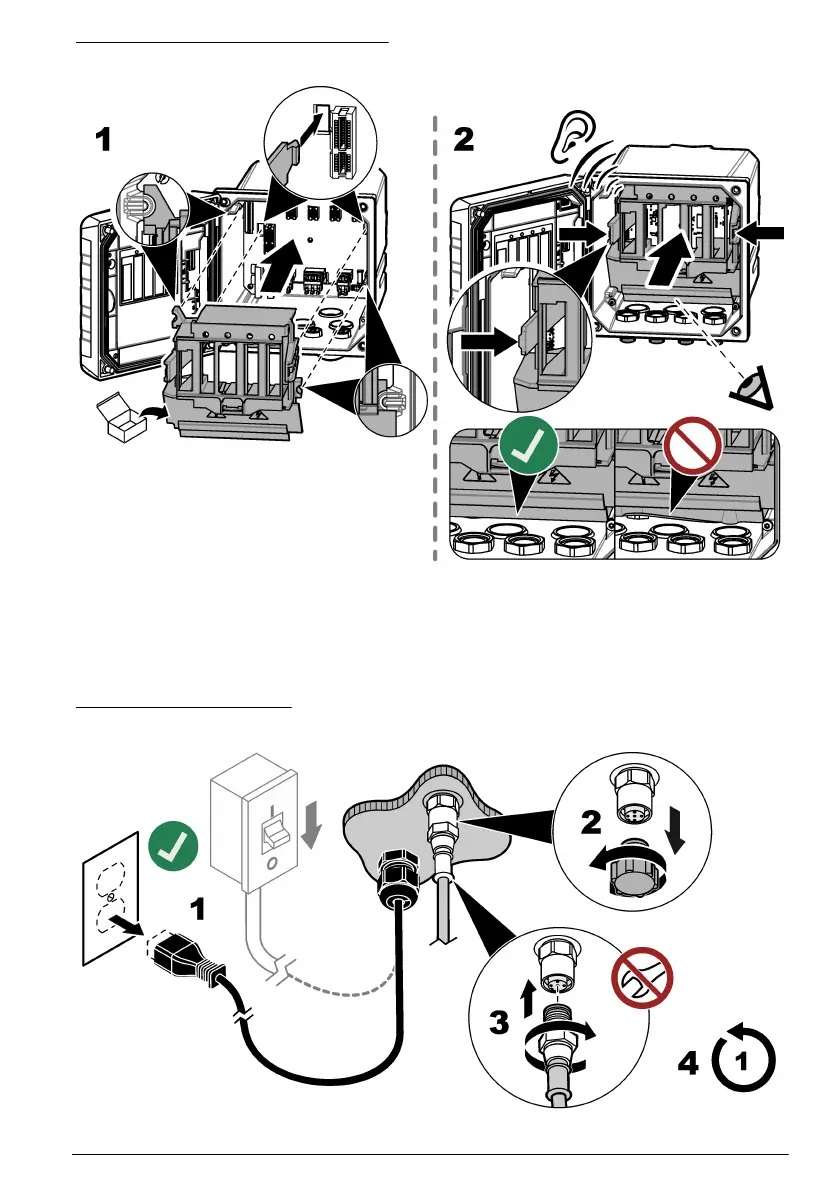

Figure 11 Install the high voltage barrier
3.5 Connect measurement devices
Connect digital devices (e.g., sensors and analyzers) to the device connectors on the instrument.
Refer to Figure 12. Keep the device connector caps for future use.
Make sure that the device cables do not cause a trip hazard and do not have sharp bends.
Figure 12 Connect a device
English 21
