CAUTION!
Do not use grease for lubrication of load chain.
Without lubrication, manufacturer's warranty and/or liability will be void.
14.2 Pulleys
14.3 Load hook
Check bearings and pulleys yearly
Clean and lubricate the bearings of hooks and pulleys with grease
Slight bearings are maintenance free
When bearings resp. slight bearings are worn of, change the complete pulley
14.4 Hoist gear
Low maintenance.
Oil and grease life of the gear and of ball bearings is designed for the first safe operating period (S.W.P.)
of the chain hoist.
Shorter maintenance intervals for particularly difficult operating conditions, e.g. increased dust and
pollution loads or constant operation of the hoist with the highest load
Lubricant: synthetic, viscosity VG 220
A = Oil fill in or drain plug

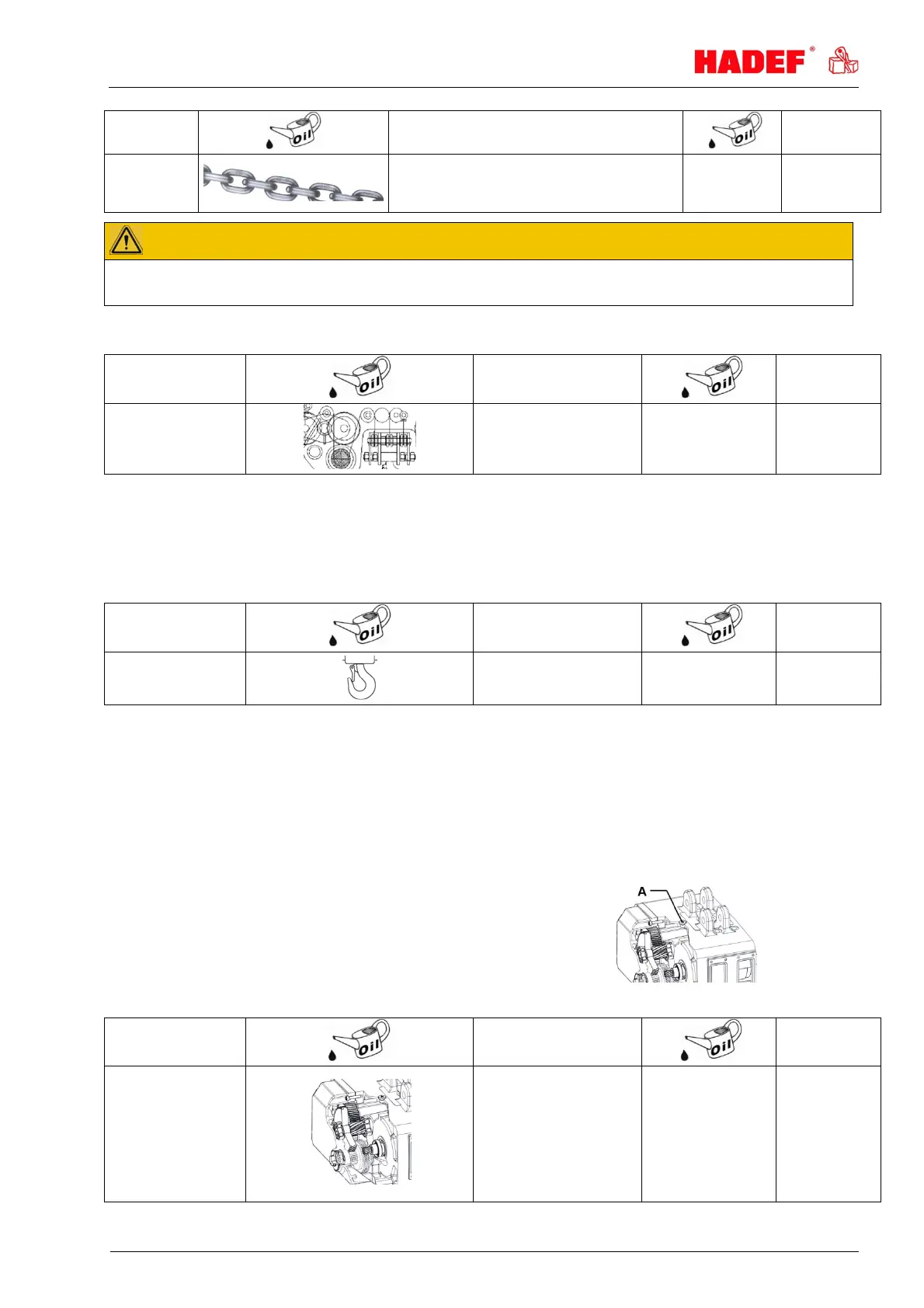

Illustration 21
Use
Recommendation
Interval
Load chain
oil for example: FUCHS RENOLIN PG 220
or special chain lubricant
Use NO grease!
0,2 l 3 month
Use
Recommendation
Interval
Pulleys
FUCHS
RENOLIN PG220
Acc. to demand 12 month
Use
Recommendation
Interval
Load hook
bearing
FUCHS
RENOLIN PG220
Acc. to demand 12 month
Use
Recommendation
Interval
Spur gear
FUCHS
RENOLIN PG 220
125kg/1 = 1,1 l
250kg/1 = 1,1 l
500kg/1 = 1,1 l
1000kg/2 = 1,1 l
1000kg/1 = 1,6 l
2000kg/2 = 1,6 l
Exchange
lubricant
all 3 years
