SETUP & PROGRAMMING
4 1 4 2
Output Programmability & Miscellaneous
All of the relays & outputs on the control panel’s main circuit board (TPC-A01) have default functions, i.e.
operate on fi re or fault. The function for each of these outputs, however, can be changed. The outputs can
also be programmed to have different responses for selected zones.
Before any programming can be applied to the main circuit board outputs, they must fi rst be made
programmable using this mode.
Mode 4-1-4-2 also has 2 other miscellaneous functions, these are:
Set Fault Latching - This sets the latching of all faults on the panel. A useful tool for capturing any random
or intermittent faults.
Invert Fault Output - The switched -ve fault output on the main circuit board usually appears when a fault
is present. This can be inverted so that the output is constant and dissapears when a fault occurs, for fail
safe operation.
To set either of the two miscellaneous options above or to make outputs programmable, enter the above
code and press ENTER.
The fi re zone 1 LED will now pulse to indicate the setting of attribute 1 (fault latching).

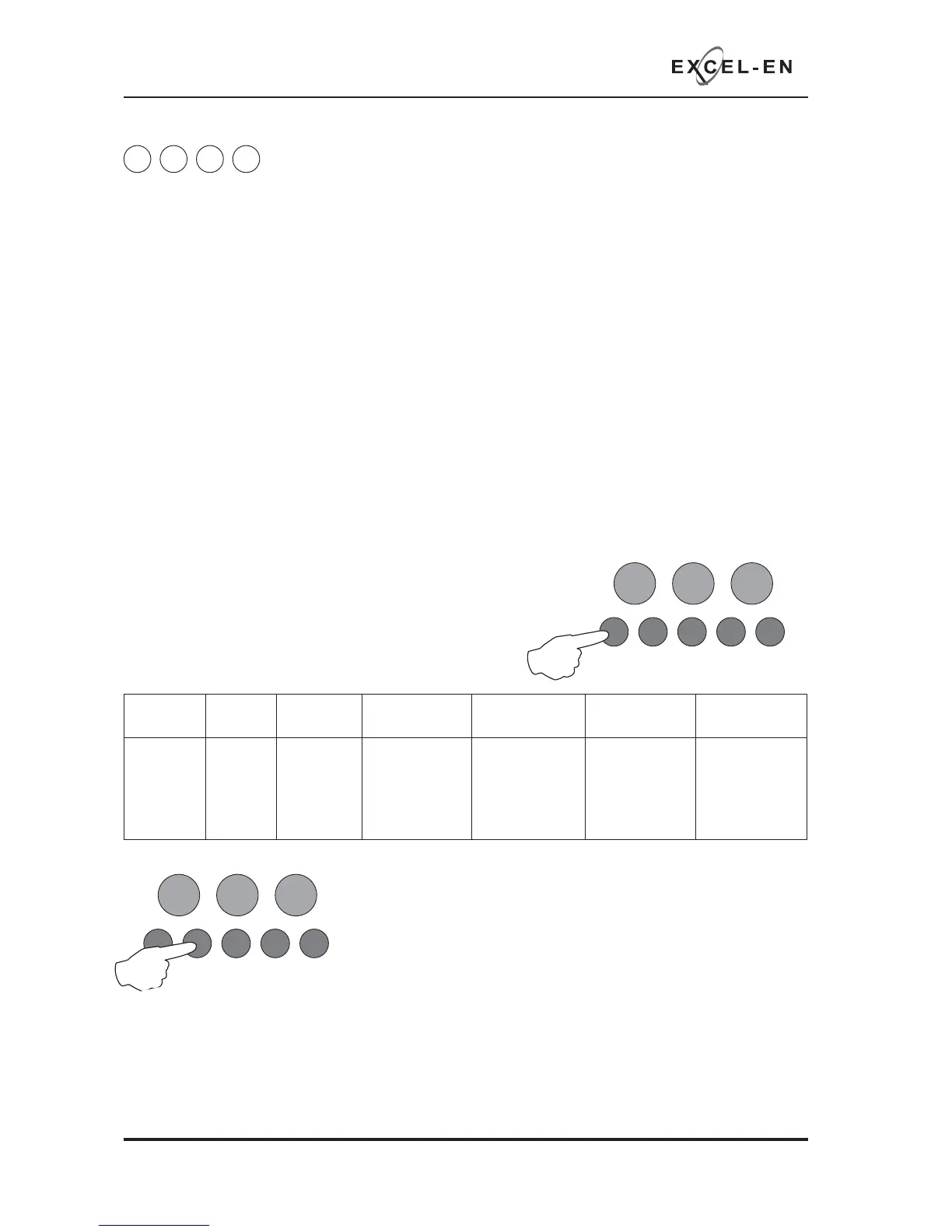

Use button 1 to scroll to the attribute that requires setting,
inidicated by a pulsing fi re LED 1 - 6 as per table below.
The setting of the attribute is indicated by the amber, fault
LED, ON or OFF.
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
With the required fi re LED pulsing, use button 2 to switch the attribute
ON or OFF (amber, fault LED, ON or OFF).
When fi nished, press and hold Button 1 for 3 seconds to save setting and exit programming mode
Enter the next programming code or disable the controls and return DIL switch 3 to ‘OFF’.
Fire LED
(pulsing)
LED 1 LED 2 LED 3 LED 4 LED 5 LED 6
Attribute
Fault
latching
Invert Fault
Output
Fault Relay
Programmable
Fault Output
Programmable
Fire Relay
Programmable
Fire Output
Programmable
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
To Next Page
