Excel-EN Installation, Commissioning & Operating Manual Approved Document Ref: UI-XLEN-01 Issue 7.0
48
SETUP & PROGRAMMING
4 2 2 4
Output & Relay Network Responses
The Fire relays and switched negative outputs in the panel will, by default, activate continuously for any
fi re condition from the entire network.
The Fault relay and other switched negative outputs will also activate continuously, by default, if they have
been made programmable using programming option 4-1-4-2.
This option enables the default to be changed for each of the local relays and outputs. The response can
be either; CONTINUOUS, PULSING or NONE when a fi re condition is received from any other panel in the
network.

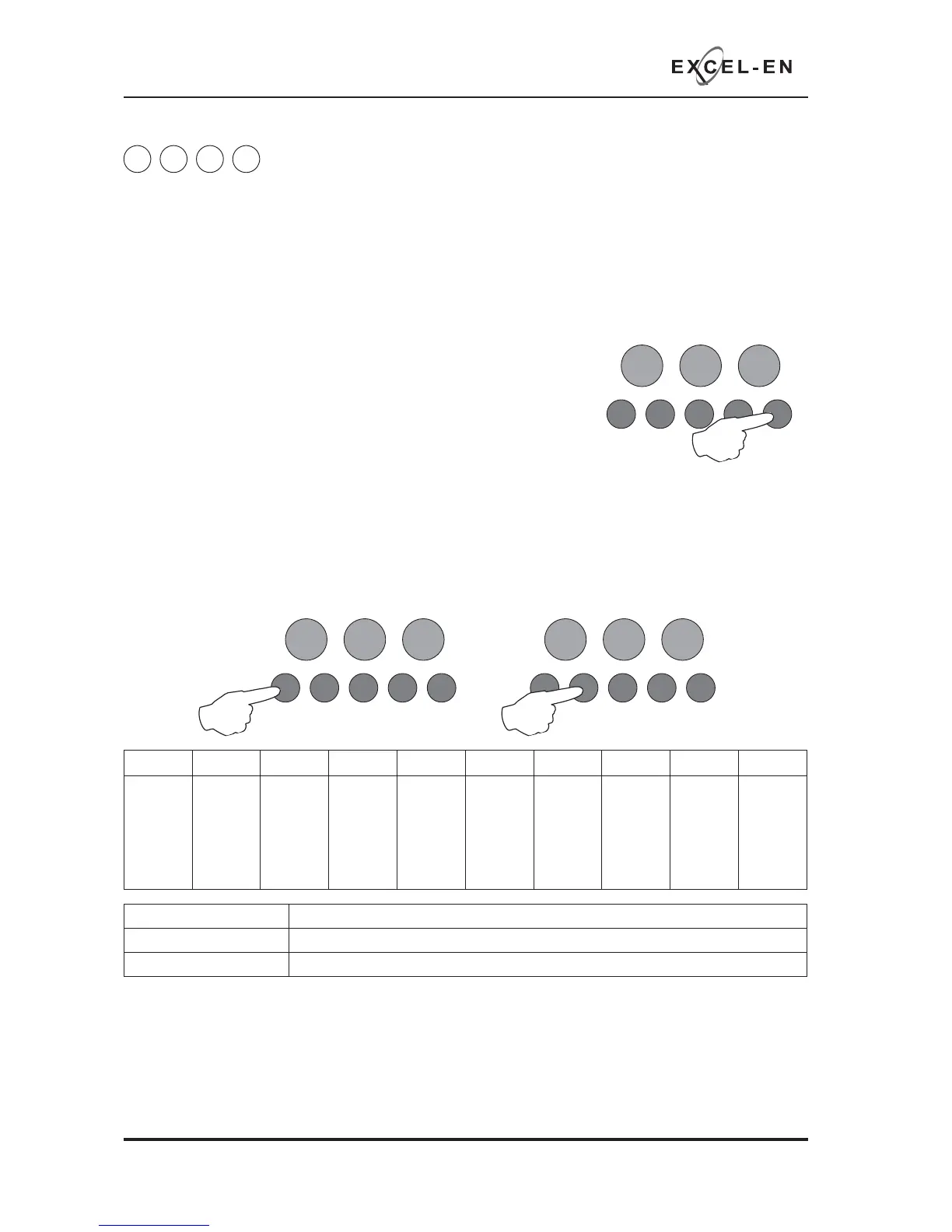

Enter the above code and press the ENTER button.
The zone 1 fi re LED will pulse indicating setting the response for the Fire
relay on the main PCB.
The relays and outputs are represented by zone LEDs 1 - 10 as per table
below.
A pulsing red fi re LED indicates which relay or output is selected and the setting is represented by the
amber fault LED. See tables below.
Use button 1 to move the pulsing fi re LED to the required relay or output, then use button 2 to change
the response, indicated by the amber fault LED. Each press of button 2 will toggle through the 3 available
responses.
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
Amber LED ON Relay/output activates CONTINUOUSLY for other network panel fi res
Amber LED PULSING Relay/output PULSES for other network panel fi res
Amber LED OFF Relay/output NO RESPONSE for other network panel fi res
When fi nished, press and hold Button 1 for 3 seconds to save setting and exit programming mode.
Note:- The relay and output responses to a fi re condition from their own panel are set using programming
option 4-2-4-2.
If a local response has been programmed, consideration should also be given to the network response
which may affect it.
LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 LED 8 LED 9 LED 10
Fire
Relay
(Main
PCB)
Fault
Relay
(Main
PCB)
Fire O/P
(Main
PCB)
Fault
O/P
(Main
PCB)
OPA
Zone
ext card
1 (Zones
5 - 8)
OPB
Zone
ext card
1 (Zones
5 - 8)
Aux
Relay
Zone
ext card
1 (Zones
5 - 8)
OPA
Zone
ext card
2 (Zones
9 - 12)
OPB
Zone
ext card
2 (Zones
9 - 12)
Aux
Relay
Zone
ext card
2 (Zones
9 - 12)
